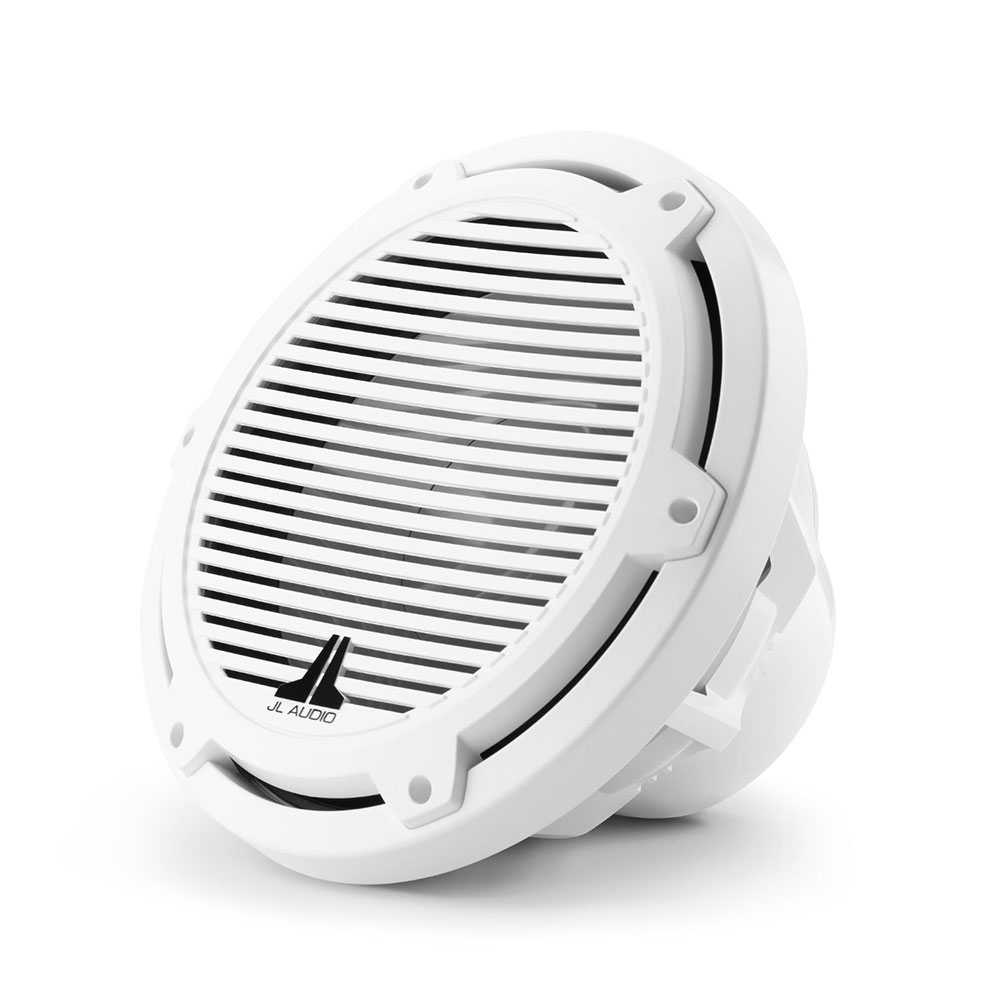

Τα JL Audio M3-10IB-C-GW-4 ειναι subwoofer θαλασσης 10" (για σκαφη, πισινες). Αντοχη 175 wrms και τοποθετειται σε  κλειστο κουτι. Γριλλια White Classic.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

Specifications

• Size 10"
• Color White Classic
• Physical dimensions Diameter 273 mm
• Physical dimensions Depth 165 mm
• Speaker type Infinite Baffle Subwoofer
• Continuous power handling (RMS) 175 W
• Sensitivity (SPL @ 1 W/1 m) 87.23 dB
• Nominal impedance 4 Ω
• Recommended amplifier power (RMS) 50-175 W
• Cone material Injection-molded, mica-filled polypropylene
• Warranty 3 years
• Speaker connections Spade Connectors
• Mounting depth clearance 127 mm
• Frontal grille protrusion 38 mm
• Mounting hole 225 mm
• Bolt hole circle 247 mm

Woofer Parameters

• Free Air Resonance (FS) 41.84 Hz
• Electrical “Q” (Qes) 0.806
• Mechanical “Q” (Qms) 11.751
• Total “Q” (Qts)    0.754
• Equivalent Compliance (Vas) 36.53 L
• One-way linear excursion (Xmax; specs are derived via one-way voice coil overhang method with no correction factors applied)    0.42" (10.7 mm)
• Reference Efficiency (NO) 0.34%
• Effective piston area (SD) 0.0327 m²
• DC resistance (RE) 3.957 Ω

Enclosure Specifications

• Wall thickness 0.75" (19 mm)
• Front baffle thickness 0.75" (19 mm)
• Volume (net int.) 2.00 cu ft (56.6 L)
• External width (W) 18" (457 mm)
• External height (H) 18" (457 mm)
• External depth (D) 14.5" (368 mm)
• -3 dB cutoff frequency (F3) 42.9 Hz
• System resonance (FC) 53.66 Hz
• System Q at resonance (QTC) 0.967
