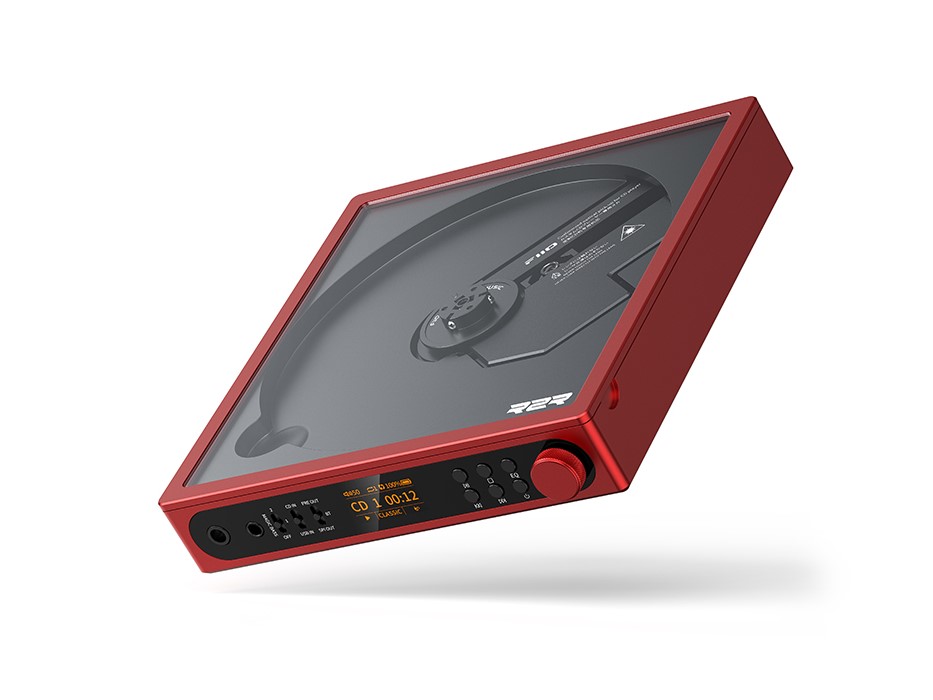

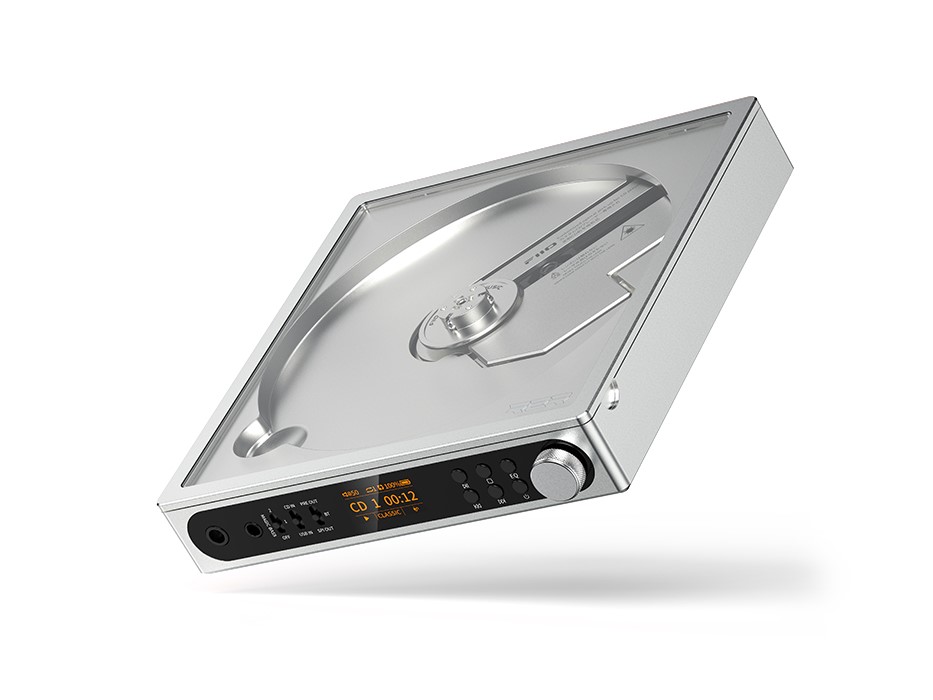

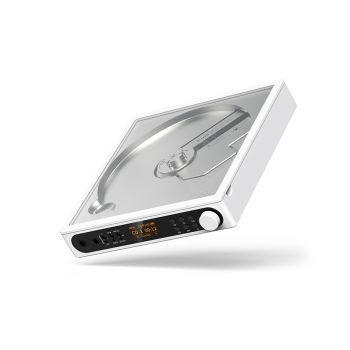

Το FiiO DM15 R2R ειναι ενα φορητο cd player (discman) με 24bit R2R DAC. Διαθετει ενσωματωμενη επαναφορτιζομενη μπαταρια, με Bluetooth transmitter για συνδεση με ακουστικα bluetooth. Ενσυρματοι εξοδοι ακουστικων 3.3mm και 4.4mm. Εξοδος USB-C για cd ripping σε laptop/pc. Εξοδος SPIDF coaxial/optical.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

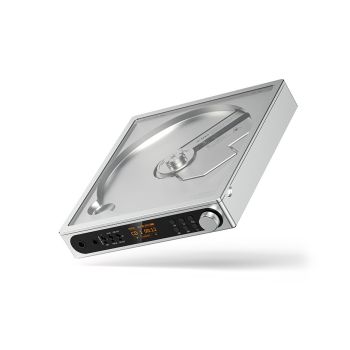

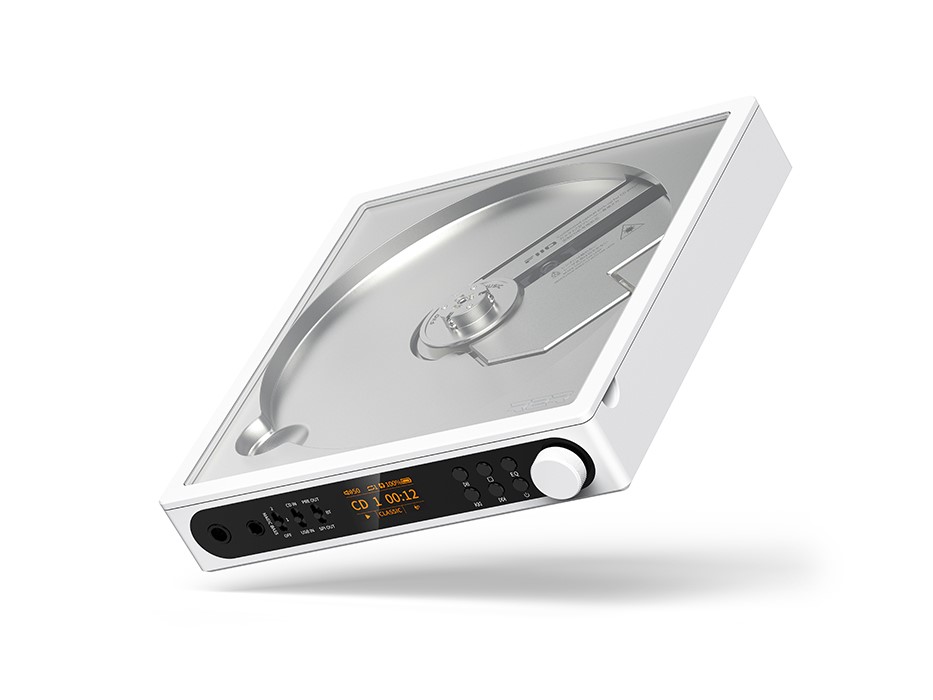

The FiiO DM15 R2R is a breakthrough portable CD player that brings vintage-era CD listening into the modern age, combining a high-fidelity 24-bit R2R DAC architecture, desktop-grade power performance and multi-output connectivity inside a compact chassis. Designed for audiophiles who want authentic CD audio, the FiiO DM15 R2R uniquely integrates a true fully differential 24-bit R2R resistor array DAC using 192 precision resistors, delivering warm, analogue-style sound reproduction with exceptional detail retrieval and low distortion. This R2R DAC, together with FPGA conversion and a proprietary MCU controller, ensures every note from the CD is decoded with accuracy and musicality.

Compared to the previous generation, the DM15 R2R is slimmer by 2 mm while dramatically increasing audio drive capabilities, delivering up to 315 mW + 315 mW single-ended output power and up to 1150 mW + 1150 mW balanced desktop-grade output, allowing the FiiO DM15 R2R to drive demanding over-ear headphones with ease. A patented Desktop Mode bypasses the internal battery for stationary use, protecting battery life over years of playback. With a 4700 mAh high-voltage pure cobalt lithium battery, users can still enjoy up to 7 hours of continuous portable CD listening.

The FiiO DM15 R2R is much more than a CD player – it is a complete digital hub. It functions as a Hi-Fi-grade USB DAC supporting up to 384 kHz/32-bit and DSD256, turning computers, smartphones and tablets into high-resolution music sources. It also features a Bluetooth 5.4 transmitter using Qualcomm QCC3095, supporting aptX, aptX Adaptive, aptX HD and SBC, meaning CDs can be wirelessly streamed to Bluetooth headphones or Bluetooth speakers. The DM15 R2R even supports USB CD ripping, allowing users to rip CDs to WAV format while listening, preserving favourite albums and sharing them easily.

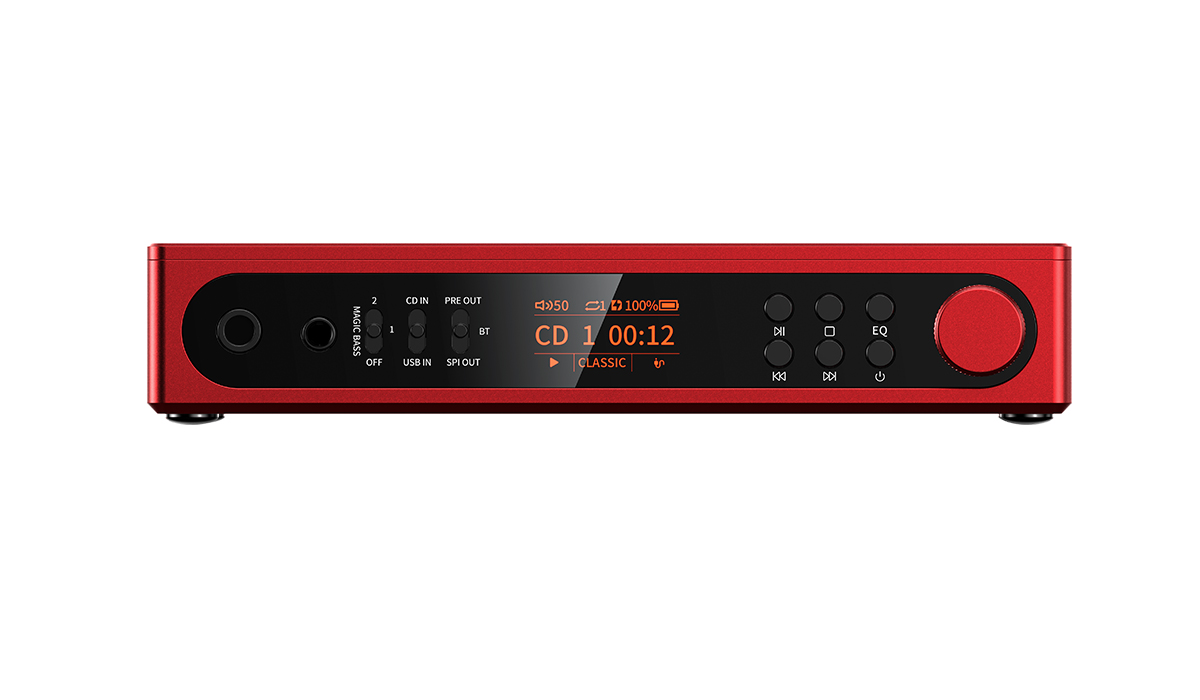

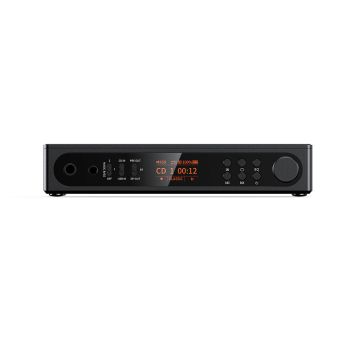

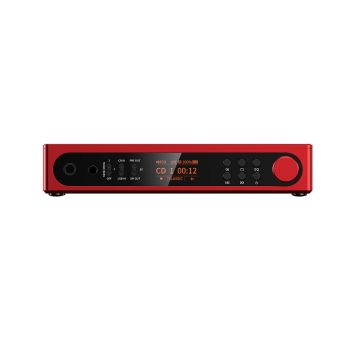

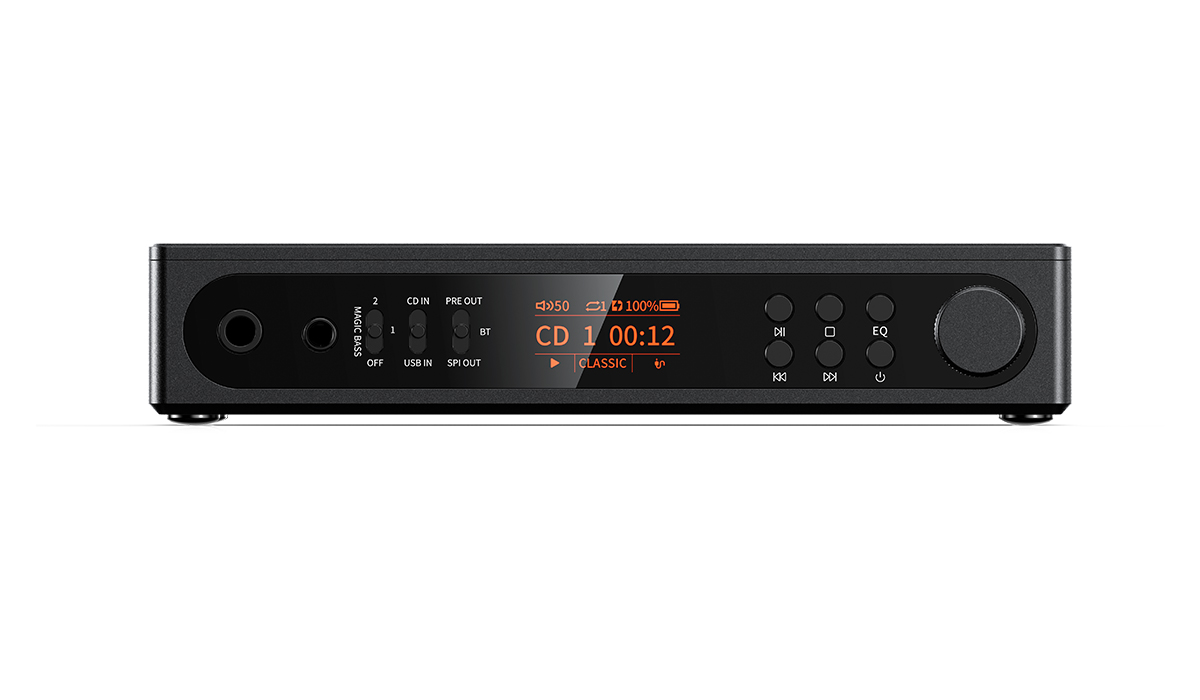

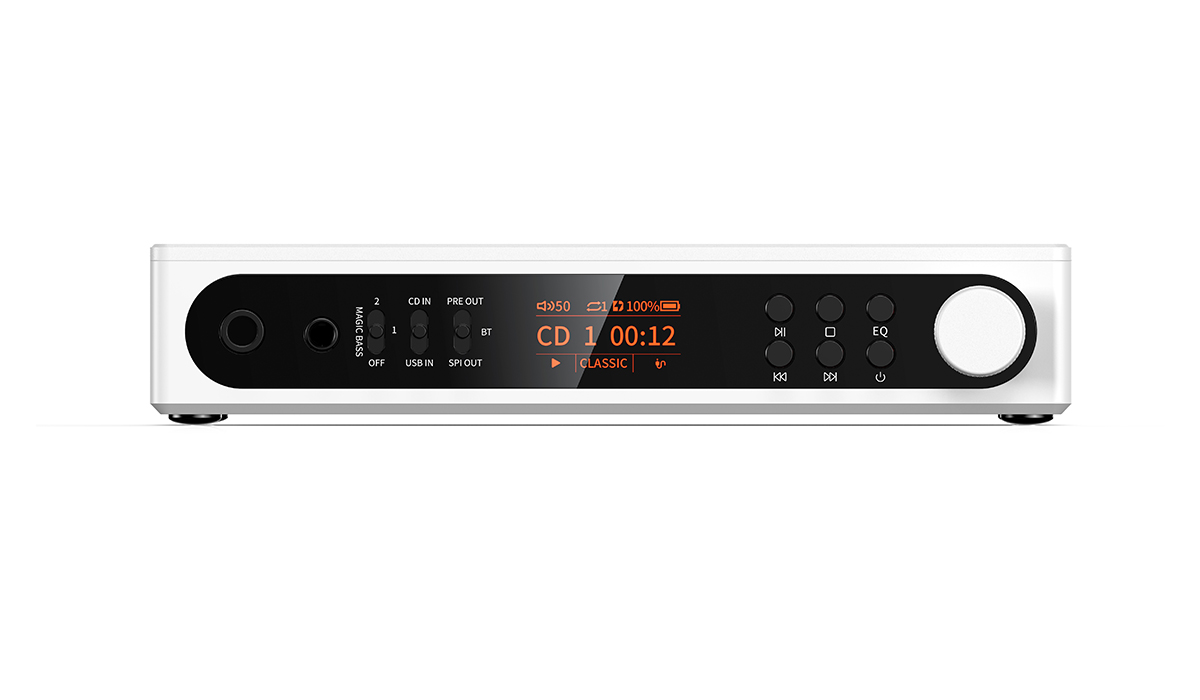

Designed with usability in mind, the FiiO DM15 R2R includes a retro-style orange TFT display, mechanical controls, infrared remote, 24 global sound presets, selectable BASS modes and ESP anti-skip protection. Outputs include 3.5 mm headphone, 4.4 mm balanced headphone, 3.5 mm LO and digital coaxial/optical outputs. Whether used as a portable transport, a desktop CD source, a Bluetooth CD streamer or a USB DAC, the FiiO DM15 R2R stands apart as the most versatile portable CD player in its class.

Specifications

• General Specifications
  • Name/Model: DM15 R2R
  • Hardware Scheme: Master control GD32F305RET6; Op-amp SGM8262 ×2; DAC Feiao self-developed R2R DAC; Bluetooth QCC3095; USB chip SPV5048
  • Working Mode
    • CD playback
    • USB DAC mode
    • Bluetooth transmitter mode
  • Color
    • White
    • Black
    • Red
    • Silver
  • Weight: about 471.5 g
  • Product Size: about 144 × 137 × 25.5 mm (not including foot pads and knobs)
  • Volume Control Type: button control
  • Screen: 0.96″ (80 × 160) LCD
  • Bald Head: custom bald head
  • Movement: custom movement
  • Recommended Headset Impedance
    • PO: 8 – 350 Ω
    • BAL: 8 – 350 Ω

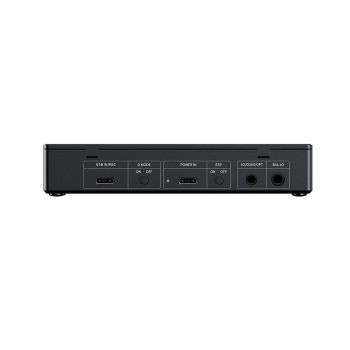

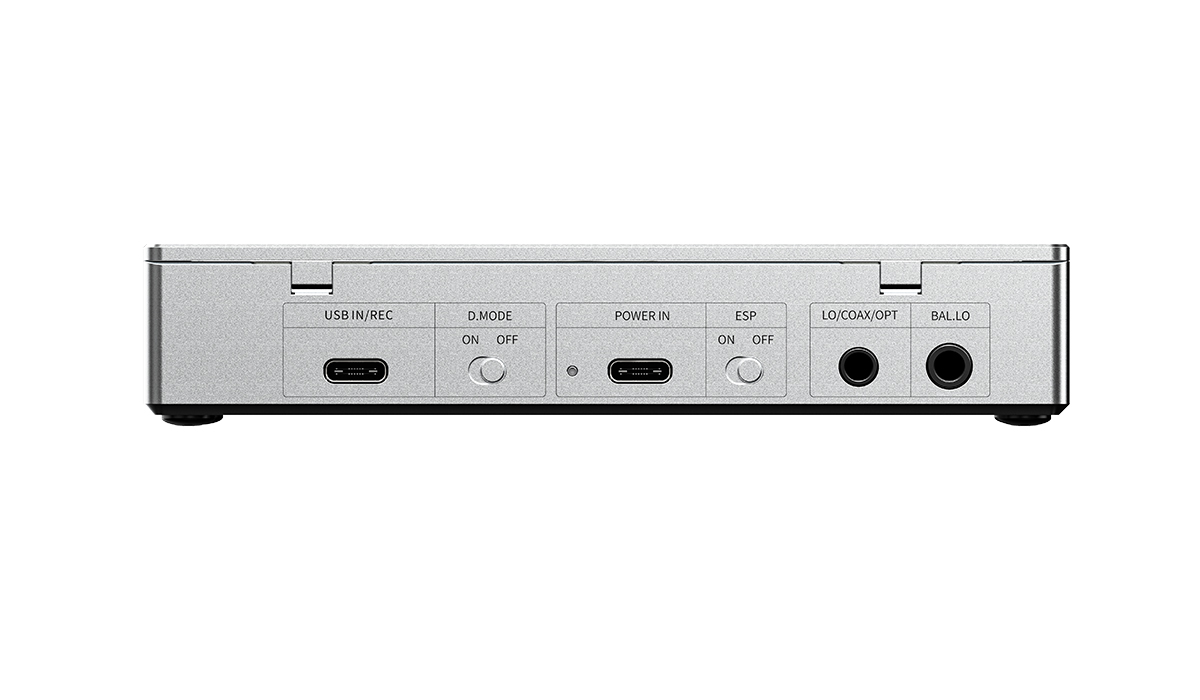

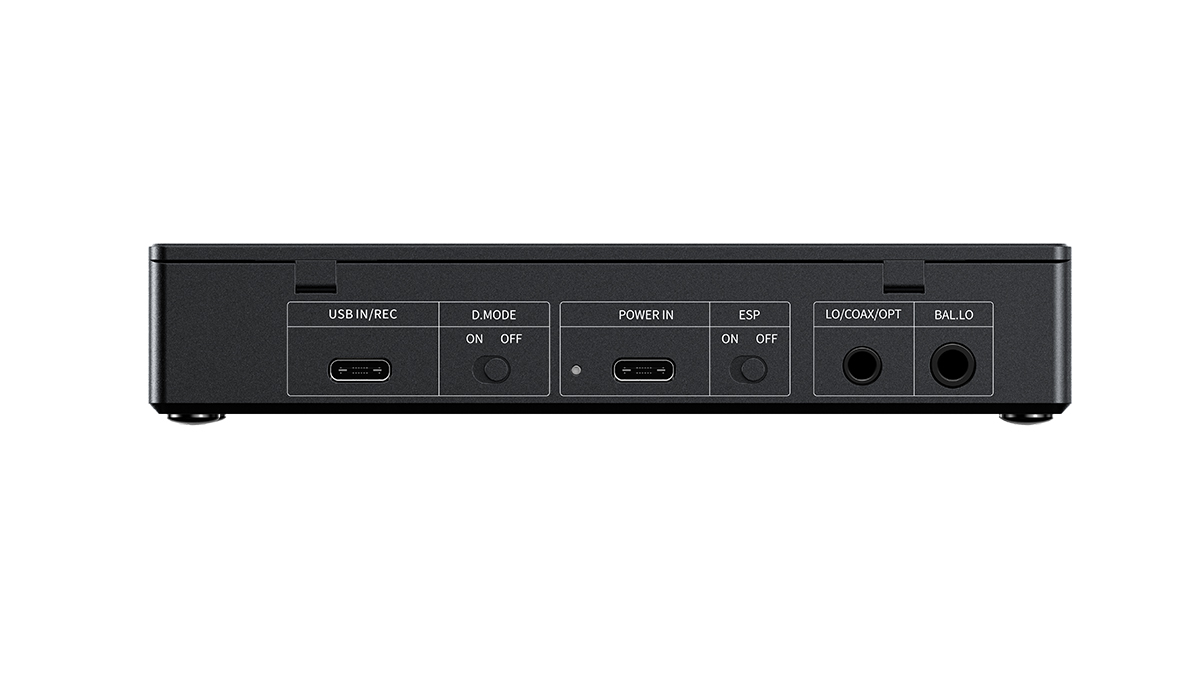

• Keys and Interfaces
  • Keys: Power ×1; Stop ×1; Play/Pause ×1; Previous ×1; Next song ×1; EQ button ×1
  • USB
    • Type-C USB2.0 ×1 (data transfer)
    • Type-C POWER IN ×1 (charging/independent power supply)
  • Headphone Output Interface: 3.5 mm socket
  • Balanced Output Interface: 4.4 mm socket
  • Line Output Interface: 3.5 mm socket
  • Balanced Line Output Interface: 4.4 mm socket
  • Coaxial Output Interface: 3.5 mm socket (shared with LO port)
  • Optical Output Interface: 3.5 mm socket (shared with LO port)
  • Ripple Switches
    • Input switch button ×1
    • Output switch button ×1
    • BASS switch ×1
    • ESP switch ×1
    • D.MODE switch ×1
• Features
  • Bluetooth Transmitter (5.4)
    • SBC
    • aptX
    • aptX-HD
    • aptX-LL
    • aptX-Adaptive
  • Operation Mode: button/knob operation
  • BASS
    • OFF
    • 1
    • 2
  • Timing Shutdown: support
  • EQ Adjustment: built-in 8 preset EQ modes
  • Drive-free Mode: support
  • Maximum Supported Sampling Rate
    • USB DAC: up to 384 kHz / 32 bit; DSD256 (Native)
    • Coaxial output: up to 192 kHz / 24 bit
    • Optical output: up to 96 kHz / 24 bit
  • Firmware Upgrade
    • USB upgrade
    • Local upgrade
• Power Parameters
  • Power: PD2.0 / PD3.0 fast charge supported
  • Charging Time: about 2 hours (PD3.0)
• CD Endurance and Test Conditions
  • 3.5 mm headphone output: 7 hours (Volume 59, BASS OFF, Screen off, ESP ON, EQ off, D.MODE OFF, 32 Ω)
  • 4.4 mm balanced output: 7 hours (Volume 53, BASS OFF, Screen off, ESP ON, EQ off, D.MODE OFF, 32 Ω)
• USB Decoding Life and Test Conditions
  • 3.5 mm headphone output: 11 hours (Volume 59, BASS OFF, Screen off, ESP OFF, EQ off, D.MODE OFF, 32 Ω)
  • 4.4 mm balanced output: 10.5 hours (Volume 53, BASS OFF, Screen off, ESP OFF, EQ off, D.MODE OFF, 32 Ω)
• Audio Parameters – Headphone Output (3.5 mm, USB DAC)
  • OS mode, Taiwan mode
    • Output Power: ≥575 mW + 575 mW (16 Ω); ≥315 mW + 315 mW (32 Ω); ≥35 mW + 35 mW (300 Ω)
    • Output Impedance: <1 Ω
    • Channel Separation: ≥72 dB
    • Peak Output Voltage: 9.5 Vp-p
    • SNR: ≥111 dB (A-weighted)
    • THD+N: <0.025% (1 kHz / -6 dB @ 32 Ω)
    • Frequency Response: 20 Hz – 80 kHz (attenuation <2.9 dB); 20 Hz – 20 kHz (attenuation <0.2 dB)
    • Noise Floor: <8.7 μV (A-weighted)
    • Dynamic Range: ≥106 dB (A-weighted)
  • OS mode
    • Output Power: ≥405 mW + 405 mW (16 Ω); ≥220 mW + 220 mW (32 Ω); ≥25 mW + 25 mW (300 Ω)
    • Output Impedance: <1 Ω
    • Channel Separation: ≥72 dB
    • Peak Output Voltage: 7.9 Vp-p
    • SNR: ≥111 dB (A-weighted)
    • THD+N: <0.025% (1 kHz / -6 dB @ 32 Ω)
    • Frequency Response: 20 Hz – 80 kHz (attenuation <2.9 dB); 20 Hz – 20 kHz (attenuation <0.2 dB)
    • Noise Floor: <7.5 μV (A-weighted)
    • Dynamic Range: ≥106 dB (A-weighted)
• Audio Parameters – Balanced Headphone Output (4.4 mm, USB DAC)
  • OS mode, Taiwan mode
    • Output Power: ≥480 mW + 480 mW (16 Ω); ≥1150 mW + 1150 mW (32 Ω); ≥145 mW + 145 mW (300 Ω)
    • Output Impedance: <1.5 Ω
    • Channel Separation: ≥100 dB
    • Peak Output Voltage: 18.8 Vp-p
    • SNR: ≥112 dB (A-weighted)
    • THD+N: <0.025% (1 kHz / -6 dB @ 32 Ω)
    • Frequency Response: 20 Hz – 70 kHz (attenuation <3 dB); 20 Hz – 20 kHz (attenuation <0.3 dB)
    • Noise Floor: <14.7 μV (A-weighted)
    • Dynamic Range: ≥107 dB (A-weighted)
  • OS mode
    • Output Power: ≥545 mW + 545 mW (16 Ω); ≥815 mW + 815 mW (32 Ω); ≥100 mW + 100 mW (300 Ω)
    • Output Impedance: <1.5 Ω
    • Channel Separation: ≥100 dB
    • Peak Output Voltage: 15.8 Vp-p
    • SNR: ≥112 dB (A-weighted)
    • THD+N: <0.025% (1 kHz / -6 dB @ 32 Ω)
    • Frequency Response: 20 Hz – 80 kHz (attenuation <2.9 dB); 20 Hz – 20 kHz (attenuation <0.2 dB)
    • Noise Floor: <12.7 μV (A-weighted)
    • Dynamic Range: ≥107 dB (A-weighted)
• Line Output Performance (USB DAC)
  • Single-Ended Line Out (3.5 mm)
    • OS mode, Taiwan mode: Line output level 3.3 Vrms; THD+N <0.025%; SNR ≥111 dB; Channel separation ≥100 dB
    • OS mode: Line output level 2.8 Vrms; THD+N <0.025%; SNR ≥111 dB; Channel separation ≥100 dB
  • Balanced Line Out (4.4 mm)
    • OS mode, Taiwan mode: Line output level 6.5 Vrms; THD+N <0.025%; SNR ≥112 dB; Channel separation ≥108 dB
    • OS mode: Line output level 5.4 Vrms; THD+N <0.024%; SNR ≥112 dB; Channel separation ≥108 dB
• Audio Parameters – CD Playback (Headphone/Line Out)
  • 3.5 mm Headphone Out
    • OS mode, Taiwan mode: Output power ≥575 mW + 575 mW (16 Ω); ≥315 mW + 315 mW (32 Ω); ≥35 mW + 35 mW (300 Ω); SNR ≥110 dB; THD+N <0.028% (1 kHz / 0 dB @ 32 Ω); Dynamic range ≥94 dB; Frequency response 20 Hz – 20 kHz (attenuation <1.5 dB)
    • OS mode: Output power ≥405 mW + 405 mW (16 Ω); ≥220 mW + 220 mW (32 Ω); ≥25 mW + 25 mW (300 Ω); SNR ≥109 dB; THD+N <0.027% (1 kHz / 0 dB @ 32 Ω); Dynamic range ≥94 dB; Frequency response 20 Hz – 20 kHz (attenuation <1.5 dB)
  • 4.4 mm Balanced Headphone Out
    • OS mode, Taiwan mode: Output power ≥480 mW + 480 mW (16 Ω); ≥1150 mW + 1150 mW (32 Ω); ≥145 mW + 145 mW (300 Ω); SNR ≥112 dB; THD+N <0.030% (1 kHz / 0 dB @ 32 Ω); Dynamic range ≥94 dB; Frequency response 20 Hz – 20 kHz (attenuation <1.5 dB)
    • OS mode: Output power ≥490 mW + 490 mW (16 Ω); ≥810 mW + 810 mW (32 Ω); ≥100 mW + 100 mW (300 Ω); SNR ≥110 dB; THD+N <0.029% (1 kHz / 0 dB @ 32 Ω); Dynamic range ≥94 dB; Frequency response 20 Hz – 20 kHz (attenuation <1.5 dB)
  • Line Out
    • Single-ended (3.5 mm)
      • OS mode, Taiwan mode: Line output level 3.3 Vrms; THD+N <0.028%; SNR ≥110 dB; Channel separation ≥100 dB; Dynamic range ≥94 dB; Frequency response 20 Hz – 20 kHz (attenuation <1.5 dB)
      • OS mode: Line output level 2.8 Vrms; THD+N <0.027%; SNR ≥110 dB; Channel separation ≥100 dB; Dynamic range ≥94 dB; Frequency response 20 Hz – 20 kHz (attenuation <1.5 dB)
    • Balanced (4.4 mm)
      • OS mode, Taiwan mode: Line output level 6.5 Vrms; THD+N <0.029%; SNR ≥110 dB; Channel separation ≥104 dB; Dynamic range ≥94 dB; Frequency response 20 Hz – 20 kHz (attenuation <1.5 dB)
      • OS mode: Line output level 5.4 Vrms; THD+N <0.029%; SNR ≥110 dB; Channel separation ≥104 dB; Dynamic range ≥94 dB; Frequency response 20 Hz – 20 kHz (attenuation <1.5 dB)
