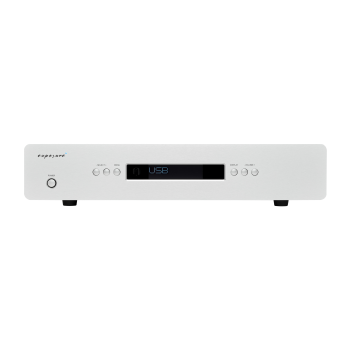

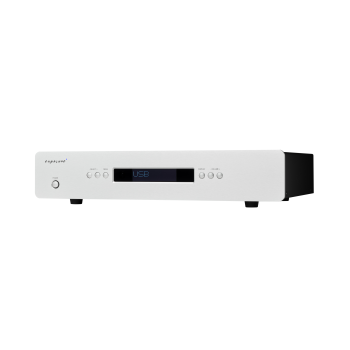

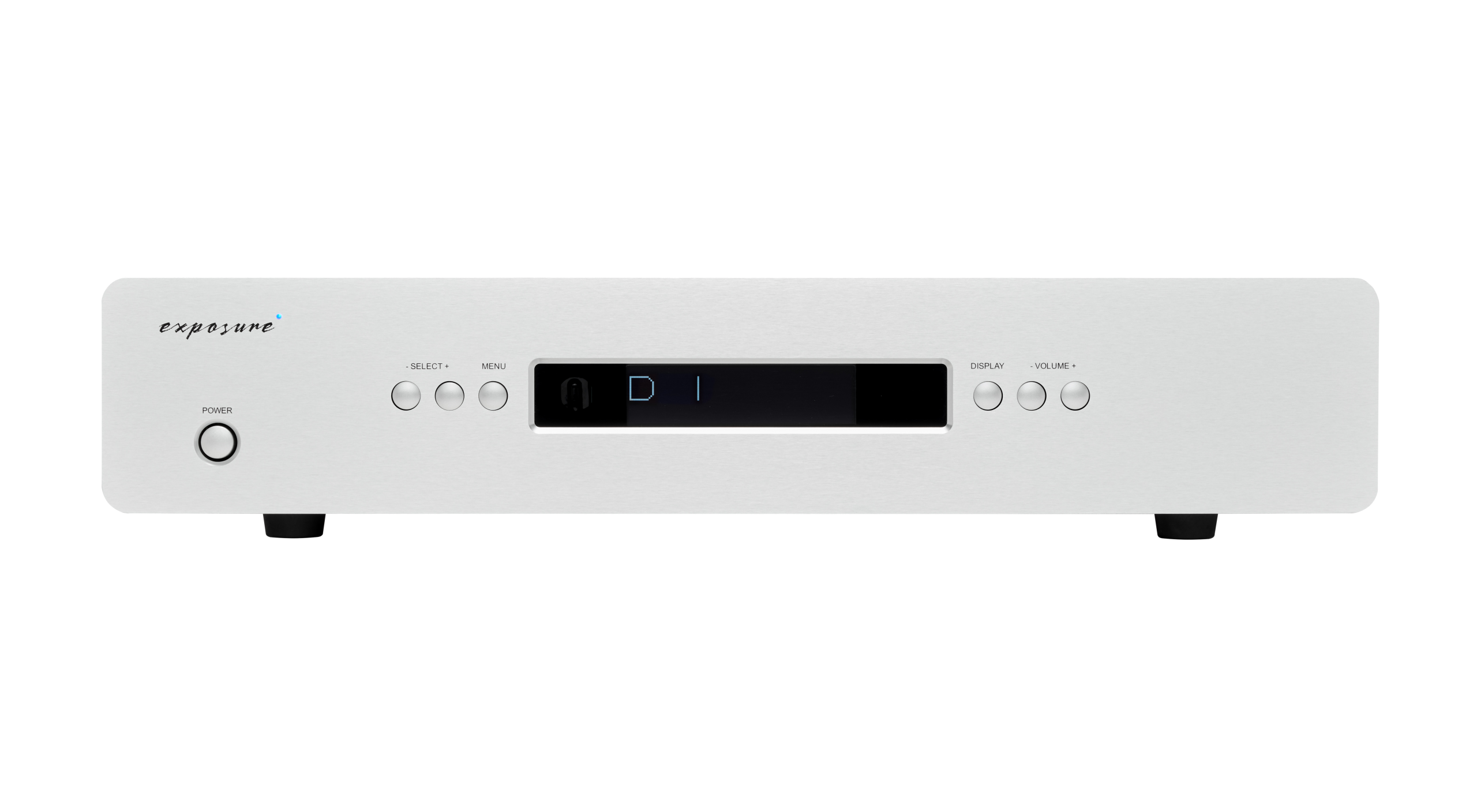

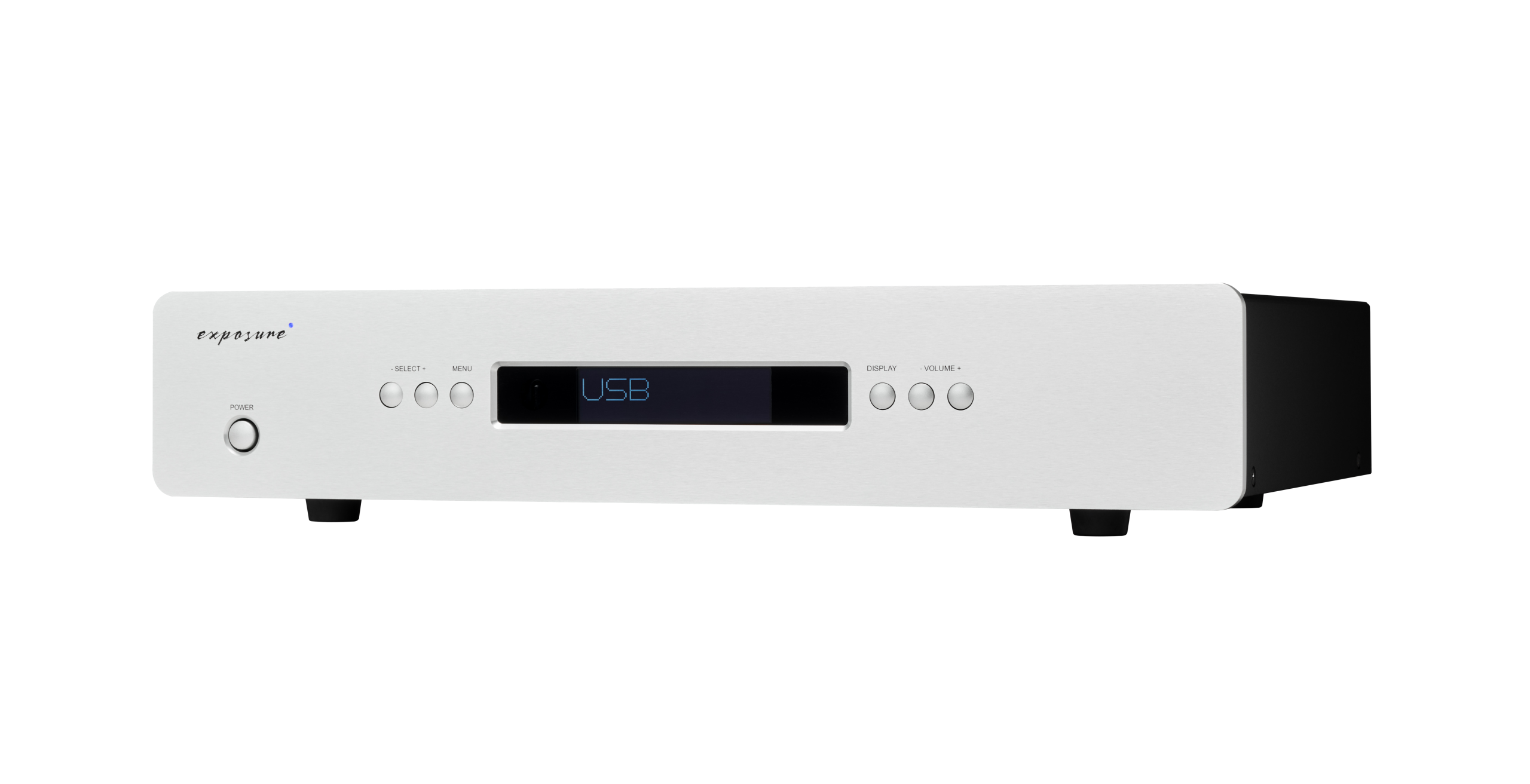

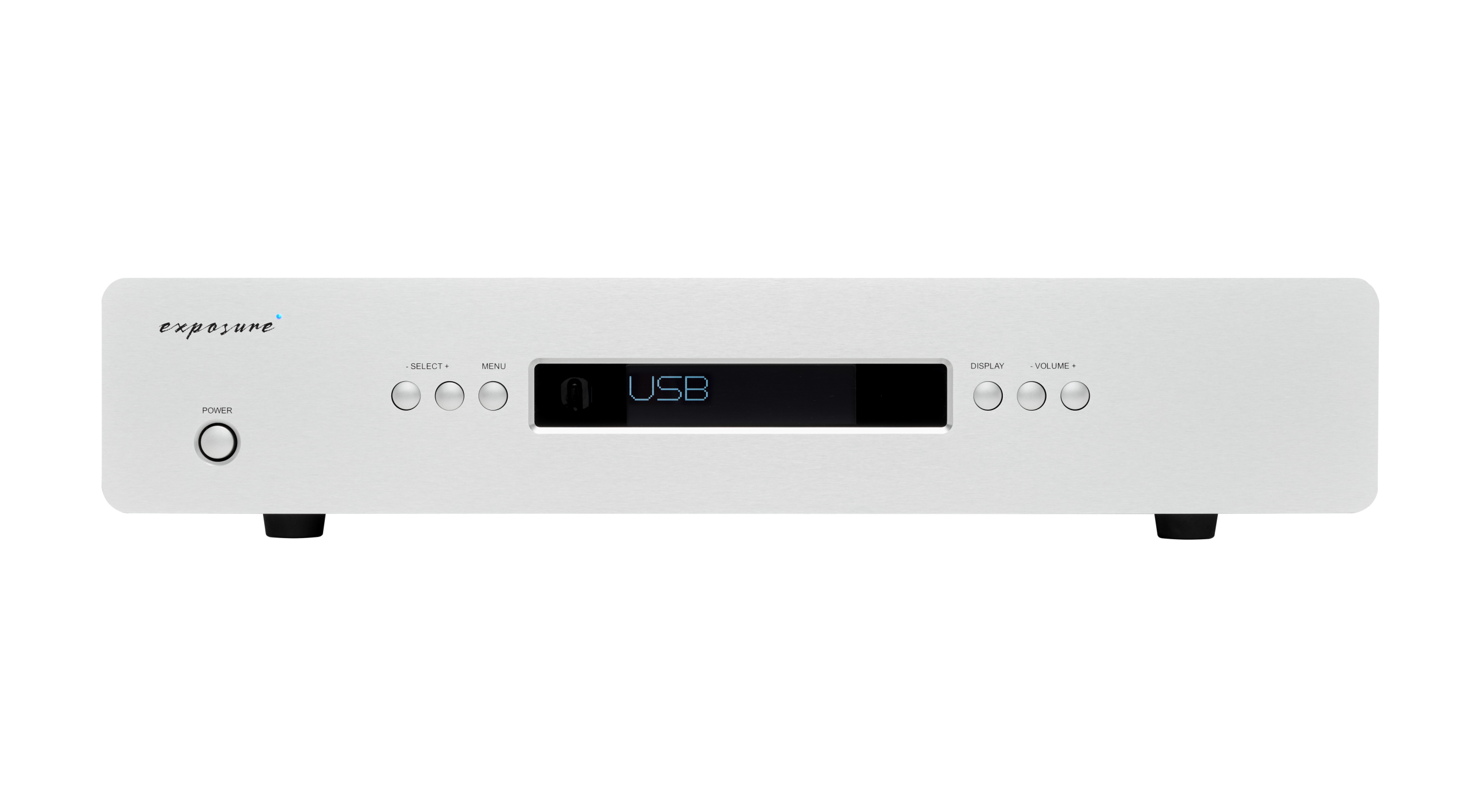

Το Exposure DAC, ειναι ψηφιοαναλογικος μετατροπεας και προενισχυτης, για αρχεια PCM via SPDIF (32kHz to 192kHz), PCM via USB (32bit 44.1kHz – 768kHz) και DSD via USB (x64 – x256). Εισοδοι: 2x Coaxial RCA, 3x Coaxial BNC, 2x Optical, 1x USB-B. Εξοδοι: 1x pair RCA και 1x pair XLR. Made in England.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων, ανταλλαγων.

Key Features

• Digital Precision, Analogue Soul - With support for high-resolution PCM and DSD formats, this DAC unlocks every detail in your music, from the softest nuance to the boldest crescendo.
• Flexible Connections - Featuring 7 SPDIF inputs plus USB up to 768kHz/32-bit and DSD256, you can connect virtually any digital source, from streamers and CD transports to computers.
• Direct to Power Amps - Thanks to a 99-step digital volume control, the DAC can connect directly to your power amplifier, eliminating the need for a separate pre-amp. Choose variable output for flexible volume control, or fixed output for a traditional setup.
• Silent Performance - A custom toroidal transformer with hum shield and low-noise power supply design ensure an ultra-quiet background, so all you hear is the music.
• Elegant Casework - The all-aluminium chassis not only looks stunning but also controls resonance and shields against stray electromagnetic fields, keeping performance pure.
• Ease of Use - A white OLED display with adjustable brightness, a handy remote control, and customisable power-on volume settings make operation intuitive and convenient.

Features

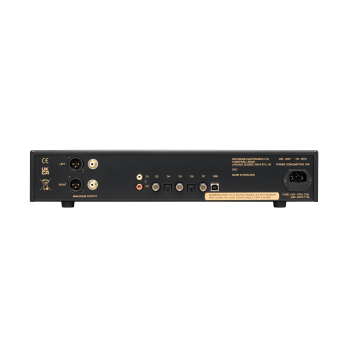

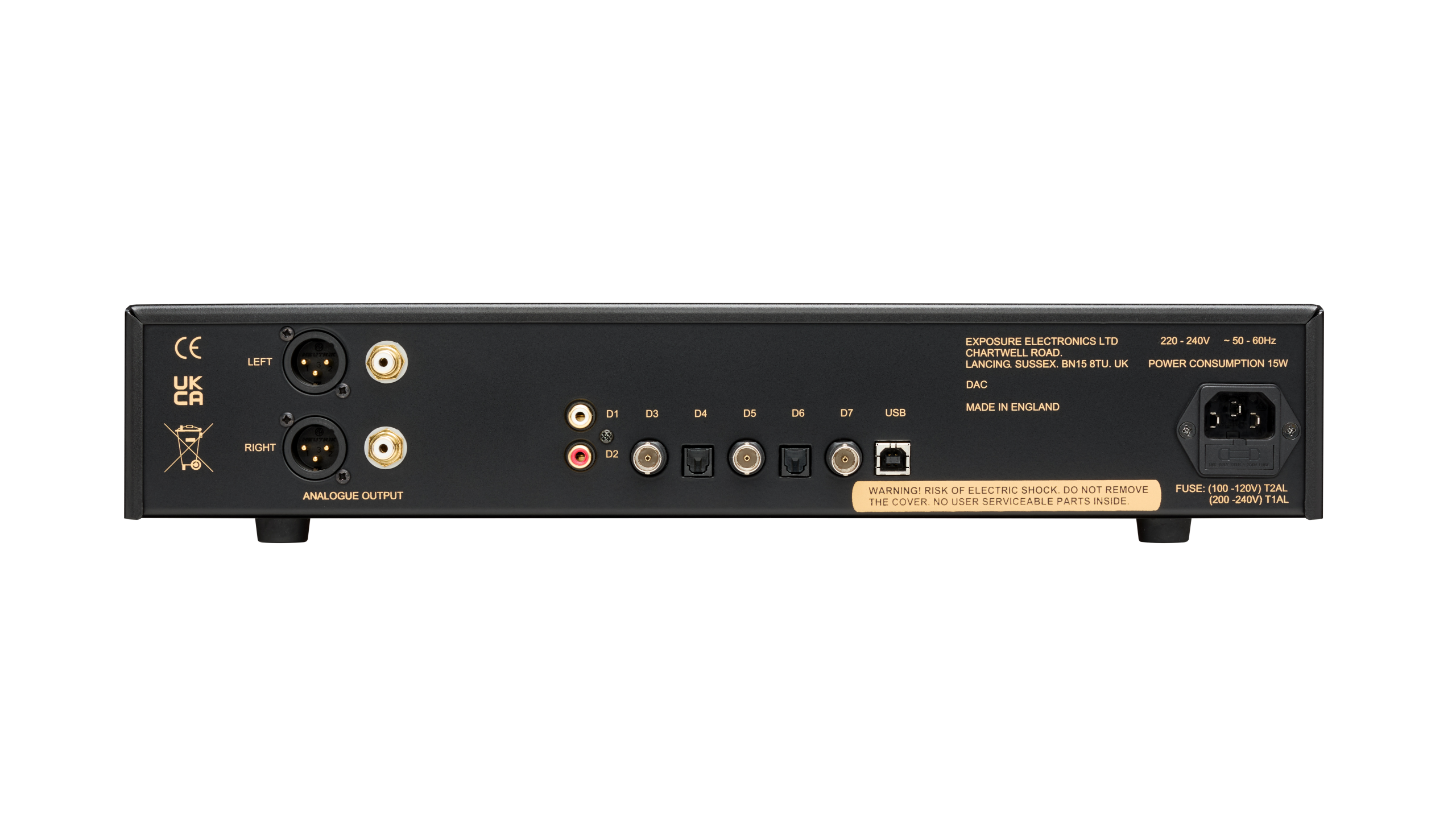

• 7x SPDIF (2x Coaxial RCA, 3x Coaxial BNC, 2x Optical) Inputs supporting sample rates PCM from 32kHz to 192kHz
• 1x USB-B Input capable of 44.1kHz – 768kHz PCM (up to 32-bit) and DSD x64 – x256
• Output options:
  • RCA: 2.1V fixed or up to 4.8V variable
  • XLR: 4.2V fixed or up to 9.4V variable

Specifications

• SPDIF inputs 7 inputs, sample rates 32KHz – 192KHz PCM
• USB input 44.1KHz – 768KHz up to 32 bits PCM sample rate. DSD x64 – 256
• Output level Unbalanced, 2.1V fixed or 4.8V maximum volume
• Balanced, 4.2V fixed or 9.4V maximum volume
• Output impedance 50 Ohms at 1KHz
• Total harmonic distortion <0.0025% at 2.1V RMS at 1KHz output
• Frequency response 20Hz – 20KHz ± 0.2dB
• Signal to noise ratio >115dB ref 2.1V RMS output at 1KHz
• Channel separation 20Hz – 20KHz, > -100dB
• Mains supply 110/120V or 220/240V at 50/60Hz (factory set)
• Power consumption 15W
• Dimensions (HxWxD) 90mm x 440mm x 300mm
• Weight Net 7kg
