Ο FiiO Air Amp ειναι ψηφιακος δικαναλος streaming ενισχυτης 2x90w/8Ω THD+N <1%. Εισοδοι: 1x USB-C 2.0, 1x Coaxial RCA, 1x Optical, 1x RCA line input, Bluetooth. Εξοδοι: 1x 3.5mm Preout, 1x RCA Sub, 1x pair Speakers. Υποστηριζει QPlay, AirPlay και ειναι Roon Ready.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

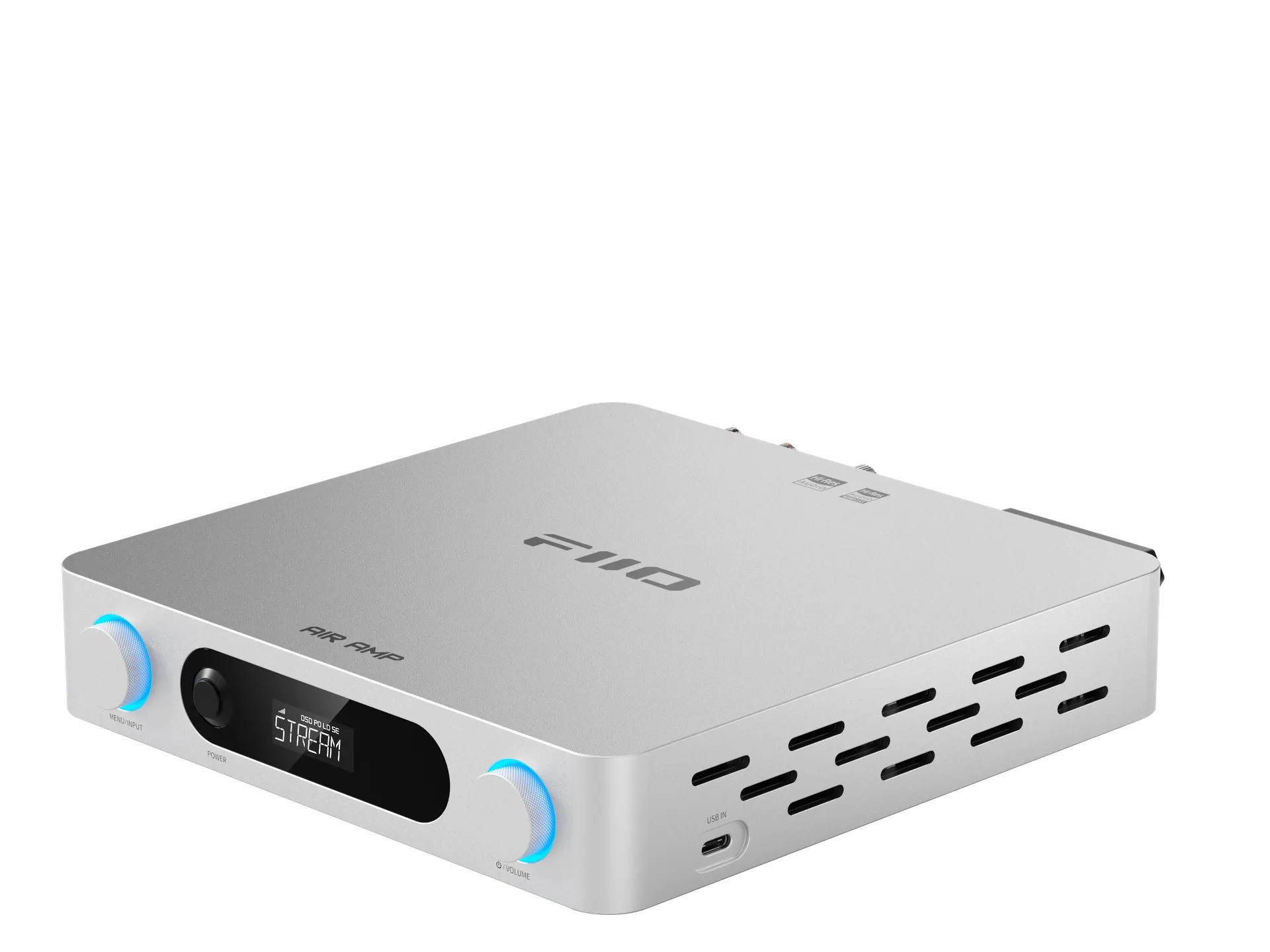

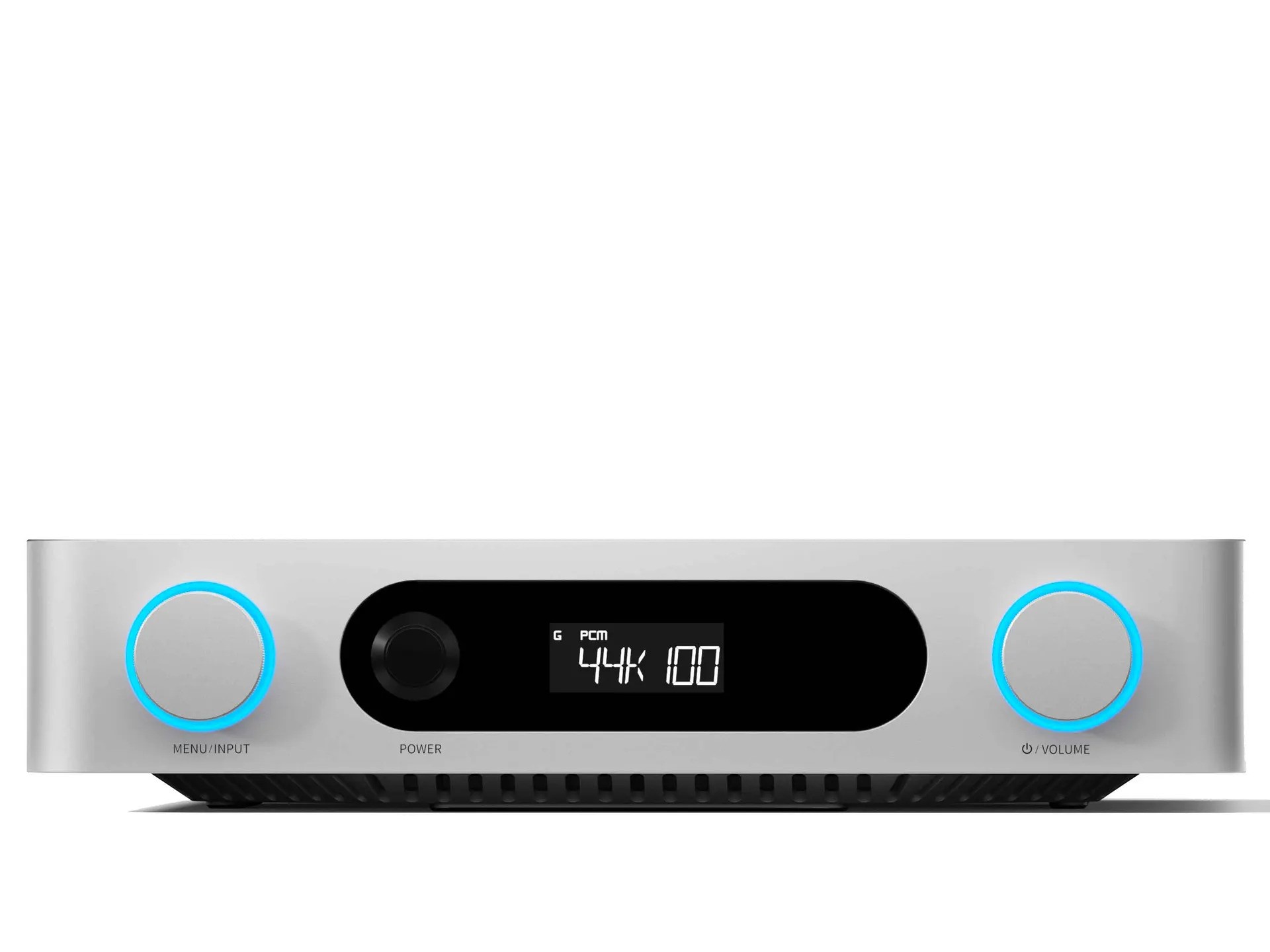

A palm-sized all-in-one that combines streaming, HD decoding, and high-power amplification. Built on a TI TPA3255 with a classic PFFB circuit for 120W+120W at 4Ω (up to 235W with a 48V/10A adapter), plus an XMOS XU316 + ES9020Q DAC decoding up to 768kHz/DSD512. Features Roon Ready/AirPlay/QPlay, NAS & USB playback, 7 inputs / 3 outputs, 10-band PEQ, bass/treble control, dual-band Wi-Fi + gigabit Ethernet, and an included IR remote. 48V/5A adapter in the box.

Specifications

• Model: AIR AMP
• Hardware:
  • SoC: X2000
  • DAC: ES9020Q
  • USB Controller: XU316
  • Bluetooth Module: AP6256
  • Amplifier: TPA3255
• Operating Modes: USB DAC / Optical / Coaxial / Line In / Bluetooth / Network Streaming / Local Playback
• Supported Speaker Impedance: 4–8Ω
• Damping Factor: 80
• Display: 1.1" LCD
• Volume Control: Knob / Remote Control
• Input Sensitivity: High / Low selectable
• Channel Balance: L20 – R20
• Colors: Black / Silver

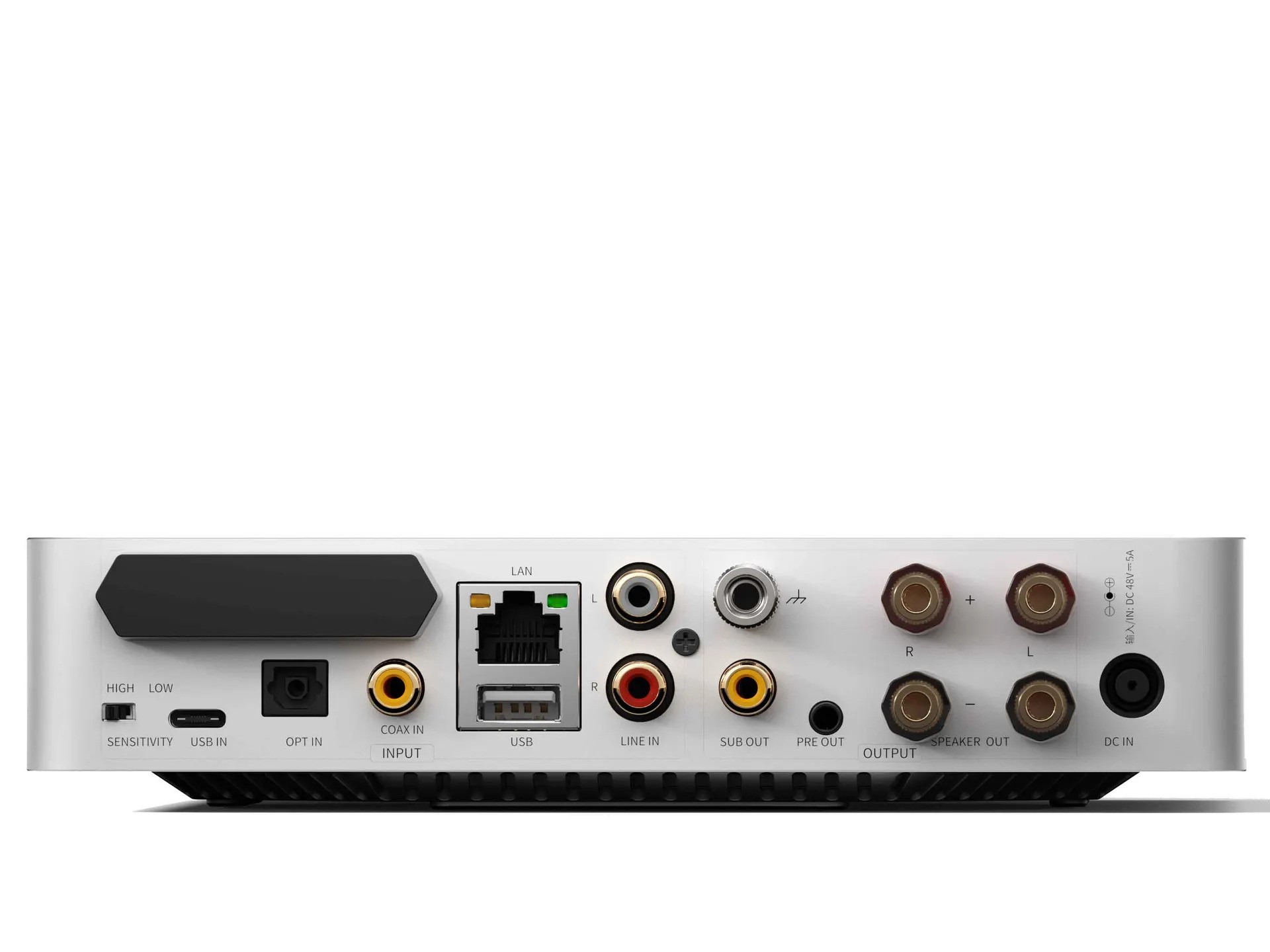

• Inputs & Outputs:
  • USB DAC: 2 x USB-C
  • USB: 1 x USB-A
  • Analog Input: 1 x RCA
  • Optical Digital Input: 1 x Optical
  • Coaxial Digital Input: 1 x RCA
  • Line Output: 1 x 3.5 mm
  • Subwoofer Output: 1 x RCA
  • Speaker Outputs: 4 mm banana jacks, compatible with bare wire
  • Grounding Terminal: 4 mm banana jack, compatible with bare wire
  • Network: Gigabit Ethernet
• Streaming:
  • QPlay
  • AirPlay
  • Roon Ready
• Bluetooth: Bluetooth 5.2 with SBC / LDAC
• MQA: Full MQA decoding
• FiiO Link: FiiO Control supported
• Equalizer: 10-band PEQ with 10 built-in presets and 10 custom EQ profiles
• Wireless Network: Dual-band 2.4GHz / 5GHz Wi-Fi
• Firmware Updates: Local / OTA
• Remote Control: IR remote included
• Supported Sampling Rates:
  • USB DAC: Up to 768kHz / 32-bit, DSD512 Native
  • Local Playback: Up to 384kHz / 32-bit, DSD256
  • Network Streaming: Up to 384kHz / 32-bit, DSD256
  • Coaxial Input: Up to 192kHz / 24-bit, DSD64
  • Optical Input: Up to 96kHz / 24-bit
• Power Supply: DC 48V / ≥5A
• Speaker Output with 48V / 5A Power Supply, Digital Inputs:
  • Output Power: ≥120W + 120W into 4Ω, THD+N <1%
  • Output Power: ≥90W + 90W into 8Ω, THD+N <1%
  • Output Impedance: <0.1Ω
  • THD+N: <0.0021%
  • SNR: ≥110dB, A-weighted
  • Dynamic Range: ≥110dB, A-weighted
  • Crosstalk: ≥83dB
  • Noise Floor: <80µV, A-weighted
  • Frequency Response: 20Hz – 20kHz, attenuation <0.4dB
• Speaker Output with 48V / 5A Power Supply, Line In High:
  • Output Power: ≥120W + 120W into 4Ω, THD+N <1%
  • Output Power: ≥90W + 90W into 8Ω, THD+N <1%
  • Output Impedance: <0.1Ω
  • THD+N: <0.002%
  • SNR: ≥110dB, A-weighted
  • Dynamic Range: ≥110dB, A-weighted
  • Crosstalk: ≥78dB
  • Noise Floor: <80µV, A-weighted
  • Frequency Response: 20Hz – 20kHz, attenuation <0.3dB
• Speaker Output with 48V / 10A Power Supply, Digital Inputs:
  • Output Power: ≥190W + 190W into 4Ω, THD+N <10%
  • Output Power: ≥100W + 100W into 8Ω, THD+N <10%
  • Output Power: ≥155W + 155W into 4Ω, THD+N <1%
  • Output Power: ≥90W + 90W into 8Ω, THD+N <1%
  • Output Impedance: <0.1Ω
  • THD+N: <0.0021%
  • SNR: ≥110dB, A-weighted
  • Dynamic Range: ≥110dB, A-weighted
  • Crosstalk: ≥83dB
  • Noise Floor: <80µV, A-weighted
  • Frequency Response: 20Hz – 20kHz, attenuation <0.4dB
• Speaker Output with 48V / 10A Power Supply, Line In High:
  • Output Power: ≥235W + 235W into 4Ω, THD+N <10%
  • Output Power: ≥150W + 150W into 8Ω, THD+N <10%
  • Output Power: ≥155W + 155W into 4Ω, THD+N <1%
  • Output Power: ≥90W + 90W into 8Ω, THD+N <1%
  • Output Impedance: <0.1Ω
  • THD+N: <0.0022%
  • SNR: ≥110dB, A-weighted
  • Dynamic Range: ≥110dB, A-weighted
  • Crosstalk: ≥78dB
  • Noise Floor: <80µV, A-weighted
  • Frequency Response: 20Hz – 20kHz, attenuation <0.3dB
• Line Output:
  • Output Level: 2.5Vrms
  • THD+N: 0.0007%
  • SNR: ≥117dB, A-weighted
  • Dynamic Range: ≥117dB, A-weighted
  • Crosstalk: ≥103dB
  • Noise Floor: <3.4µV, A-weighted
  • Frequency Response: 20Hz – 20kHz, attenuation <0.2dB
• Subwoofer Output:
  • Digital Inputs Output Level: 4.7Vrms
  • Line In Output Level: 5Vrms
  • Output Impedance: <135Ω
  • Noise Floor: <3.1µV, A-weighted
  • SNR: ≥123dB, A-weighted (digital inputs) / ≥124dB, A-weighted (Line In)
• Dimensions: 207 x 188 x 42 mm
• Weight: Approximately 930g
