Ο FiiO Level-1 ειναι ψηφιακος δικαναλος ενισχυτης 2x135w/8Ω THD+N <1% εως  2x300w/4Ω THD+N <10%. Εισοδοι: 1x USB-C 2.0, 1x Coaxial RCA, 1x RCA line input, Bluetooth. Εξοδοι: 1x RCA Preout, 1x RCA Sub, 1x pair Speakers.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

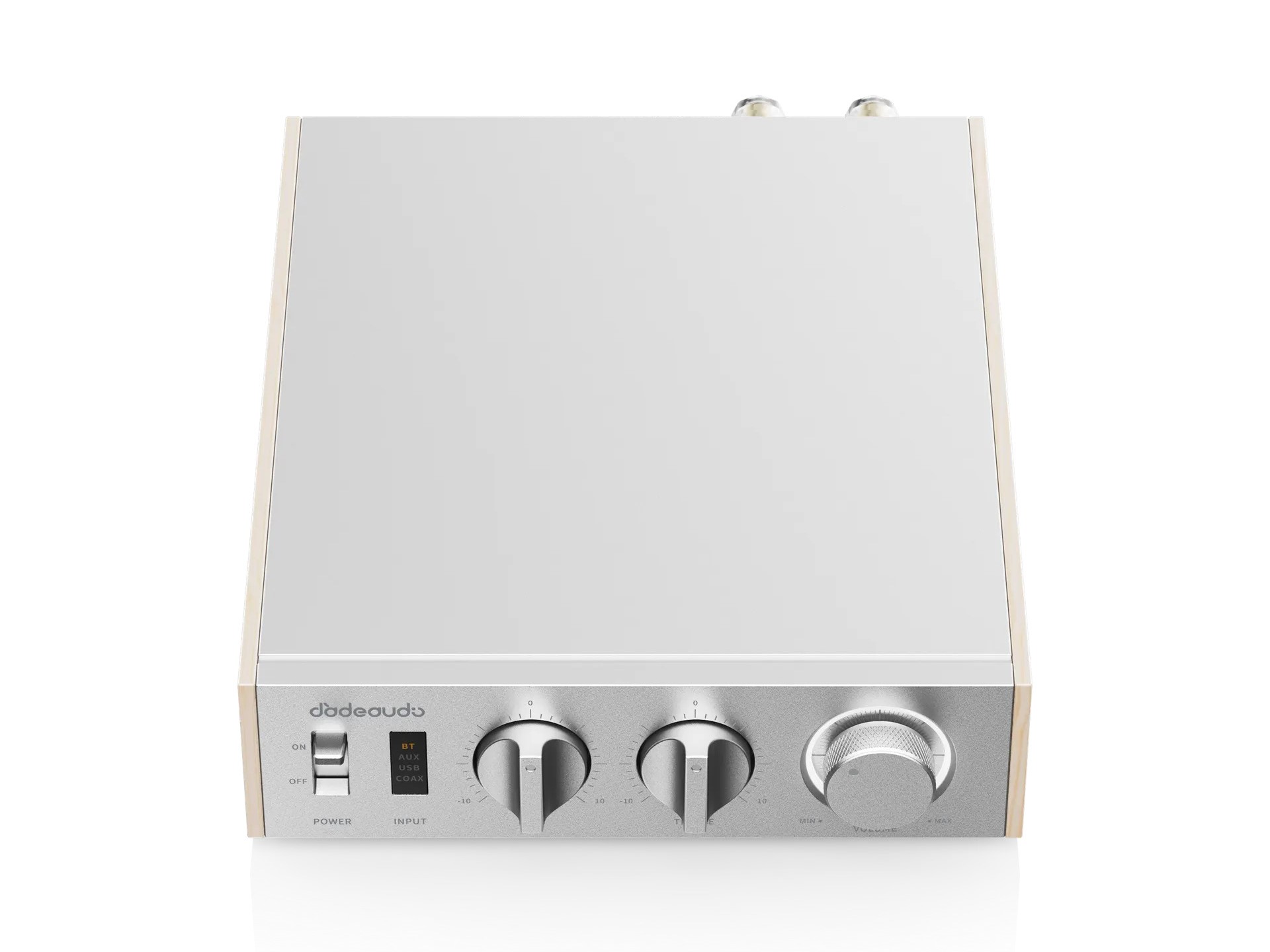

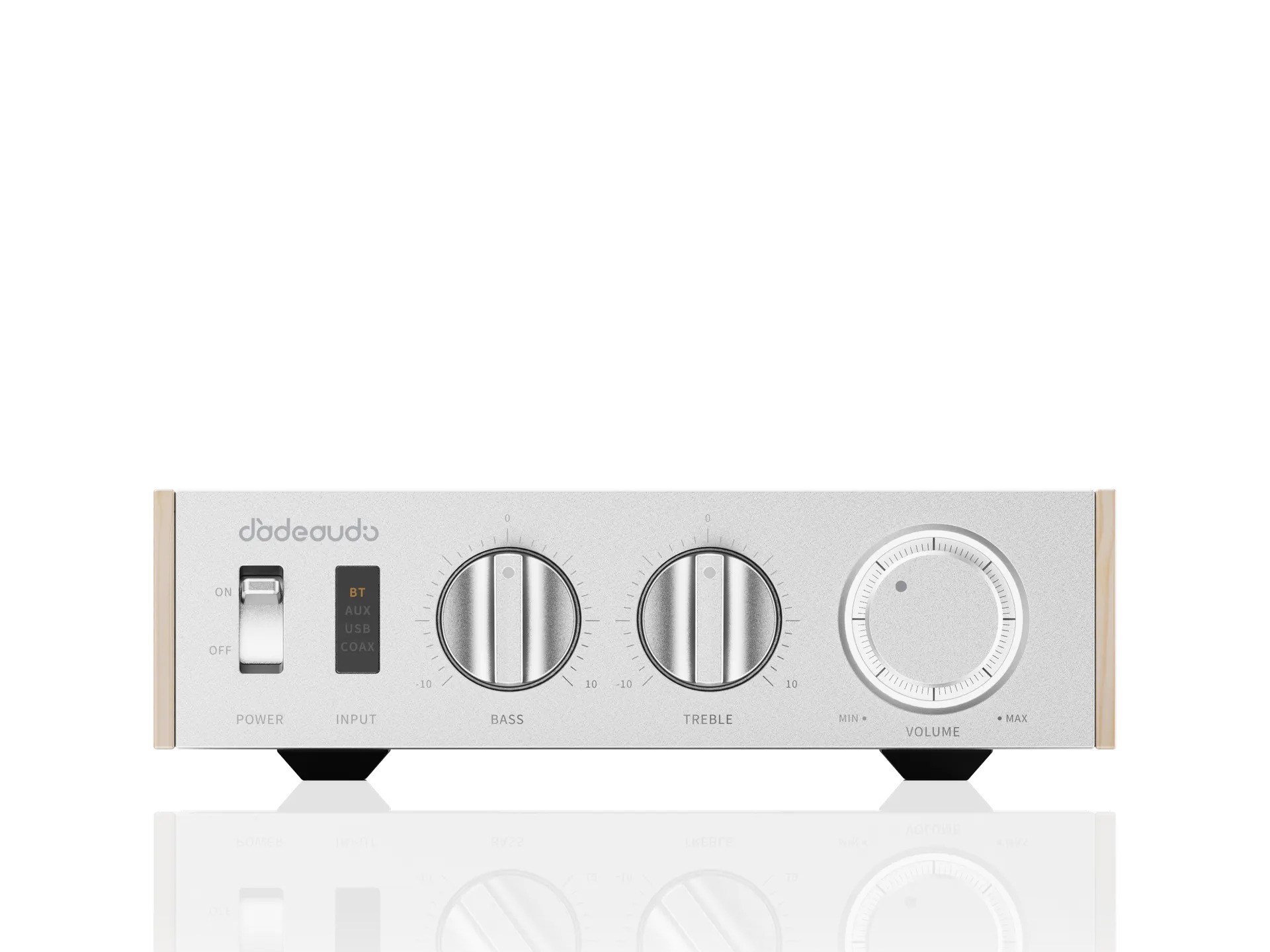

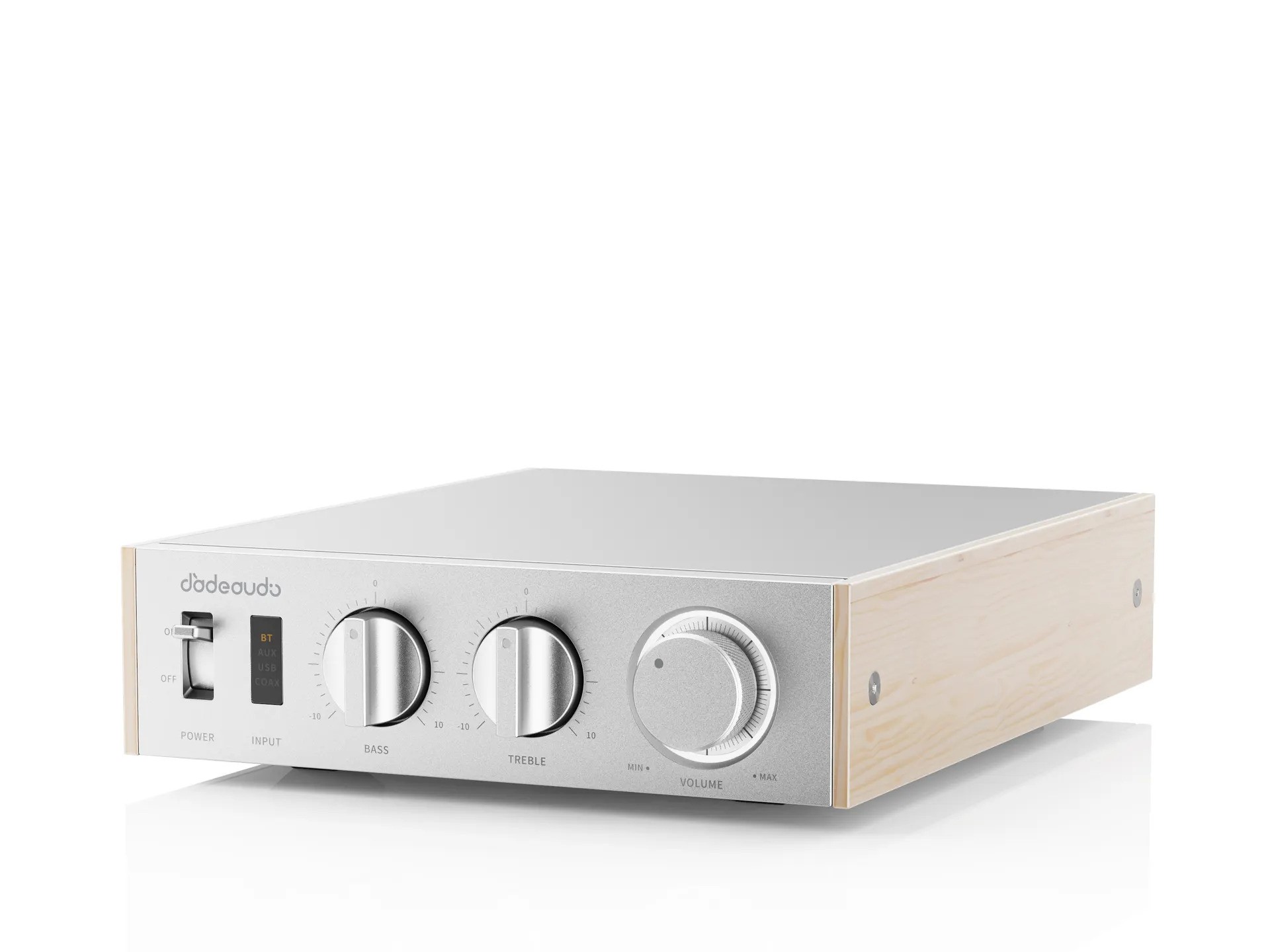

A compact desktop power amplifier delivering 2?300W from a Texas Instruments TPA3255 chip. Features premium WIMA/Nichicon/ELNA components, Bluetooth 6.0 with LDAC, multiple inputs (Line/Coaxial/USB) and outputs (Speaker/Subwoofer/Pre-out), independent bass & treble knobs, and a striking aluminum-and-wood vintage design. Includes 48V/5A power adapter.

Features

• Premium WIMA/Nichicon/ELNA capacitors
• Bluetooth 6.0 with LDAC
• Multiple inputs (Line/Coaxial/USB)
• Outputs (Speaker/Subwoofer/Pre-out)
• Independent bass & treble knobs
• Striking aluminum-and-wood vintage design
• Includes 48V/5A power adapter

Specifications

• Amplifier:
  • TPA3255 Class D amplifier
  • Adaptive speaker impedance: 4Ω ? 8Ω
• Bluetooth:
  • Bluetooth 6.0
  • Chipset: BT8961
  • Supported codecs: SBC, LDAC
• Operating Modes:
  • Line input
  • USB DAC
  • Coaxial DAC
  • Bluetooth receiver
• Supported Sampling Rates:
  • USB DAC: 44.1kHz, 48kHz, 96kHz, 16 / 24-bit
  • Coaxial input: Up to 192kHz / 24-bit
• Tone Controls:
  • Bass: -10 to +10 levels
  • Treble: -10 to +10 levels
• Audio Inputs:
  • USB-C 2.0
  • Coaxial RCA
  • RCA line input
• Audio Outputs:
  • Speaker outputs, 4mm banana terminals, supports bare wire
  • RCA line output
  • RCA subwoofer output
• Special Features:
  • PEQ support
  • Firmware updates via FiiO Control
  • Driver-free USB mode
  • Working mode LED indicator
  • Knob LED status indicator
• Power Supply:
  • DC 24?53V, minimum 5A
  • 5.5 x 2.5mm DC connector
• Speaker Output Performance, 53V / 12A Power Supply:
  • 300W + 300W, 4Ω, THD+N <10%
  • 190W + 190W, 8Ω, THD+N <10%
  • 240W + 240W, 4Ω, THD+N <1%
  • 135W + 135W, 8Ω, THD+N <1%
  • Output impedance: <0.2Ω
  • Frequency response: 5Hz ? 40kHz
  • THD+N: <0.0025%
  • SNR: ?111dB (A-weighted)
  • Dynamic range: ?106dB
  • Crosstalk: ?87dB
  • Noise floor: <90?V (A-weighted)
  • Peak output voltage: >100Vp-p
• Speaker Output Performance, Standard Mode:
  • 120W + 120W, 4Ω, THD+N <1%
  • 115W + 115W, 8Ω, THD+N <1%
  • Output impedance: <0.2Ω
  • Frequency response: 5Hz ? 40kHz
  • THD+N: <0.0025%
  • SNR: ?108dB (A-weighted)
  • Dynamic range: ?103dB
  • Crosstalk: ?87dB
  • Noise floor: <90?V (A-weighted)
  • Peak output voltage: >90Vp-p
• Line Output Performance:
  • Output level: 2.5Vrms
  • Frequency response: 5Hz ? 40kHz
  • THD+N: <0.00035%
  • SNR: ?115dB (A-weighted)
  • Dynamic range: ?112dB
  • Crosstalk: ?108dB
  • Noise floor: <4.6?V (A-weighted)
• Dimensions: 181 x 133 x 36 mm, W x D x H
• Weight: 676 g
• Finishes: Black with Walnut, Silver with Maple
