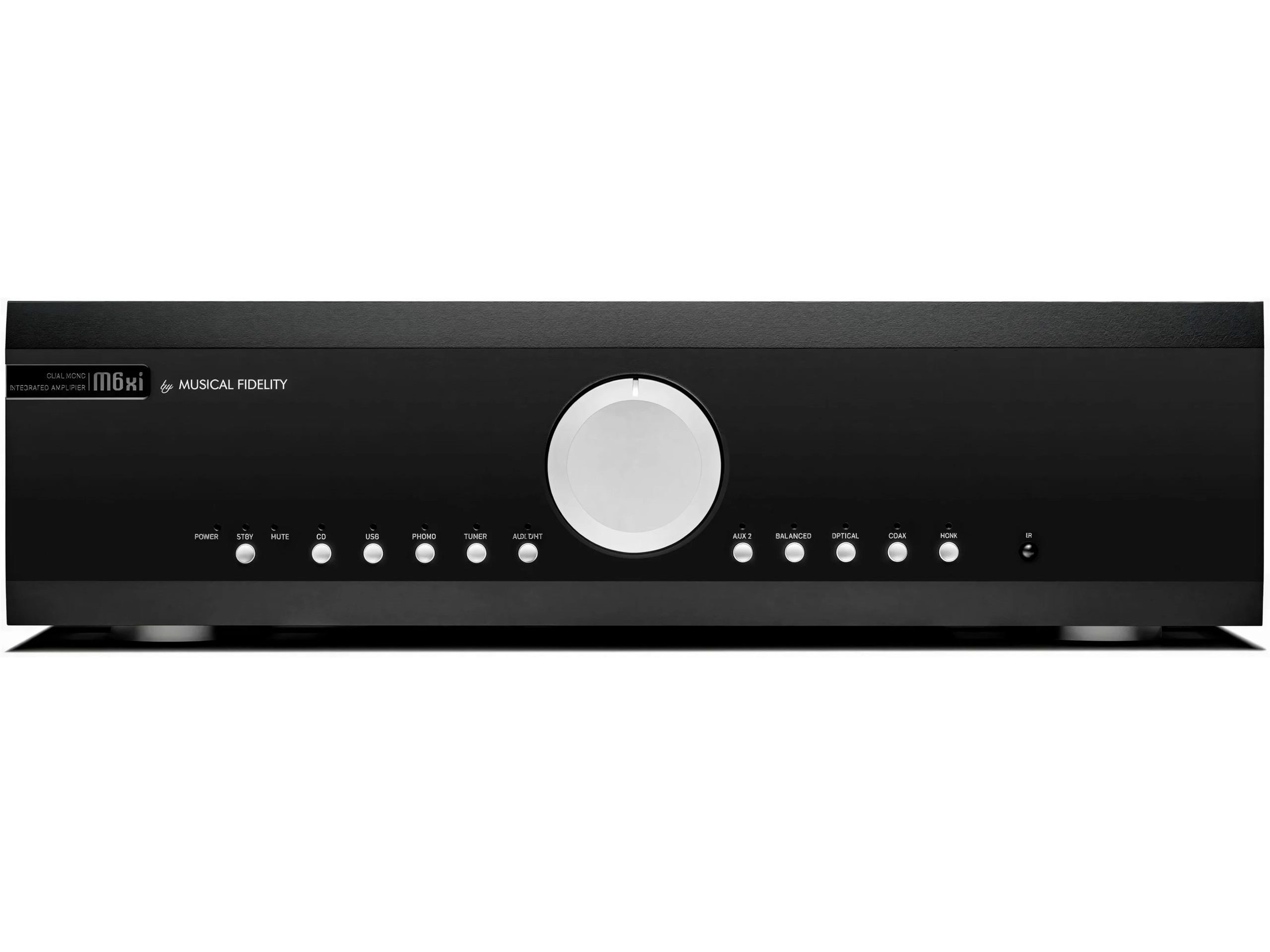

Ο Musical Fidelity M6xi ειναι δικαναλος τηλεχειριζομενος στερεοφωνικος ενισχυτης 2x210 wrms/8Ω.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα ανταλλαγων, δοσεων.

Features

• Amplifier:
  • High-end circuitry derived from the TITAN amplifier
  • Power Output: 220W per channel into 8Ω; 320W per channel into 4Ω
  • Fully analogue amplifier design
  • Fully discrete dual-mono power amplifier architecture
  • Classic low-distortion Musical Fidelity output stage with no crossover artefacts
  • New PCB layout for reduced imbalances, minimizing the need for feedback correction
  • All-analogue power supplies during operation for reduced high-frequency noise and EMC
  • Designed to drive power-hungry loudspeakers and handle low-impedance dips
  • New oversized encapsulated toroidal transformer
  • High power reserves for peak power delivery and wide dynamic range
• Preamplifier:
  • Low-noise design for low THD and high signal integrity at both low and high volume levels
  • High-quality stepped volume attenuator for improved channel matching compared with conventional potentiometers
  • Pre Out for bi-amping with M6sPRX or connection of an active subwoofer
  • Separate digital PCBs with carefully optimized circuitry layout to minimize high-frequency interference
• Connectivity:
  • Balanced XLR input
  • Optical, coaxial and HDMI digital inputs
  • USB-C Input: Up to 24-bit / 192kHz
  • RS232 interface for custom integration
  • Isolated linear 5V / 2A USB-A power output for external streamers
  • HT Input: Bypasses the preamplifier stage for use as a front L/R power amplifier in home-theater systems
  • MM / MC phono stage with improved PCB layout, isolation and shielding for reduced noise and distortion
• Mechanical Construction:
  • Heavy-duty all-metal construction
  • Heavy front and side panels milled from extruded aluminium profiles
  • Rigid metal chassis designed to provide protection against electromagnetic interference

Specifications

• Output:
  • Continuous Power, both channels driven @ 1% THD, 1kHz:
    • 220W per channel into 8Ω
    • 320W per channel into 4Ω
  • Continuous Power, both channels driven @ 0.09% THD, 20Hz – 20kHz:
    • 210W per channel into 8Ω
    • 300W per channel into 4Ω
  • Peak Power, both channels driven @ 1% THD, 1kHz:
    • 280W per channel into 8Ω
    • 450W per channel into 4Ω
  • Output Voltage: 43V RMS, 20Hz – 20kHz, onset of clipping
  • Peak-to-Peak Voltage: 121V
  • Peak-to-Peak Current: 45A
  • Damping Factor: 49 (8Ω)
  • Output Devices: 2 pairs per channel
• Line Input:
  • THD+N: <0.007% typical, 20Hz – 20kHz
  • Signal-to-Noise Ratio: >107dB, A-weighted
  • Input Impedance: 40kΩ
  • Frequency Response: +0 / -0.1dB, 10Hz – 20kHz

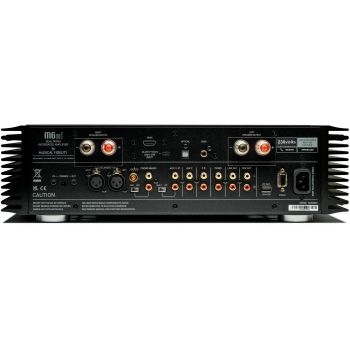

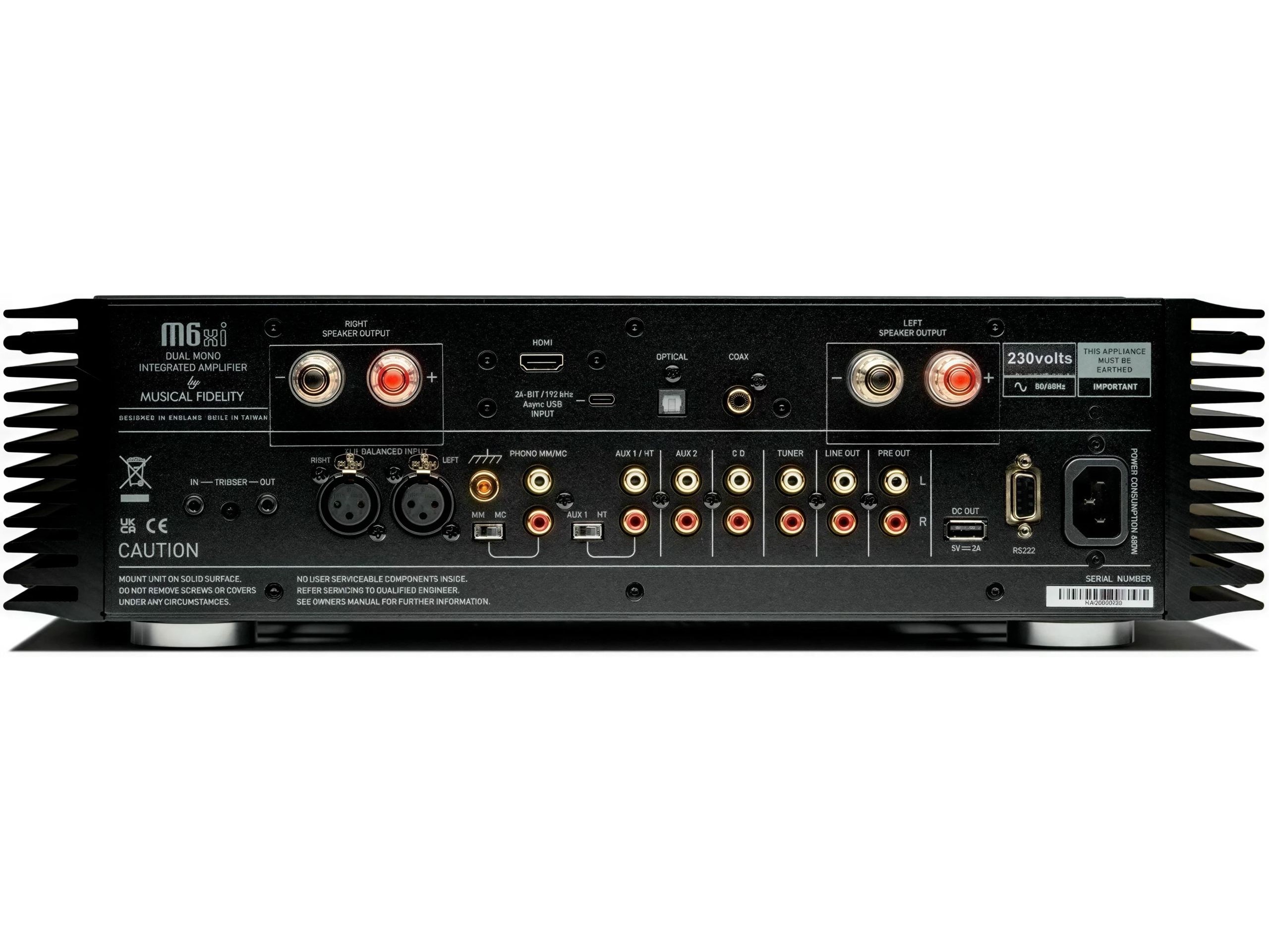

• Connections:
  • Analog Inputs: 4 x RCA
  • Balanced Input: 1 x XLR
  • HDMI Input: 1 x HDMI eARC
  • Digital Inputs: 1 x Coaxial, 1 x Optical
  • USB Input: 1 x USB-C, up to 24-bit/192kHz
  • Phono Input: 1 x MM/MC
  • Tape Output: 1 x RCA pair, fixed level
  • Preamp Output: 1 x RCA pair
  • Speaker Outputs: 2 pairs of 4 mm banana/binding posts
  • USB Power Output: 1 x USB-A, 5V/2A
  • Control: 1 x RS-232 D-sub
• Phono Input:
  • Sensitivity: 3mV MM / 0.4mV MC (for 300mV nominal output)
  • Gain: 40dB MM / 60dB MC
  • Signal-to-Noise Ratio: >87dB, A-weighted
  • Input Capacitance: 220pF
  • Input Impedance: 50kΩ MM / 1kΩ MC
  • Frequency Response: RIAA/IEC ±0.4dB, 20Hz – 20kHz
• Power:
  • Mains: 115/230VAC, 50/60Hz (factory preset)
  • Alternative Mains: 100VAC, 50/60Hz
  • Maximum Power Consumption: 680W
• Dimensions (W x H x D): 440 x 125 x 400 mm
• Weight: 18.5 kg
• Packed Weight: 22 kg
