Το FiiO M33 R2R ειναι ενα φορητο player (DAP).  Διαθετει 8GB RAM και 128GB εσωτερικο αποθηκευτικο χωρο.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

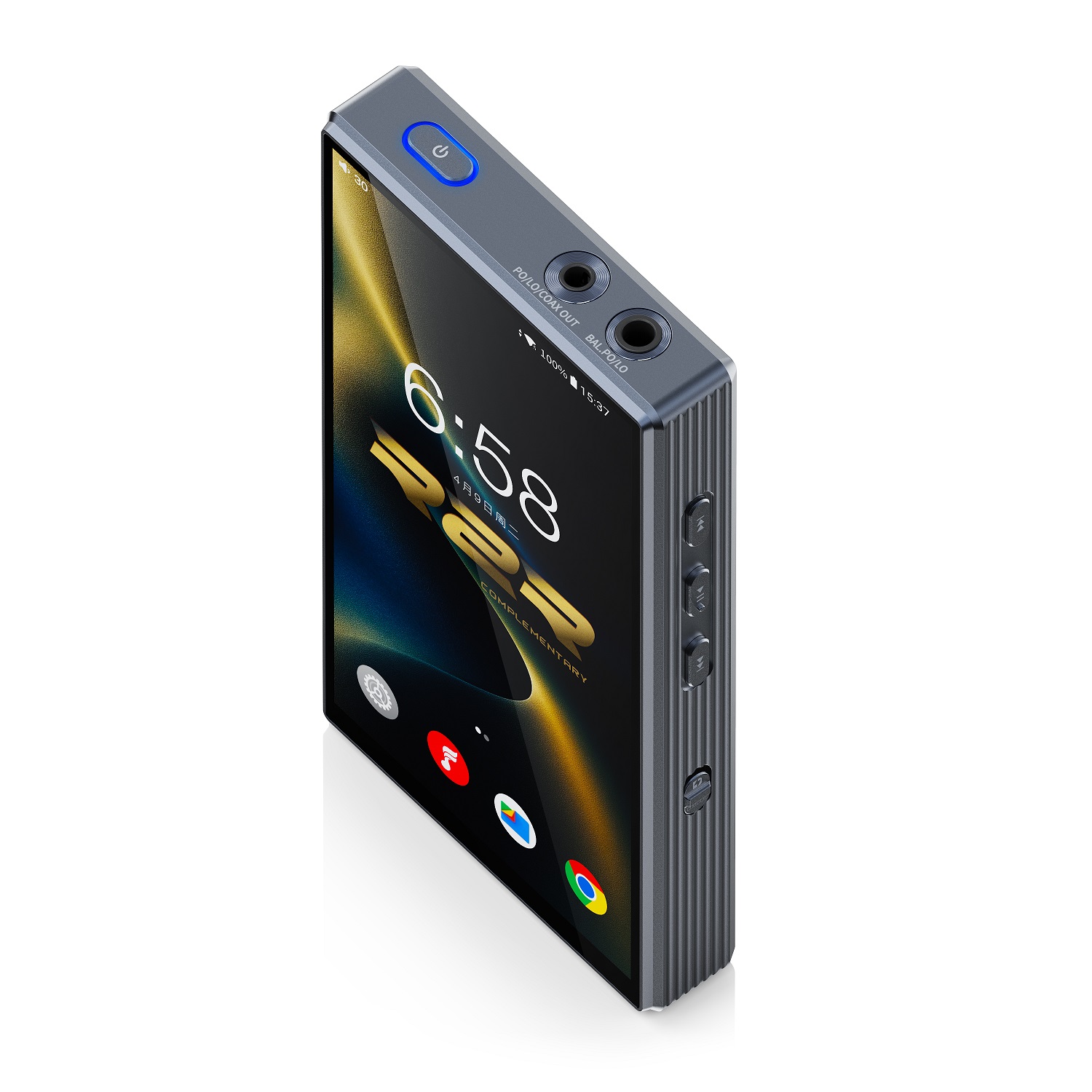

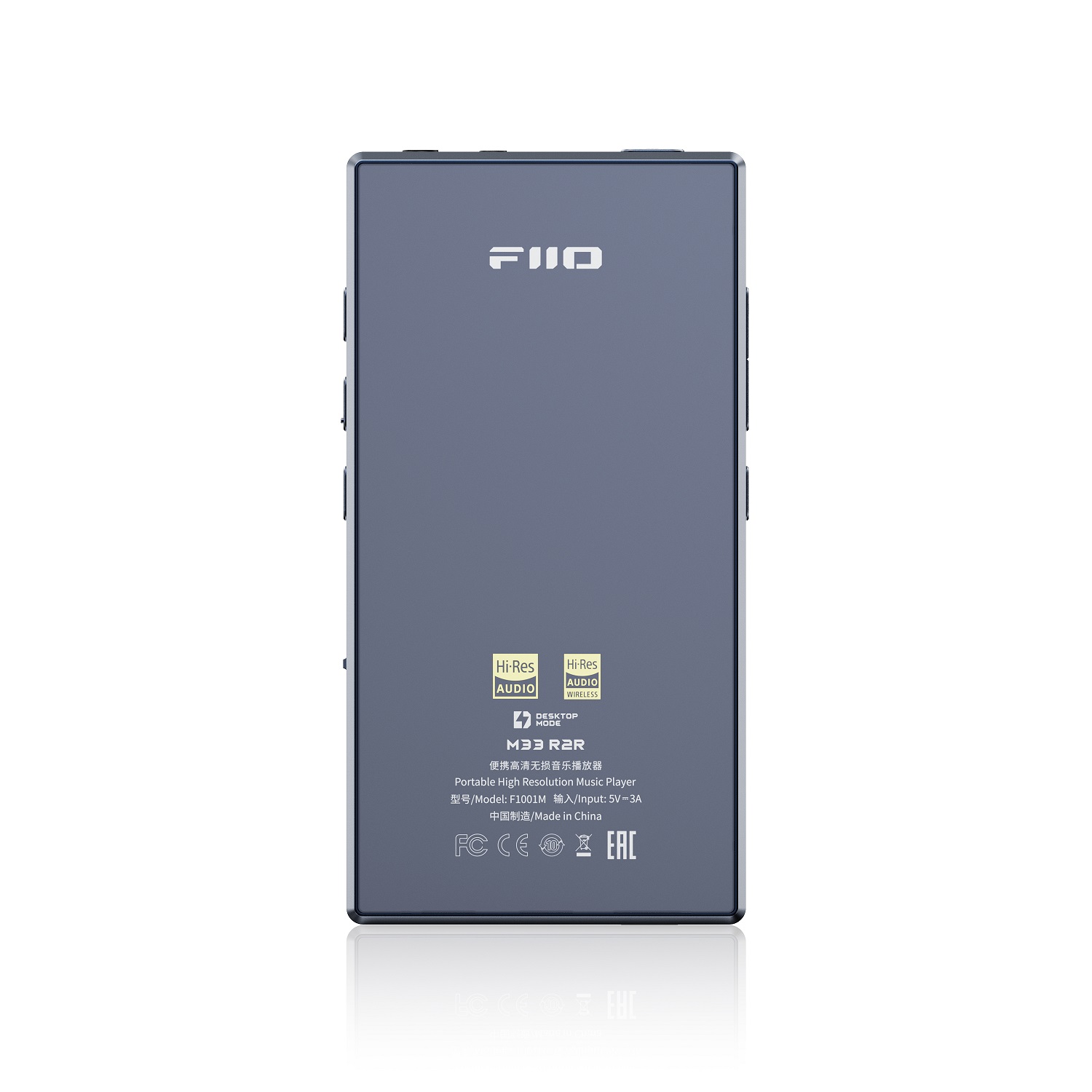

The M33 is a portable high-resolution digital audio player built around a fully differential 24-bit R2R ladder DAC, developed in-house by FiiO. The discrete resistor-ladder architecture replaces delta-sigma conversion and is implemented in a quad-channel, fully balanced topology using modern precision components. The analog stage employs eight Texas Instruments operational amplifiers, delivering up to 1100 mW per channel at 32 Ω from the 4.4 mm balanced output, while the 3.5 mm single-ended output provides 470 mW per channel.

The player runs Android 13 on a Qualcomm Snapdragon 680, with 8 GB RAM and 128 GB internal storage, enabling native third-party streaming apps and smooth library handling. USB audio is managed by a dedicated XMOS XU316 controller with dual femtosecond oscillators, isolating clocking and audio processing from the Android SoC to reduce jitter and digital noise.

DSP features include a 10-band parametric EQ with Auto EQ, All-to-DSD conversion, and SRC bypass. The M33 can also function as a digital transport via coaxial and USB audio outputs.

A physical Desktop Mode switch disables battery limitations when externally powered, allowing sustained high-performance operation. The 4400 mAh battery provides up to 14 hours (3.5 mm) or 12.5 hours (4.4 mm) of playback, with fast charging to full capacity in approximately 1.5 hours.

The chassis weighs 258 g, is slimmer and narrower than the M23, and features a 5.5-inch 18:9 LCD protected by Gorilla Glass 3 with oleophobic coating. Compatibility with the Retro Box accessory enables desktop placement and alternative visual styling.

Features

• DAC: Proprietary FiiO 24-bit fully differential complementary R2R
• SoC: Qualcomm Snapdragon 680
• Operating System: Android 13
• RAM: 8 GB
• Internal Storage: 128 GB
• USB Controller: XMOS XU316
• Amplification Stage: 8 × Texas Instruments operational amplifiers
• Balanced Output (4.4 mm): 1100 mW + 1100 mW @ 32 Ω
• Single-Ended Output (3.5 mm): 470 mW + 470 mW @ 32 Ω
• Display: 5.5” HD LCD, 18:9 aspect ratio, Gorilla Glass 3
• Battery Capacity: 4400 mAh
• Battery Life: 12.5 hours (4.4 mm) / 14 hours (3.5 mm)
• Weight: 258 g
• Digital Outputs: Coaxial, USB Audio

Specifications

• General Specifications:
  • Model: M33 R2R
  • Hardware solution: Qualcomm Snapdragon 680 SoC, FiiO proprietary R2R DAC, XU316 USB DAC
  • Working modes: Android, Pure Music, AirPlay, USB DAC, Bluetooth reception
  • Available finishes: Retro gold, Dark blue, Black
  • Display: 5.5-inch fully laminated screen, 1080 x 2160
  • Internal storage: 128GB, about 112GB usable
  • Memory: 8GB RAM
  • Memory card support: Up to 2TB
  • Volume control: Button control
  • Weight: About 258 g
  • Dimensions: 138.2 x 71.5 x 17 mm
• Headphone Compatibility:
  • Recommended headphone impedance, single-ended: 8Ω – 350Ω
  • Recommended headphone impedance, balanced: 8Ω – 350Ω
  • Channel balance: L20 – R20, 0.5dB per level
  • Gain selection: Over-ear headphone mode, High, Medium, Low
• Buttons & Ports:
  • Buttons: Power, Volume x2, Multifunction, Play/Pause, Previous Track, Next Track
  • Slide switch: D.MODE button
  • USB: Type-C USB 3.0 for charging / data transfer, Type-C POWER IN for charging / independent power supply
  • Headphone output: 3.5mm single-ended
  • Line output: 3.5mm shared PO
  • Coaxial output: 3.5mm shared PO
  • Balanced headphone output: 4.4mm
  • Balanced line output: 4.4mm shared BAL
• Wireless Connectivity:
  • Wi-Fi: 2.4GHz / 5GHz, DLNA, AirPlay, Wi-Fi music transfer
  • Bluetooth transmission, 5.0: SBC, aptX, aptX HD, LDAC, LHDC
  • Bluetooth reception, 5.0: SBC, LDAC
  • Remote control: Wi-Fi control supported
• Audio Features:
  • MQA global decoding
  • ALL TO DSD conversion
  • 10-band PEQ and AUTO EQ
  • Sound profiles: Natural sound, Warmer sound
  • Double click to wakeup
  • Screen rotation
  • Gesture control, two-button and three-button navigation
  • Idle power-off / sleep timers
  • Firmware update: Local storage, microSD card, OTA push upgrade
• Maximum Sampling Rates:
  • Local DAC: Up to 384kHz / 32-bit, DSD256 native
  • USB DAC: Up to 768kHz / 32-bit, DSD512 native
  • USB Audio: Up to 768kHz / 32-bit, DSD512, DoP / D2P / Native
  • Coaxial output: Up to 384kHz / 24-bit, DSD128, DoP / D2P
• Battery Life:
  • 3.5mm output: Up to 15.5 hours, high gain, 32Ω, MP3 44.1kHz / 16-bit, screen off
  • 4.4mm balanced output: Up to 13.5 hours, high gain, 32Ω, MP3 44.1kHz / 16-bit, screen off
  • Charging time: About 1.5 hours, PD3.0 PPS fast charging
• Single-Ended Headphone Output, 3.5mm:
  • Output power: 540mW + 540mW at 16Ω, 470mW + 470mW at 32Ω, 60mW + 60mW at 300Ω
  • Output impedance: <0.8Ω
  • Crosstalk: ≥74dB
  • Noise floor: <5.5µV
  • THD+N: PCM 0.0183%, DSD 0.0033%
  • SNR: ≥117dB
  • Dynamic range: ≥114dB
  • Peak output voltage: >12Vp-p
  • Frequency response: 20Hz – 40kHz
• Balanced Headphone Output, 4.4mm:
  • Output power: 1100mW + 1100mW at 32Ω, 240mW + 240mW at 300Ω
  • Output impedance: <1.5Ω
  • Crosstalk: ≥104dB
  • Noise floor: <10.3µV
  • THD+N: PCM 0.0171%, DSD 0.0033%
  • SNR: ≥116dB
  • Dynamic range: ≥115dB
  • Peak output voltage: >24Vp-p
• Line Outputs:
  • Single-ended 3.5mm: 2Vrms, THD+N PCM 0.0182%, SNR ≥116dB
  • Balanced 4.4mm: 4Vrms, THD+N PCM 0.0163%, SNR ≥118dB
• Supported Audio Formats:
  • DSD: DSD64 / 128 / 256, ISO, DSF, DFF, DST ISO
  • DXD: 352.8kHz / 24-bit
  • APE: Up to 384kHz / 24-bit
  • Apple Lossless: Up to 384kHz / 32-bit
