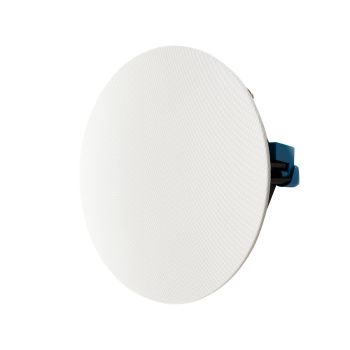

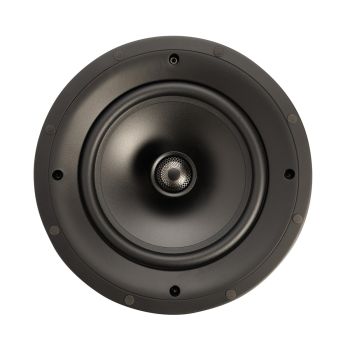

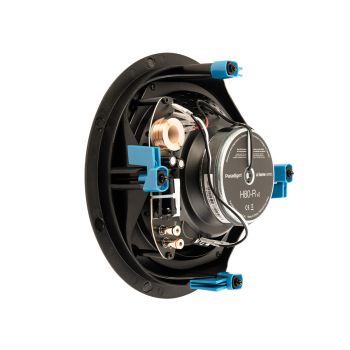

Το Paradigm CI Home H80-R V2 ειναι ενα ηχειο οροφης δυο δρομων (woofer 8", tweeter τιτανιου 1"). Βαθος τοποθετησης 8.6 cm.
H τιμη αφορα 1 τεμαχιο.

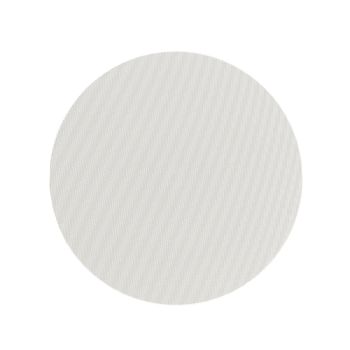

Your “Go-To” Custom Install Speaker. The CI HOME series address the important considerations when selecting custom installation speakers: truly superior sound, easy installation, and a new bezel-free micro-perf grille with an incredibly discreet aesthetic.
Specifications
| DESIGN | 2-driver, 2-way in-ceiling, ABS chassis & mounting clamps |
| CROSSOVER | 2nd-order electro- acoustic at 2.5 kHz |
| FREQUENCY RESPONSE ON-AXIS | ±2 dB from 60 Hz - 20 kHz |
| HIGH FREQUENCY DRIVER | 3/4” (1.9cm) Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens |
| MID/BASS FREQUENCY DRIVER | 8” (20.3cm) Mineral-filled Polypropylene Cone |
| LOW FREQUENCY EXTENSION | 45 Hz |
| SENSITIVITY ROOM / ANECHOIC | 90 dB / 86 dB |
| FREQUENCY RESPONSE 30° OFF-AXIS | ±2 dB from 60 Hz - 18 kHz |
| SUITABLE AMPLIFIER POWER RANGE | 15-90 W Mono |
| MAXIMUM INPUT POWER | 60 W Stereo |
| IMPEDANCE | Compatible with 8 ohms |
| WEIGHT | 4.4 lbs (2 kg) |
| FINISHES | White, paintable grille, black speaker |
| ACCESSORIES (NOT INCLUDED) | PB-9RN |
| CUT-OUT DIMENSIONS | 9-3/8” (23.8cm) dia. |
| MINIMUM MOUNTING DEPTH (DEPTH REQUIRED IS THE DISTANCE BETWEEN 1/2" DRYWALL, OR SIMILAR MATERIAL.) |
8.6cm |
| DIMENSIONS HXWXD (INCLUDES GRILLE). | diameter x depth 26.5cm x 10.1cm |
| CI HOME V2 DIMENSIONAL DRAWING |  |
1.7M |
| CI HOME V2 SPEC SHEET | |
1.44M |
| CI HOME SERIES V2 MANUAL | |
