Το Chartwell Derek Hughes LS6 ειναι ζευγος ηχειων 2 δρομων βασεως, με 1x 6.5" polypropylene woofer και 1x 0.75" silk dome tweeter. Η σχεδιαση της καμπινας ακολουθει την αγγλικη σχεδιαστικη λογικη "thinwall".

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων, ανταλλαγων.

Following the success of the Graham Audio LS3/5 and LS5/9, we were curious to discover what could be done with a cabinet that was sized somewhere between the two.

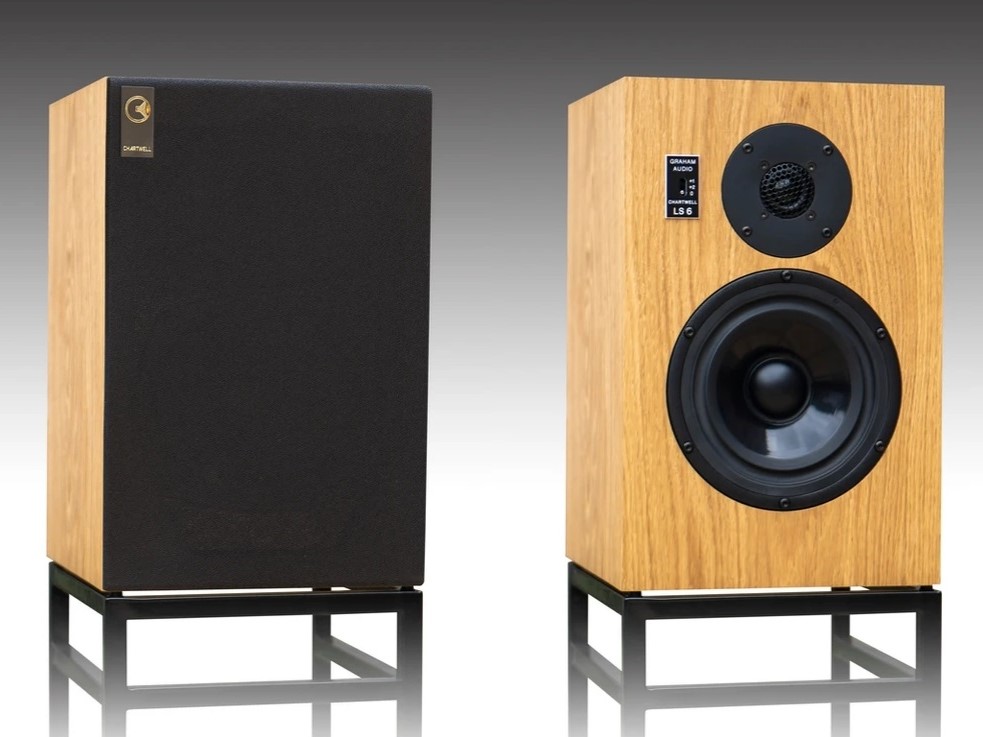

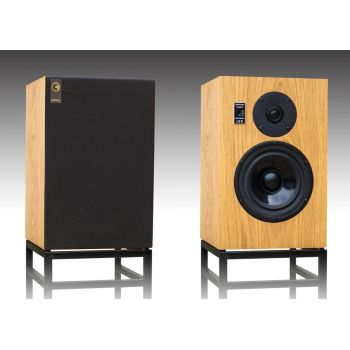

?The result is the Chartwell LS6, designed by Derek Hughes. A custom built 6 inch long-throw bass drive unit mated to a compact 17 litre cabinet gives bass extension and power handling that is comparable to the LS5/9. The bespoke 19mm dome tweeter extends to beyond 20kHz. The overall response retains the smoothness of both the LS3/5 and LS5/9.

?A large rear mounted port gives effortless bass, while allowing us to minimise the size of the cabinet to allow it to blend easily into typical domestic environments.

?A sophisticated crossover network blends the two units and equalises the overall response for optimum performance in free space. A switch on the front baffle adjusts the tweeter level to +1dB or +2dB. This can be useful for situations where the listening position is off axis.

?In common with all our loudspeakers, the cabinet uses the classic BBC "thinwall" construction, where the panels are mass-loaded to ensure that resonances are moved away from the critical mid-range region, and a layer of Rockwool is held in place by fabric to provide air damping. Hand-matched veneers are applied and finished to a very high standard. The grille is carefully designed to minimise diffraction effects and is held in place by concealed rare-earth magnets.

Specifications

• Colour  Cherry, Ebony, Oak, Rosewood, Walnut
• Operating Principle 2 way, Bass reflex
• Speaker Drivers 1 x 165mm polypropylene bass, 1 x 0.75" soft dome tweeter
• Impedance 8 Ω
• Frequency Response 45 Hz – 20 kHz ±3 dB
• Sensitivity 87 dB
• Maximum Output Over 100 db for a pair at 2m
• Recommended Amplifier Power 50 W – 150 W
• Construction Birch plywood, Thin wall construction
• Dimensions (WxDxH) 240 mm x 260 mm x 370 mm (including plinth)
• Weight 9.5 kg each
• Warranty 5 years

Reviews

Spendor Classic 3/1 vs Graham Chartwell LS6 - Audiogon Forum

"I currently own the Graham LS6 and in the (distant) past have had a lengthy home demo of the Spendor 3/1. But it was a long time ago and not the current model, so probably not too relevant. At that time I found the Spendor a bit too coloured and woolly, particularly at the bottom end. But this may have improved in the current model.
I can say that the Graham LS6 is an outstanding speaker. I have been through a lot of standmount speakers in my smallish room over the last few years, including Harbeth P3ESR, M30.1 and M30.2, Dynaudio C1, Dali Epicon 2, Graham LS5/8 and others. The Graham LS6 has ended my long search and is exactly what I have been looking for. Tonally rich but not coloured, dynamic with good bass extension, and very musically engaging"
