O Tsakiridis Devices Theseus 6550 (ή ΚΤ88) ειναι ολοκληρωμενος ενισχυτης καθαρης ταξης Α 2x10 wrms με λυχνιες 6550 (ή ΚΤ88). Διαθετει ενσωματωμενο phono stage MM και USB DAC. Εισοδοι: 1x Phono και 3x Line.

Δυνατοτητα ακροασης, ανταλλαγης και δοσεων.

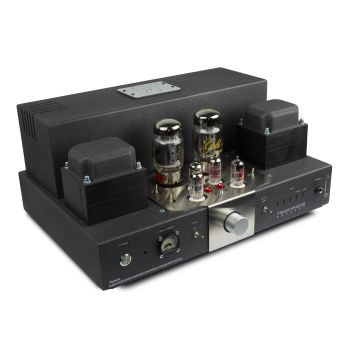

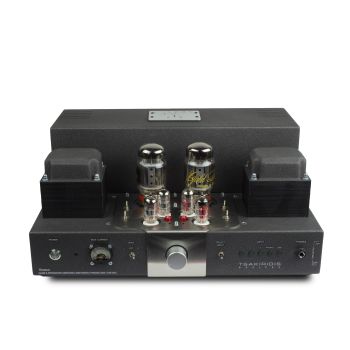

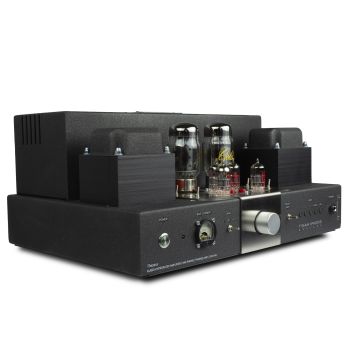

 A class A integrated tube amplifier which gives a superior sound quality foe pure audio lovers. As a class A amplifier Theseus requires high sensitivity loudspeakers to unfold its virtues.
Theseus provides an MM tube phono stage, three line inputs and a USB DAC.
 Gold plated RCA connectors are implemented for the signal inputs/output and high quality binding posts for the loudspeakers. For the volume control the classic blue Alps is used.
An elegant remote control in aluminum case offers you control over all the functions of Theseus integrated amplifier. Volume control, input selection and mute.

Carefully selected values and types of the electronic components contribute to the reliable circuits operation and the high sound quality of the amplifier. The meticulous PCB design ensures excellent behavior in SNR, distortion and channel separation.
Inner signal wiring with high quality shielded signal cable. Power wiring uses high quality copper cables of more-than-needed AWG gauge, to achieve low impedance power transfer. All power cables are twisted in pairs to minimize the electromagnetic interference.

 The handmade multilayer output transformers allow the amplifier to reveal the sound stage and all the music details through the entire audio spectrum to give you a unique audio experience. Made by us and tested thoroughly for quality and reliability.
 The same applies to the power transformer and the chokes.
 The positioning of the transformers and chokes is such that minimizes the magnetic coupling between power and output transformers.

Features

• Inputs: 3 line inputs
• Phono input: MM cartridge
• Outputs: 1 Tape output
• Other connections: 1 USB DAC input
• Input selection: High grade signal relays
• Input/Output connectors: RCA gold plated
• Speaker connectors: Ultimax
• Remote control: Yes
• Volume control: Blue Alps
• Power supply capacitors: High quality Long life Capacitors
• Signal capacitors: Non inductive polypropylene film capacitors
• Power resistors: Carbon film 5% tolerance
• Low power resistors: Metal film 1% tolerance
• Power transformer: Handmade 400W
• Output transformer: Handmade 8 layer windings
• Driving stage tubes: 2x12AU7
• Phono stage tubes: 2x12AX7
• Power tubes: 2x6550

Specifications

• Output Power: 2x15W (6550)
• Input impedance: 50 kOhm
• Output impedance: 6 Ohm
• Input sensitivity: 350mV
• Signal to Noise Ratio (SNR): 81db
• Channel separation: 67db
• Rise time: 6us at 10kHz
• Harmonic distortion: 10W at 1kHz 1.20%
• Frequency response: -3db 10Hz-47000Hz
• Power supply energy: 100Joule
• Power consumption: 300W
• Weight: 20kgr
• Dimensions (WxDxH):  46x36x23 cm
