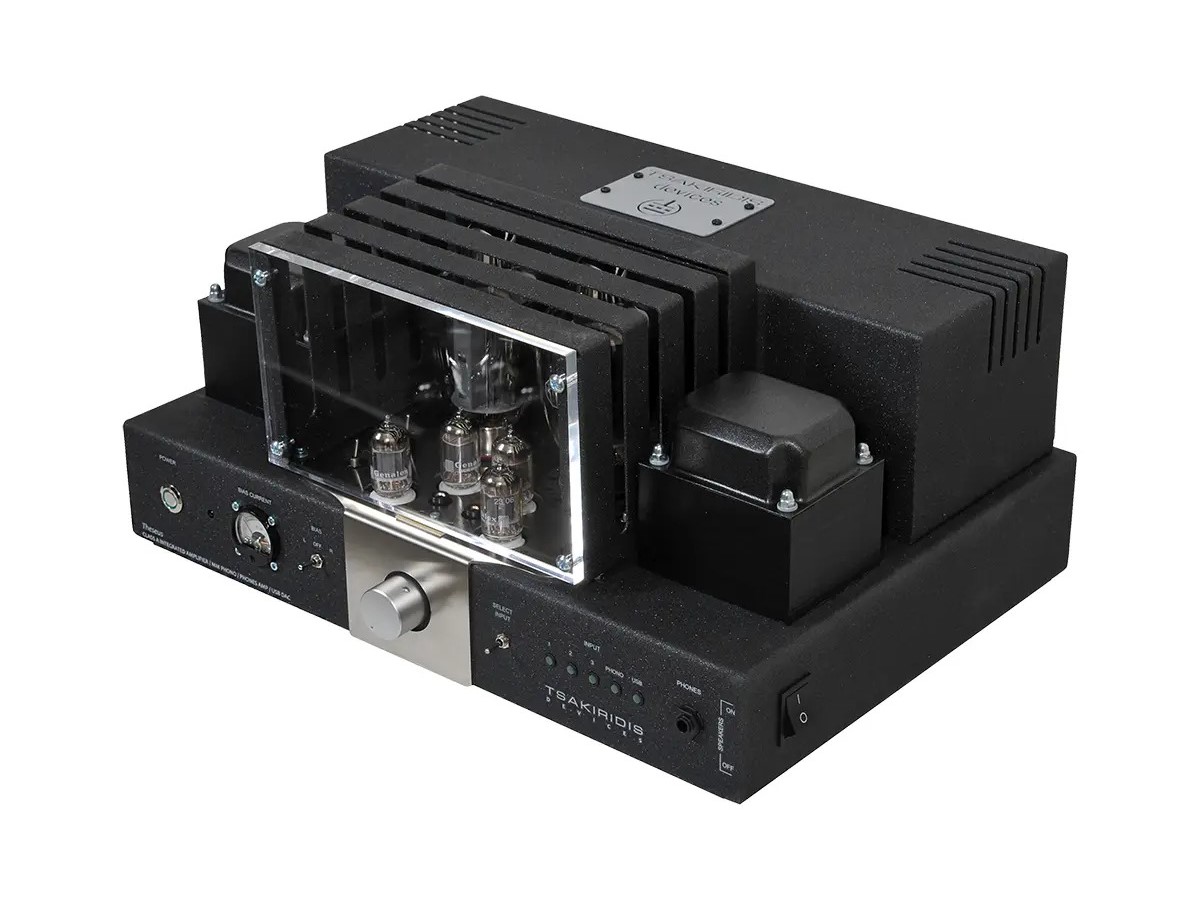

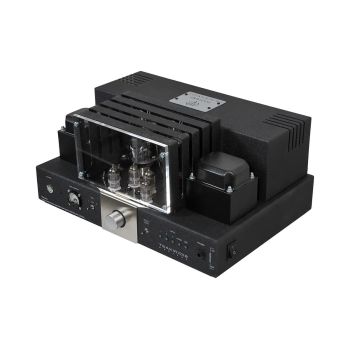

O Tsakiridis Devices Theseus KT170 ειναι ολοκληρωμενος ενισχυτης καθαρης ταξης Α, 2x30 wrms με λυχνιες KT170. Διαθετει ενσωματωμενο phono stage MM και USB DAC. Εισοδοι: 1x Phono, 1x USB-B και 3x Line. Η εκδοση Ultima διαθετει μετασχηματιστες με πυρηνα 17.000 Gauss, πυκνωτες Mundorf Evo Silver-Gold, ασημοκολληση παντου, υψηλης ποιοτητας αντιστασεις και ακροδεκτες ηχειων WBT 0703 Nextgen.

Δυνατοτητα ακροασης, ανταλλαγης και δοσεων.

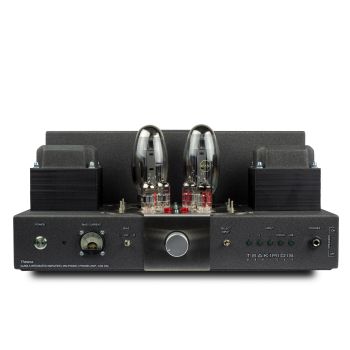

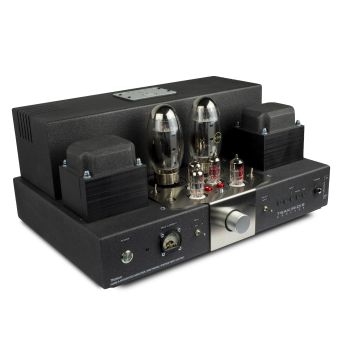

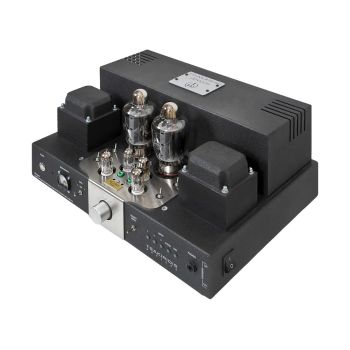

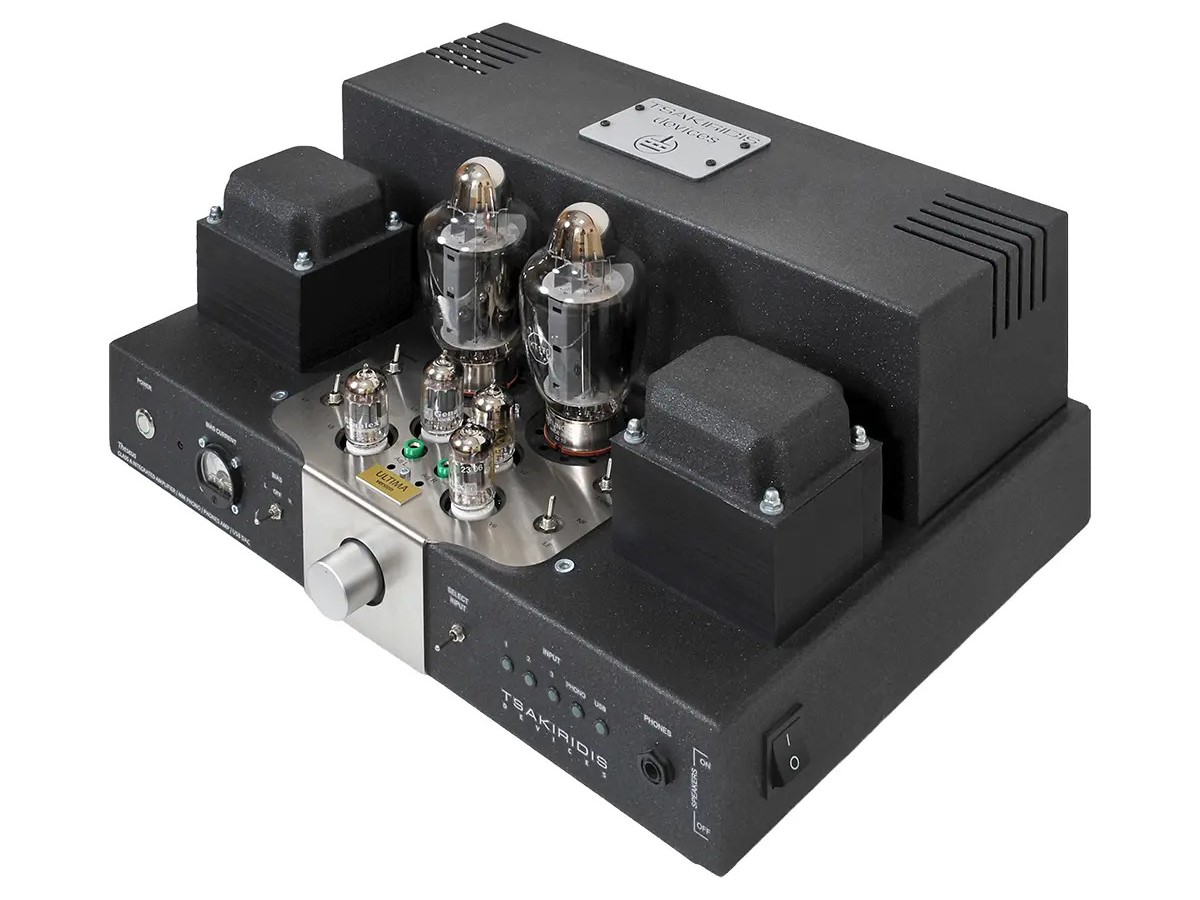

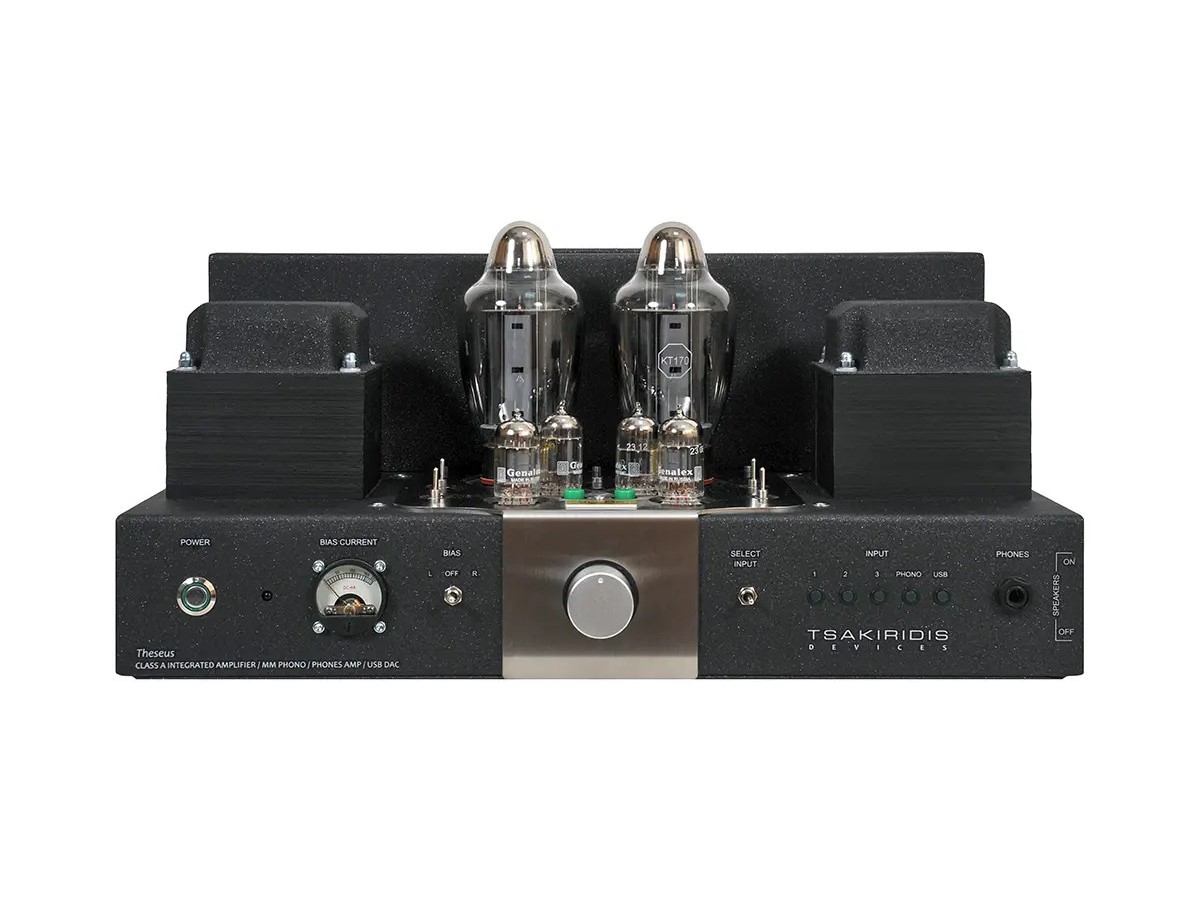

 A class A integrated tube amplifier which gives a superior sound quality foe pure audio lovers. As a class A amplifier Theseus Ultima requires high sensitivity loudspeakers to unfold its virtues.
Theseus Ultima provides an MM tube phono stage, three line inputs and a USB DAC.

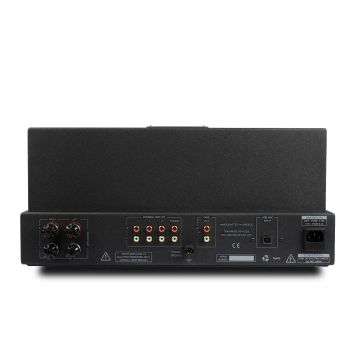

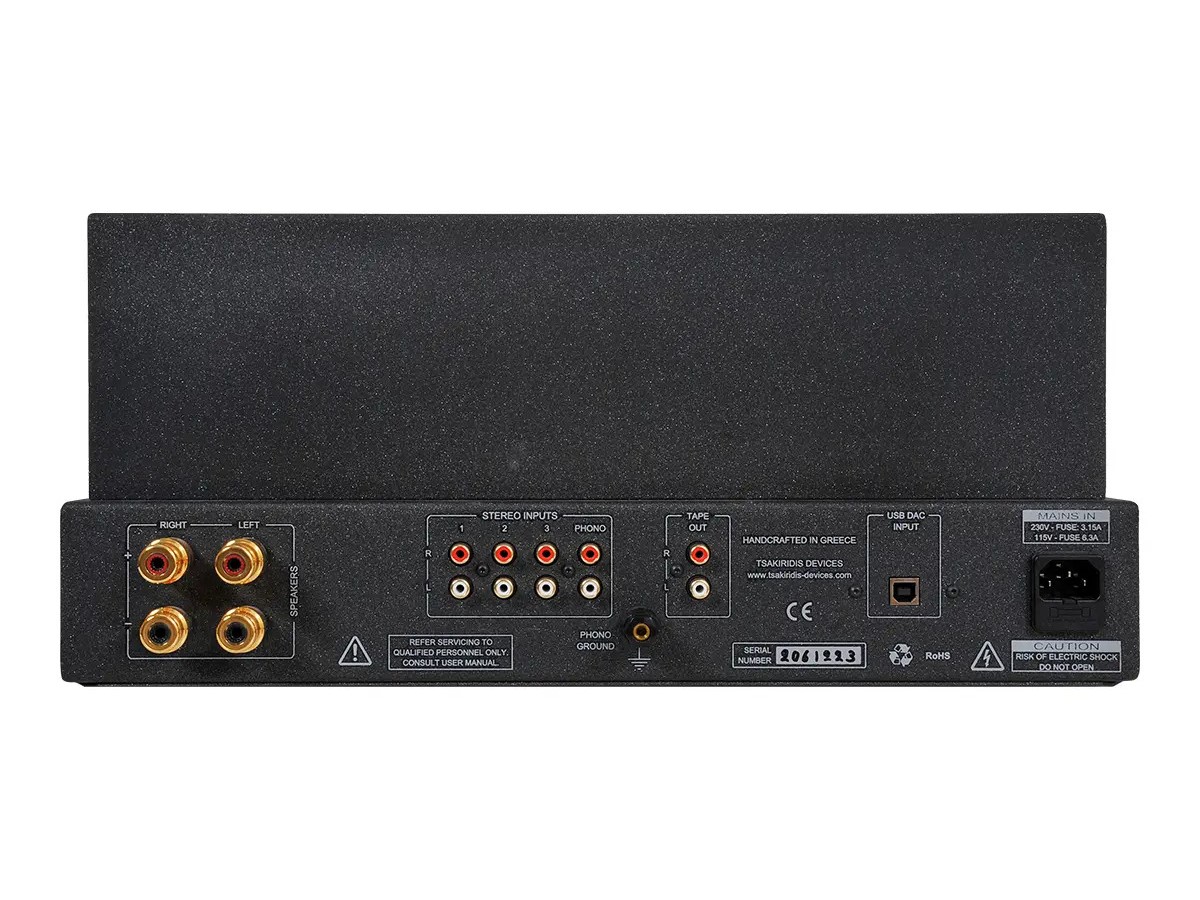

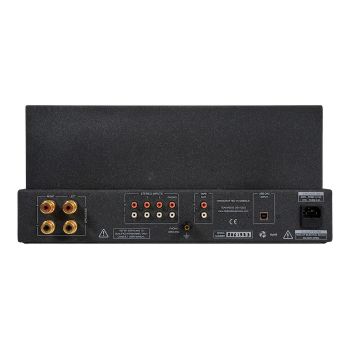

 Gold plated RCA connectors are implemented for the signal inputs/output and high quality binding posts for the loudspeakers. For the volume control the classic blue Alps is used.
 An elegant remote control in aluminum case offers you control over all the functions of Theseus Ultima integrated amplifier. Volume control, input selection and mute.

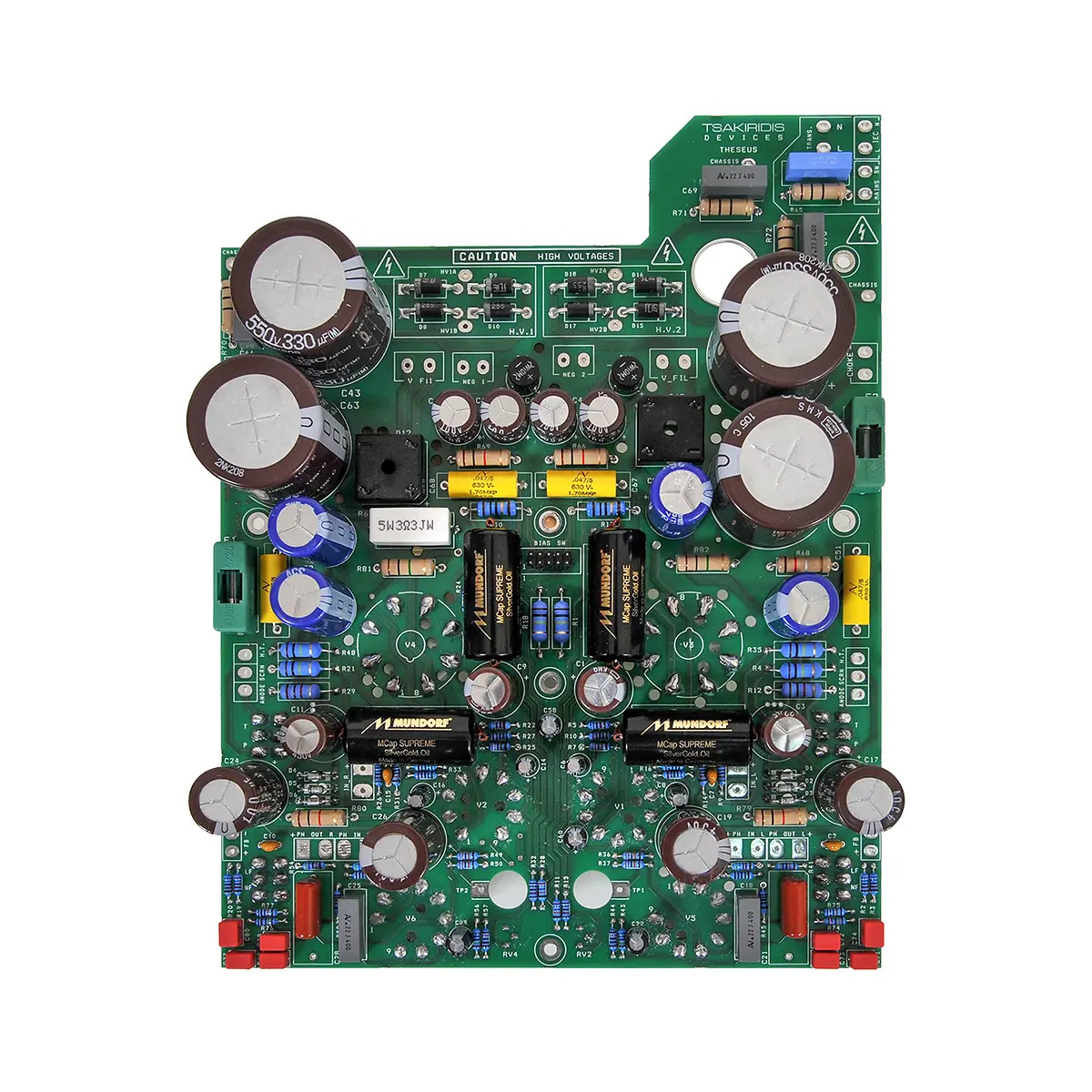

 Carefully selected values and types of the electronic components contribute to the reliable circuits operation and the high sound quality of the amplifier. Metal film resistors and premium quality oil capacitors (Mundorf Supreme Silver Gold Oil – Rike Ausdio QCap4 Copper Oil) on the signal path are used in Theseus Ultima. Along with the premium quality tubes Theseus Ultima achives a high-end sound quality. The meticulous PCB design ensures excellent behavior in SNR, distortion and channel separation. Inner signal wiring with high quality shielded signal cable. Power wiring uses high quality copper cables of more-than-needed AWG gauge, to achieve low impedance power transfer. All power cables are twisted in pairs to minimize the electromagnetic interference.

 The handmade 8 layer output transformers with high quality copper wire and core material enable the amplifier to reveal an excellent sound stage and the slightest music details through the entire audio spectrum to give you a unique audio experience. Made by us and tested thoroughly for quality and reliability.
 The same applies to the power transformer and the chokes. The positioning of the transformers and chokes is such that minimizes the magnetic coupling between power and output transformers.

Ultima Differences than other Theseus

• Mundorf evo silver gold oil signal capacitors.
• 17000 Gauss transformers Core.
• Silver soldered.
• High quality cathode and grid resistors.
• WBT-0703 Nextgen speaker connectors.

Features

• Inputs: 3 line inputs
• Phono input: MM cartridge
• Outputs: 1 Tape output
• Other connections: 1 USB DAC input
• Input selection: High grade signal relays
• Input/Output connectors: RCA gold plated
• Speaker connectors: WBT-0710 Next Gen
• Remote control: Yes
• Volume control: Blue Alps
• Power supply capacitors: High quality Long life Capacitors
• Signal capacitors: High quality Oil Capacitors (Mundorf / Rike Audio)
• Power resistors: Metal film 5% tolerance
• Low power resistors: Metal film 1% tolerance
• Power transformer: Handmade 400W
• Output transformer: Handmade 8 layer 6N copper high quality core
• Driving stage tubes: 2x12AU7
• Phono stage tubes: 2x12AX7
• Power tubes: 2xKT170

Specifications

• Output Power: 2x30W (KT170)
• Input impedance: 50 kOhm
• Output impedance: 6 Ohm
• Input sensitivity: 350mV
• Signal to Noise Ratio (SNR): 86db
• Channel separation: 68db
• Rise time: 5us at 10kHz
• Harmonic distortion: 10W at 1kHz 1.00%
• Frequency response: -3db 5Hz-76000Hz
• Power supply energy: 100Joule
• Power consumption: 300W
• Weight: 20kgr
• Dimensions (WxDxH):  46x36x23 cm
