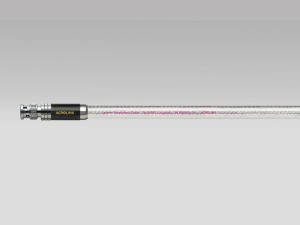

To Acrolink 7N-D5050 BNC ειναι ενα ψηφιακο ομοαξονικο καλωδιο 75Ω, τερματισμενο με βυσματα BNC, κατασκευασμενο απο stressfree copper 7N (99,99999% pure).

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

Cable Materials & Specifications

• Conductor: 7N Cu D.U.C.C Stressfree 0.26ø x 19 strands
• Insulation: Poly Tetra Fluoro Ethylene Teflon tape + Polyethylen
• Shielding: Copper foil tape + sliver plated braided copper wire
• Outer sleeve: Anti UV Polyurethane
• Conductor resistance: 16 mΩ/m
• Electrostatic capacitance: 68 pF/m
• Impedance : 75 Ω
• Cable diameter: 10.0mm

BNC connector Specifications

• Center contact pin: Gold plated phosphor bronze
• Outer conect part: Delrin
• Outer body: Brass + Aluminum + carbon fiber

UEW stands for Urethane Enameled Wire.
Standard length of 7N-A2070 Leggenda series are 1.0m and 1.5m.
