Η Grado Lineage Epoch-4 ειναι κεφαλη Flux-Bridger, με sapphire cantilever και διαμορφωση βελονας elliptical shibata. Εξοδος 1mV.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

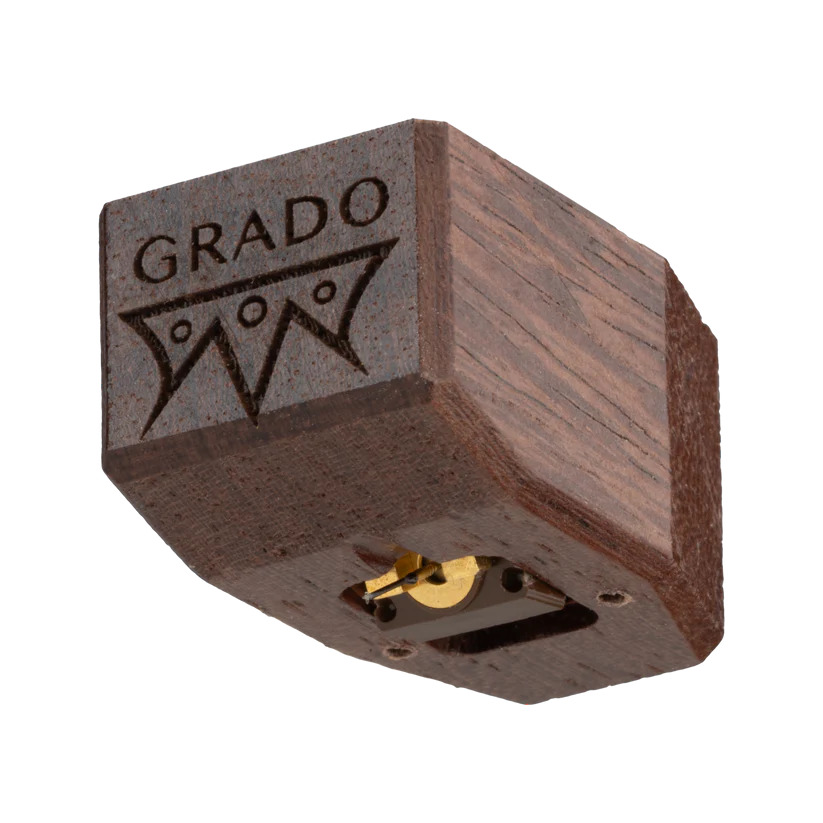

The Grado Epoch4 represents the pinnacle of the company’s moving iron cartridge design, engineered with an obsessive focus on mechanical precision and low-mass architecture. Its hand-crafted Brazilian ebony wood body is not only aesthetically distinctive but also acoustically critical, providing superior damping characteristics that minimize resonances and coloration. The ultra-low mass generating system, combined with Grado’s refined magnetic circuit, delivers exceptional transient response, microdynamic accuracy, and a highly coherent soundstage presentation that approaches master tape realism.

At the heart of the Epoch4 lies a sapphire cantilever paired with a finely polished Shibata diamond stylus, ensuring outstanding groove tracing accuracy and extended high-frequency retrieval up to 75 kHz. The cartridge’s optimized compliance and low internal impedance allow for excellent tracking stability and compatibility with a wide range of tonearms, while maintaining superb channel separation and phase integrity. The result is an analog playback experience defined by effortless detail, natural tonal balance, and an expansive, holographic imaging capability.

Specifications

• Body: Brazilian Ebony Wood
• Cantilever: Sapphire / Shibata Diamond
• Output: 1.0 mV @ 5 CMV (45°)
• Controlled Frequency Response: 5 Hz – 75 KHz
• Channel Separation: Avg. 35 dB (10–30 KHz)
• Input Load: 10–47k ohms
• Inductance: 8 mH
• Resistance: 95 ohms
• Cartridge Weight: 10.5 grams
• Tracking Force: 1.6 – 1.9 grams
• Compliance: 20 μm/mN
