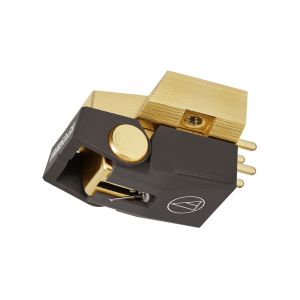

Η AudioTechnica AT-VM750xSH ειναι κεφαλη διπλου μαγνητη, για πικαπ με γυμνη shibata βελονα (nudeshibata), με boron cantilever. Εξοδος 3.7 mV.

Δυνατοτητα δοσεων.

Like all our MM cartridges, this updated design closely mirrors the cutter head used to make the vinyl master. It utilises two magnets, positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. But the new VMx series also introduces material and design changes to further refine the sound, offering responsive playback that is especially sensitive to the dynamism of musical expression.

Specifications

• Frequency Response: 20 – 27,000 Hz
• Channel Separation: 26 dB (1 kHz)
• Vertical Tracking Angle: 20°
• Tracking Force
  • 1.8 – 2.2 g
  • 2.0 g standard

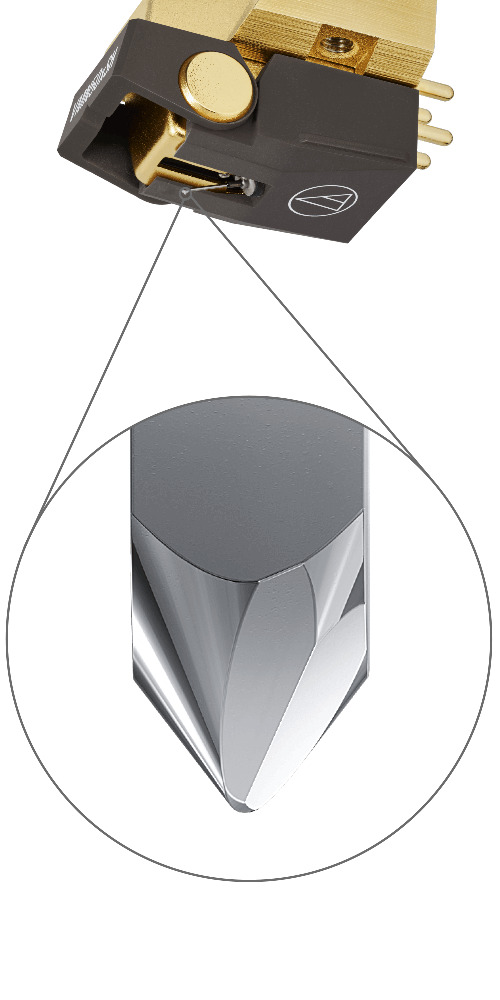

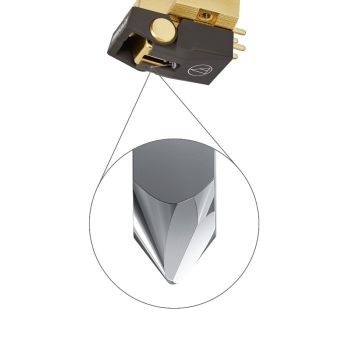

• Stylus Construction: Nude Shibata
• Recommended Load Impedance: 47 kΩ
• Coil Impedance: 3.2 kΩ (1 kHz)
• DC Resistance: 750 Ω
• Coil Inductance: 480 mH (1 kHz)
• Output Voltage: 3.7 mV (1 kHz, 5 cm/sec.)
• Output Balance: 1.0 dB (1 kHz)
• Cantilever: 0.28 mm diameter solid boron
• Compliance
  • Static: 20 × 10?? cm/dyne
  • Dynamic: 7 × 10?? cm/dyne (100 Hz)
• Dimensions
  • Height: 29 mm
  • Width: 18.3 mm
  • Depth: 17.5 mm
• Accessories Included
  • Cartridge installation screws (M2.6)
  • 10 mm × 2
  • 8 mm × 2
  • 5 mm × 2
  • Washer × 2
  • Non-magnetic screwdriver
  • Brush
• Threaded Hole: M2.6 × 2
• Recommended Load Capacitance: 150 – 250 pF
• Replacement Stylus: AT-VMN50xSH (sold separately)
• Stylus Curvature Radius: 2.7 × 0.26 mil
• Type: VM
• Weight: 8.8 g
• Notes
  • The replacement stylus is compatible with AT-VMx series products.
  • 5 mm cartridge installation screws secure the cartridge inside the box during purchase and should be retained.
  • Specifications may change without notice for product improvement.

Compatible Stylus (Excludes mono models)

• AT-VMN10xCB (conical / bonded / aluminium cantilever)
• AT-VMN20xEB (elliptical / bonded / aluminium cantilever)
• AT-VMN30xEN (elliptical / nude / aluminium cantilever)
• AT-VMN40xML (microlinear / nude / aluminium cantilever)
• AT-VMN45xML (microlinear / nude / boron cantilever)
• AT-VMN50xSH (Shibata / nude / boron cantilever)
• AT-VMN60xSL (special line contact / nude / boron cantilever)

Important Notice: Since all AT-VMx and VM Series cartridges share the same body design and have a removable stylus, you can use almost any AT-VMNx or VMN replacement stylus* with any VMx or VM cartridge for easy experimentation with sound characteristics.
