Το Martin Audio CDD10 ειναι επαγγελματικο ηχειο 8Ω, 2 δρομων με 1x 10" woofer και 1x 1" polyimide dome tweeter.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

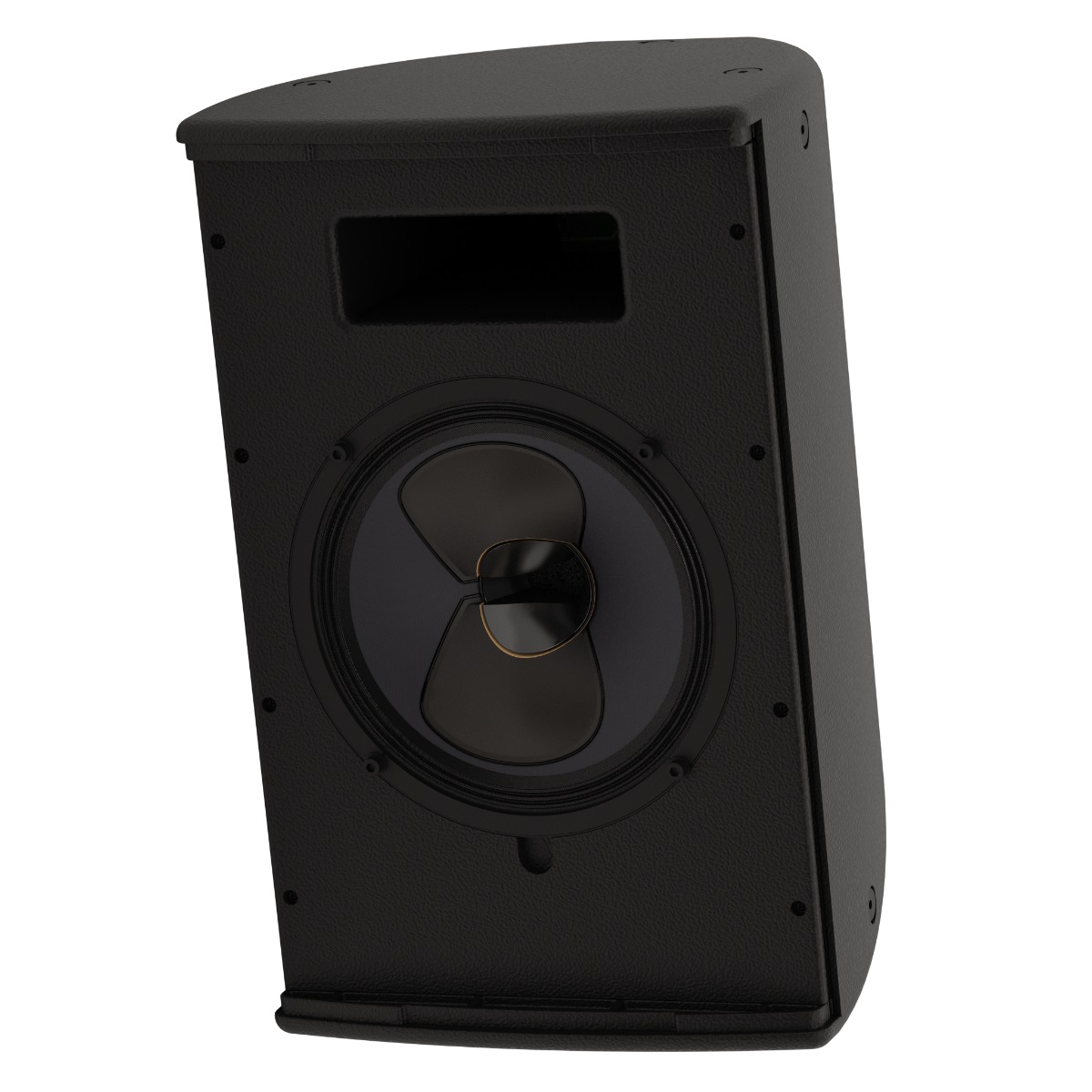

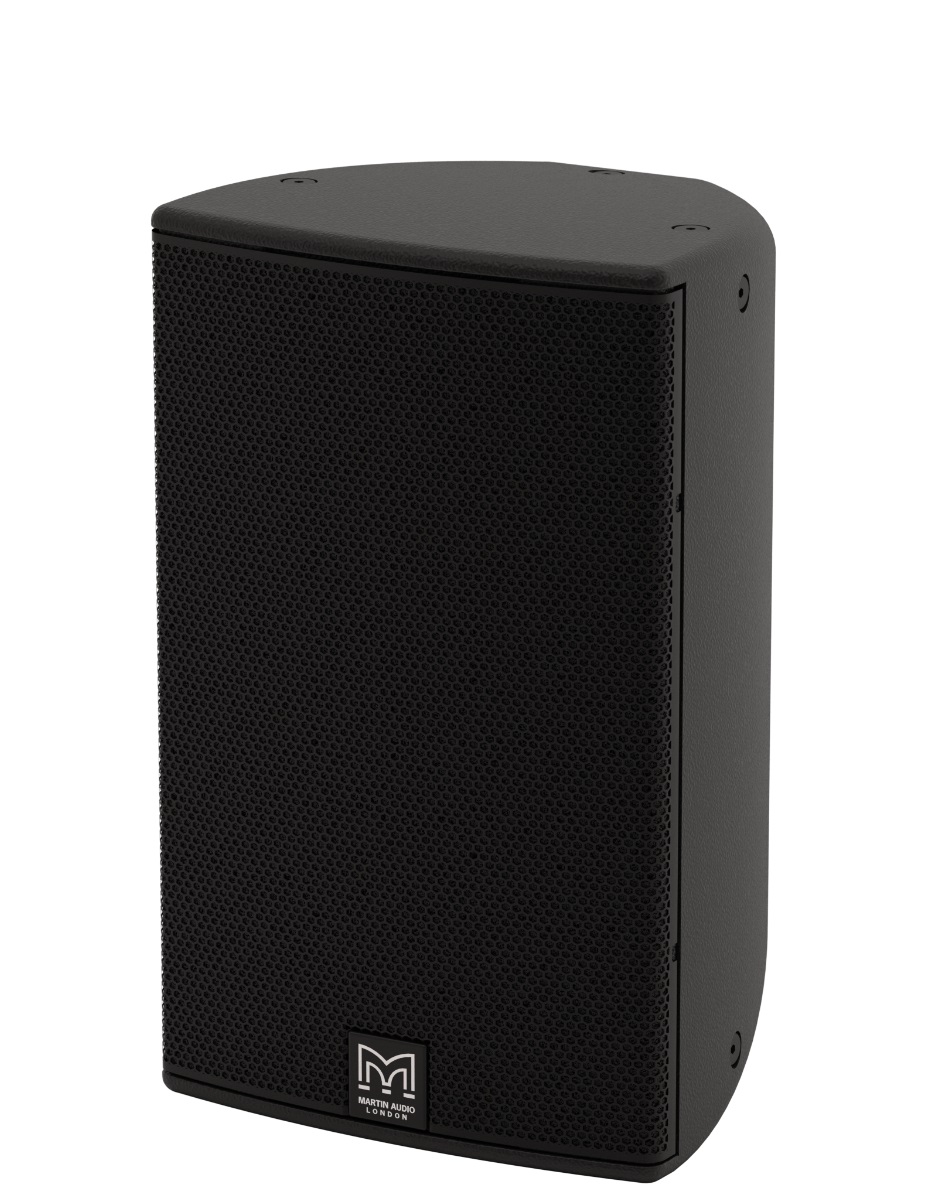

The CDD10 is a very compact two-way passive loudspeaker system which utilises a 10” (250mm) LF/1” (25mm) exit HF Coaxial Differential Dispersion driver. It is uniquely placed to meet the foreground requirements of music bars and clubs, as well as the varied architectural applications that require upfront sound levels from a very compact enclosure. Use with a SX118 or CX218 subwoofer will enable the CDD10 to operate as small dancefloor system that is remarkably powerful for its size.

Applications

• Live Music Clubs and Bars
• Nightclubs
• Bars and Restaurants
• Museums and AV Spaces
• Convention Centres
• Hotels
• Retail Outlets
• Leisure Centres
• Houses of Worship

Features

• Compact, CDD™ passive two-way system
• Coaxial Differential Dispersion™ technology
• Elegant UPM Formi composite enclosure
• User-rotatable coaxial drive unit
• Vertical and horizontal mounting options
• Screw-free perforated steel grille
• 8Ω nominal impedance
• Discreet mounting accessories
• Integral inserts for eyebolt suspension
• Black or white standard colour options

Specifications

• Type: Compact, coaxial Differential Dispersion passive two-way system
• Frequency Response: 65 Hz – 20 kHz (±3 dB), -10 dB @ 55 Hz
• Driver:
  • LF: 10” (250 mm) / 2.5” (63.5 mm) voice coil, long excursion, shared ferrite motor with HF
  • HF: 1” (25 mm) exit / 1.4” (38 mm) voice coil, polyimide dome compression driver
• Rated Power: 250 W AES, 1000 W peak
• Sensitivity: 96 dB
• Maximum SPL: 120 dB continuous, 126 dB peak
• Nominal Impedance: 8 Ω
• Dispersion (-6 dB): 110°–75° horizontal, 60° vertical (user-rotatable)
• Crossover: 2 kHz passive
• Enclosure: 28 litre composite material
• Finish: Black or white textured paint
• Protective Grille: Perforated steel with scrim cloth backing (black or white)
• Connectors: Low-profile 20A push-lock
• Pin Connections: Input+, Input -, Link -, Link +
• Fittings:
  • 6 × M8 inserts for wall bracket
  • 10 × M8 fly points
• Dimensions (W × H × D): 32.3 × 51.3 × 31.0 cm
• Weight: 15.3 kg
