Το Martin Audio CDD12 ειναι επαγγελματικο ηχειο 8Ω, 2 δρομων με 1x 12" woofer και 1x 1" polyimide dome tweeter.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

The CDD12 is a compact, passive two-way system designed for installations that require high output levels. Its high-specification 12” (300mm) LF /1” exit HF Coaxial Differential Dispersion driver delivers perfect sound across the audience over medium-throw distances.

Applications

• Live Music Clubs and Bars
• Nightclubs
• Bars and Restaurants
• Museums and AV Spaces
• Convention Centres
• Hotels
• Retail Outlets
• Leisure Centres
• Houses of Worship

Features

• Compact, CDD™ passive two-way system
• Coaxial Differential Dispersion™ technology
• Elegant UPM Formi composite enclosure

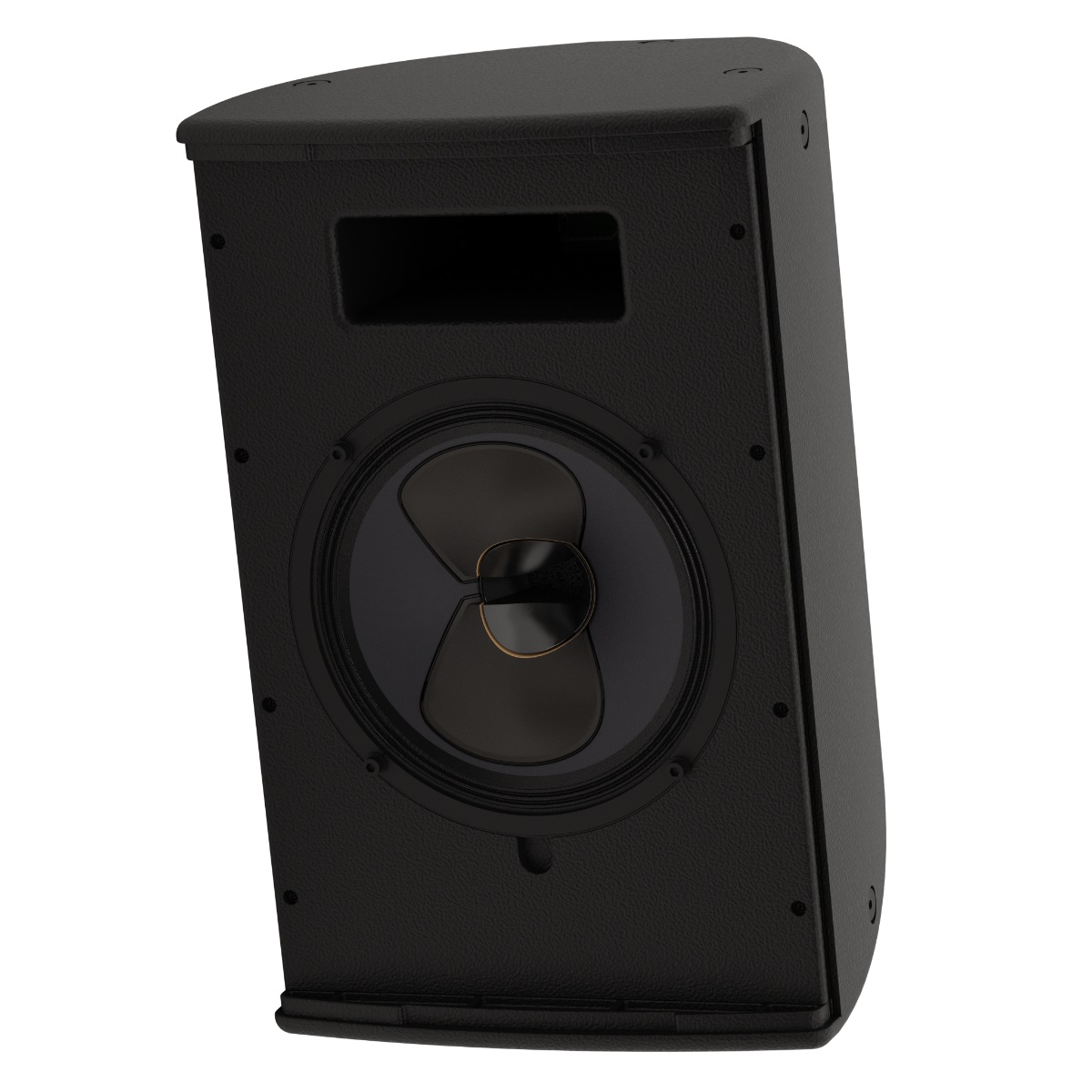

• User-rotatable coaxial drive unit
• Vertical and horizontal mounting options
• Screw-free perforated steel grille
• 8Ω nominal impedance
• Discreet mounting accessories
• Integral inserts for eyebolt suspension
• Black or white standard colour options

Specifications

• Type: Compact, high-output, coaxial Differential Dispersion passive two-way system
• Frequency Response: 62 Hz – 20 kHz (±3 dB), -10 dB @ 50 Hz
• Driver:
  • LF: 12” (300 mm) / 2.5” (63.5 mm) voice coil, long excursion, shared ferrite motor with HF
  • HF: 1” (25 mm) exit / 1.7” (44 mm) voice coil, polyimide dome compression driver
• Rated Power: 300 W AES, 1200 W peak
• Sensitivity: 97 dB
• Maximum SPL: 122 dB continuous, 128 dB peak
• Nominal Impedance: 8 Ω
• Dispersion (-6 dB): 110°–60° horizontal, 60° vertical (user-rotatable)
• Crossover: 1.9 kHz passive
• Enclosure: 38 litre birch plywood
• Finish: Black or white textured paint
• Protective Grille: Perforated steel with scrim cloth backing (black or white)

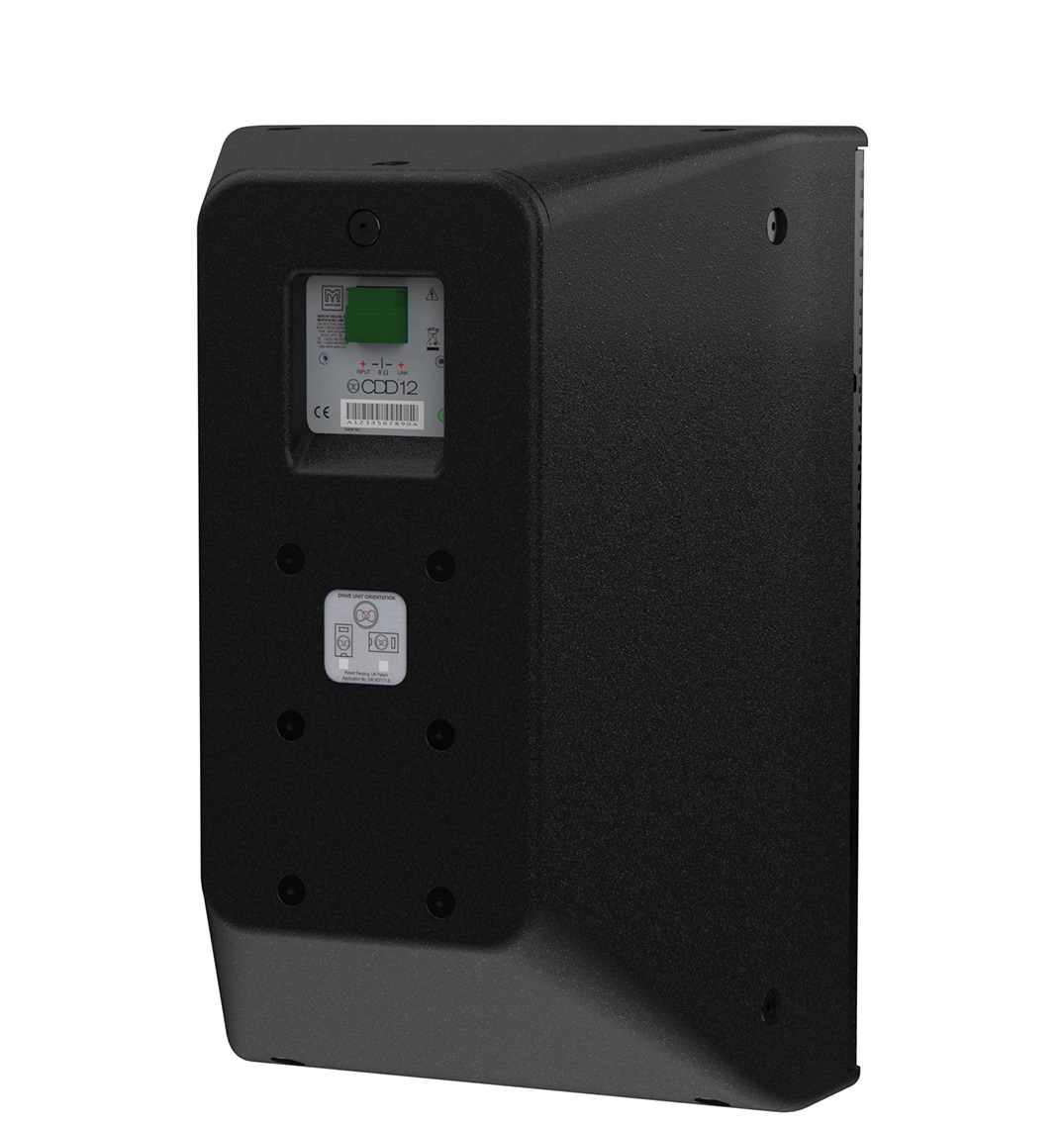

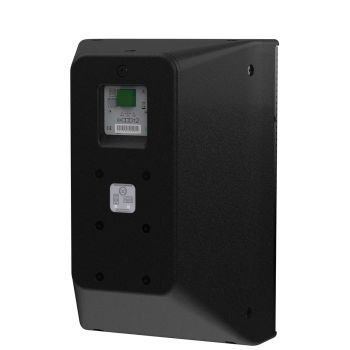

• Connectors: Low-profile 20A push-lock
• Pin Connections: Input+, Input -, Link -, Link +
• Fittings:
  • 6 × M8 inserts for wall bracket
  • 10 × M8 fly points
• Dimensions (W × H × D): 36.0 × 56.0 × 35.0 cm
• Weight: 19 kg
