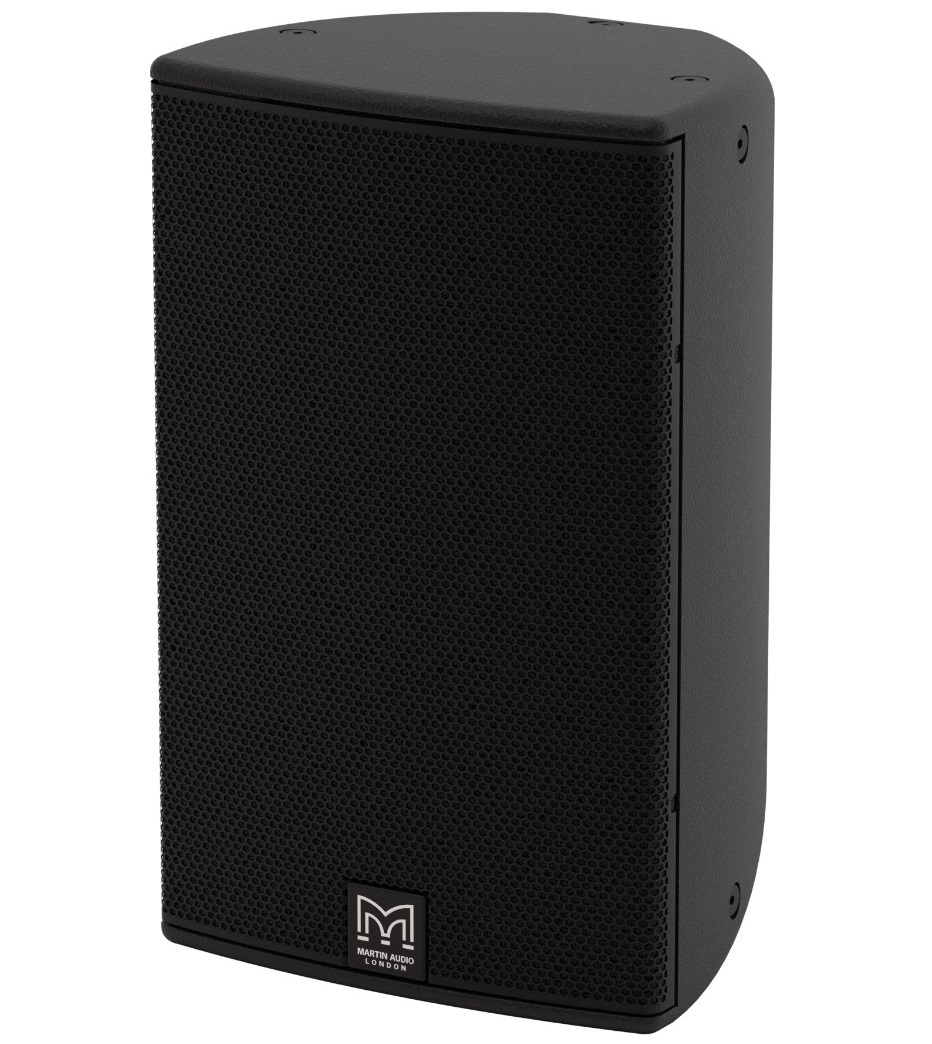

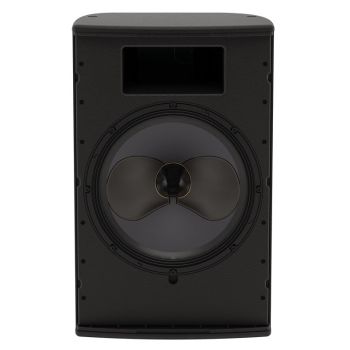

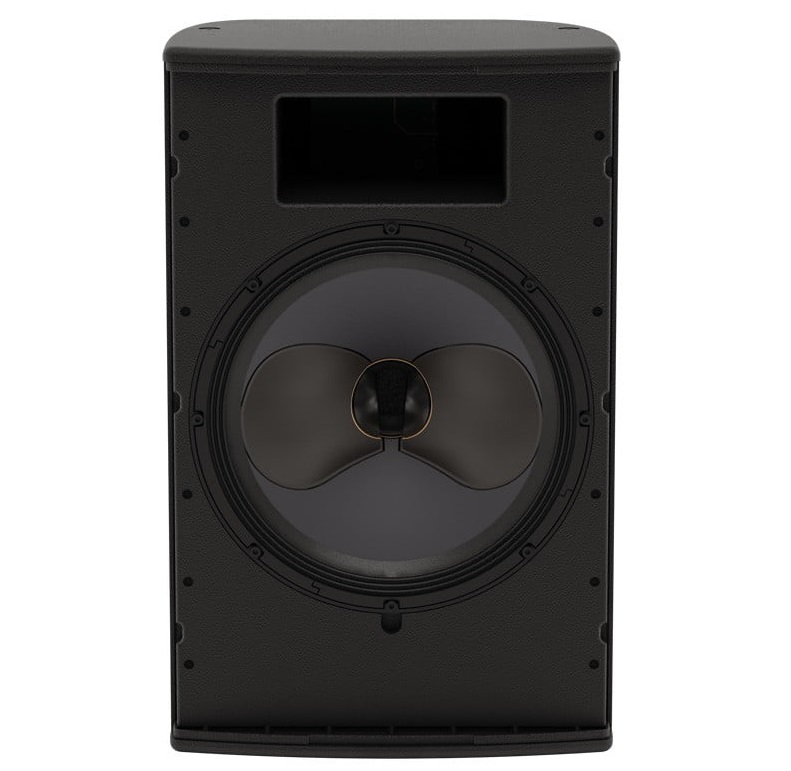

Το Martin Audio CDD15 ειναι επαγγελματικο ηχειο 8Ω, 2 δρομων με 1x 12" woofer και 1x 1.4" titanium compression dome.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

Applications

• Live Music Clubs and Bars
• Nightclubs
• Bars and Restaurants
• Museums and AV Spaces
• Convention Centres
• Hotels
• Retail Outlets
• Leisure Centres
• Houses of Worship

Features

• High-output, CDD™ passive two-way system
• Coaxial Differential Dispersion™ technology
• Elegant birch plywood enclosure
• User-rotatable coaxial drive unit
• Vertical and horizontal mounting options
• Screw-free perforated steel grille
• 8Ω nominal impedance
• Integral inserts for eyebolt suspension
• Black or white standard colour options

Specifications

• Type: High-output, coaxial Differential Dispersion passive two-way system
• Frequency Response: 55 Hz – 18 kHz (±3 dB), -10 dB @ 45 Hz
• Driver:
  • LF: 15” (380 mm) / 3” (75 mm) voice coil, long excursion, shared ferrite motor with HF
  • HF: 1.4” (36 mm) exit / 3” (75 mm) voice coil, titanium dome compression driver
• Rated Power: 400 W AES, 1600 W peak
• Sensitivity: 100 dB
• Maximum SPL: 126 dB continuous, 132 dB peak
• Nominal Impedance: 8 Ω
• Dispersion (-6 dB): 100°–60° horizontal, 60° vertical (user-rotatable)
• Crossover: 1.6 kHz passive
• Enclosure: 68 litre birch plywood
• Finish: Black or white textured paint
• Protective Grille: Perforated steel with scrim cloth backing (black or white)

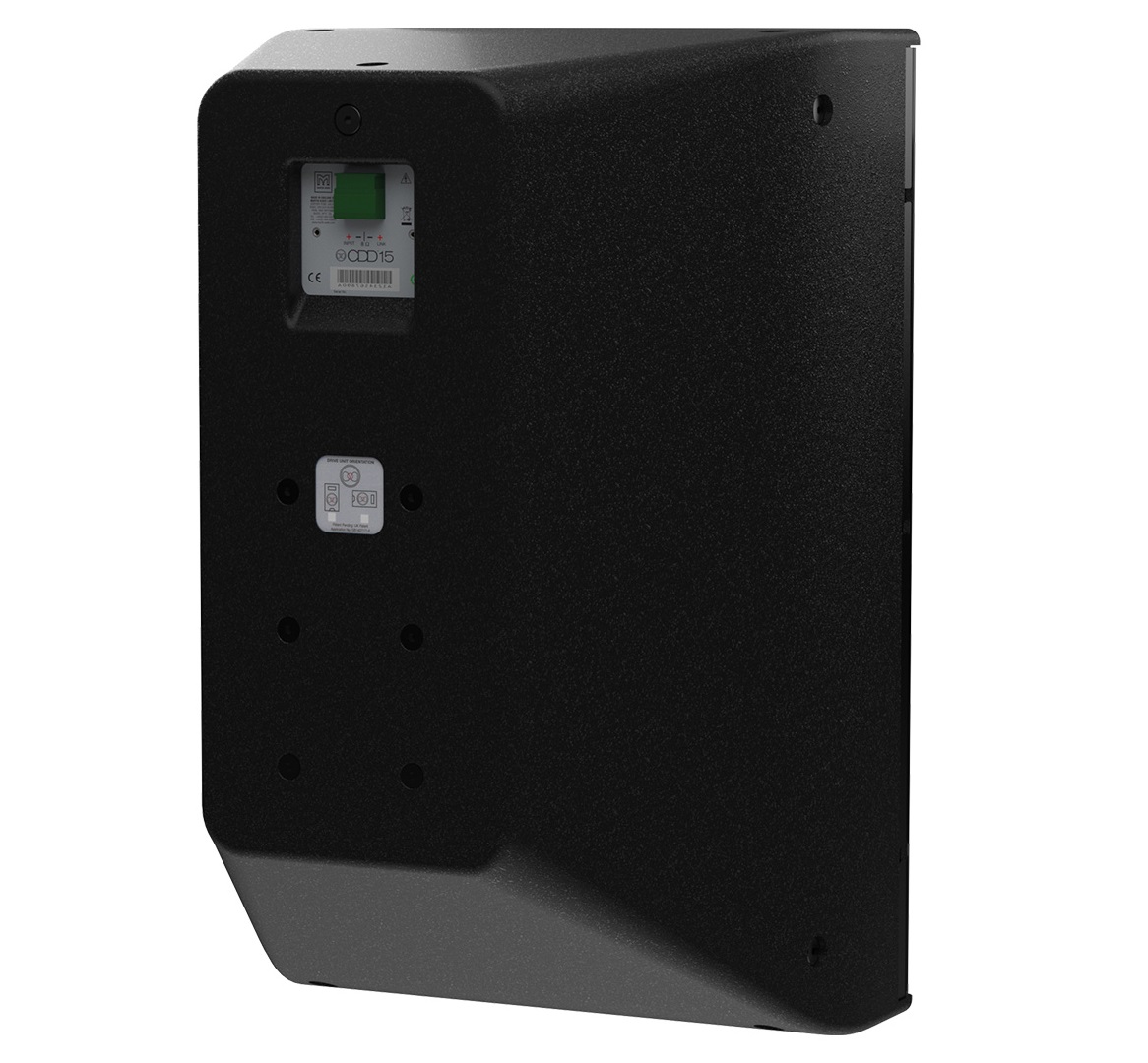

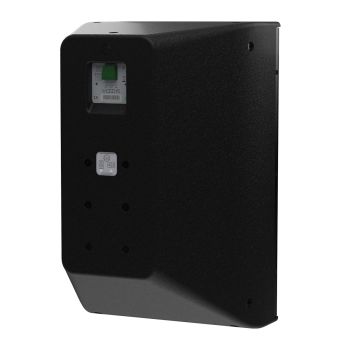

• Connectors: Low-profile 20A push-lock
• Pin Connections: Input+, Input -, Link -, Link +
• Fittings: 10 × M8 fly points
• Dimensions (W × H × D): 43.2 × 68.5 × 41.3 cm
• Weight: 26 kg
