Το Martin Audio CDD5 ειναι επαγγελματικο ηχειο 8Ω, 2 δρομων με 1x 5.25" woofer και 1x 0.75" fabric dome tweeter.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

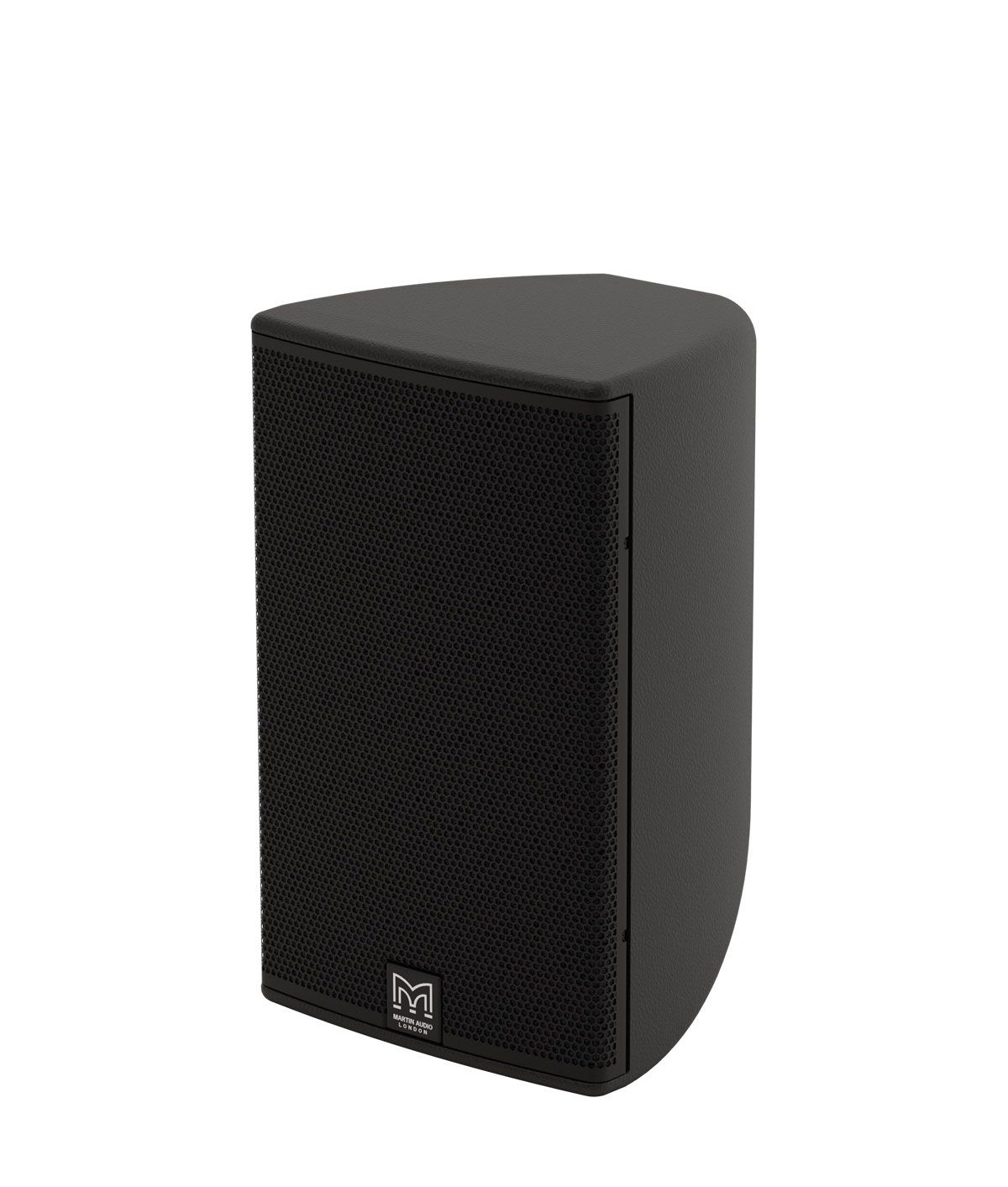

The CDD5 is a two-way passive micro speaker designed for discreet positioning in architectural installations — including bars, museums, foyers, concourses, exhibition centres and HoW. It features a unique, patent protected 5” (125mm) LF/0.7” (19mm) HF Coaxial Differential Dispersion driver in a rigid ABS moulded enclosure and is supplied with a dedicated omni-directional mounting bracket.

Applications

• Bars and Restaurants
• Museums and AV Spaces
• Convention Centres
• Hotels
• Retail Outlets
• Leisure Centres
• Houses of Worship

Features

• Ultra-Compact, CDD™ passive two-way system
• Coaxial Differential Dispersion™ technology
• Elegant ABS moulded enclosure
• User-rotatable coaxial drive unit
• Vertical and horizontal mounting options
• Screw-free perforated steel grille
• 8Ω nominal impedance
• Discreet mounting accessories
• Black or white standard colour options

Specifications

• Type: Ultra-compact, coaxial Differential Dispersion passive two-way system
• Frequency Response: 100 Hz – 20 kHz (±3 dB), -10 dB @ 70 Hz
• Driver:
  • LF: 5.25” (130 mm) / 1.25” (32 mm) voice coil, long excursion, ferrite motor
  • HF: 0.75” (19 mm) voice coil, fabric dome with neodymium motor
• Rated Power: 100 W AES, 400 W peak
• Sensitivity: 90 dB
• Maximum SPL: 110 dB continuous, 116 dB peak
• Nominal Impedance: 8 Ω
• Dispersion (-6 dB): 120°–90° horizontal, 80° vertical (user-rotatable)
• Crossover: 2.5 kHz passive
• Enclosure: 3 litre ABS
• Finish: Black or white
• Protective Grille: Perforated steel with scrim cloth backing (black or white)
• Connectors: Low-profile 13A push-lock
• Pin Connections: Input+, Input -, Link -, Link +
• Fittings: 6 × M5 inserts for wall / ceiling brackets
• Dimensions (W × H × D): 16.0 × 23.0 × 14.9 cm
• Weight: 3 kg
