FiiO DM13
Το FiiO DM13 ειναι ενα φορητο cd player (discman) με ενσωματωμενη επαναφορτιζομενη μπαταρια, με Bluetooth transmitter για συνδεση με ακουστικα bluetooth. Ενσυρματοι εξοδοι ακουστικων 3.3mm και 4.4mm. Εξοδος USB-C για cd ripping σε laptop/pc. Εξοδος SPIDF coaxial/optical.

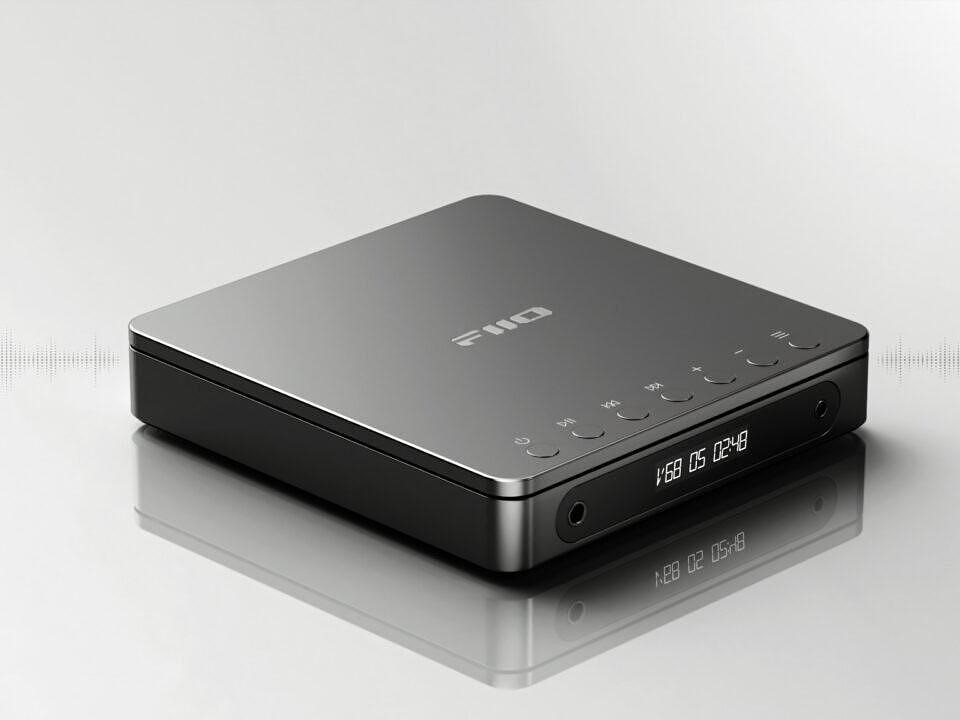

| FiiO DM13 black | Άμεση Διαθεσιμότητα | 183.00€ | |

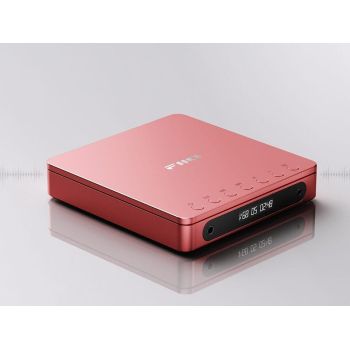

| FiiO DM13 red | Διαθεσιμότητα: 1-3 ημέρες | 183.00€ | |

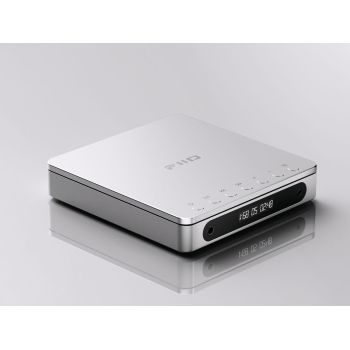

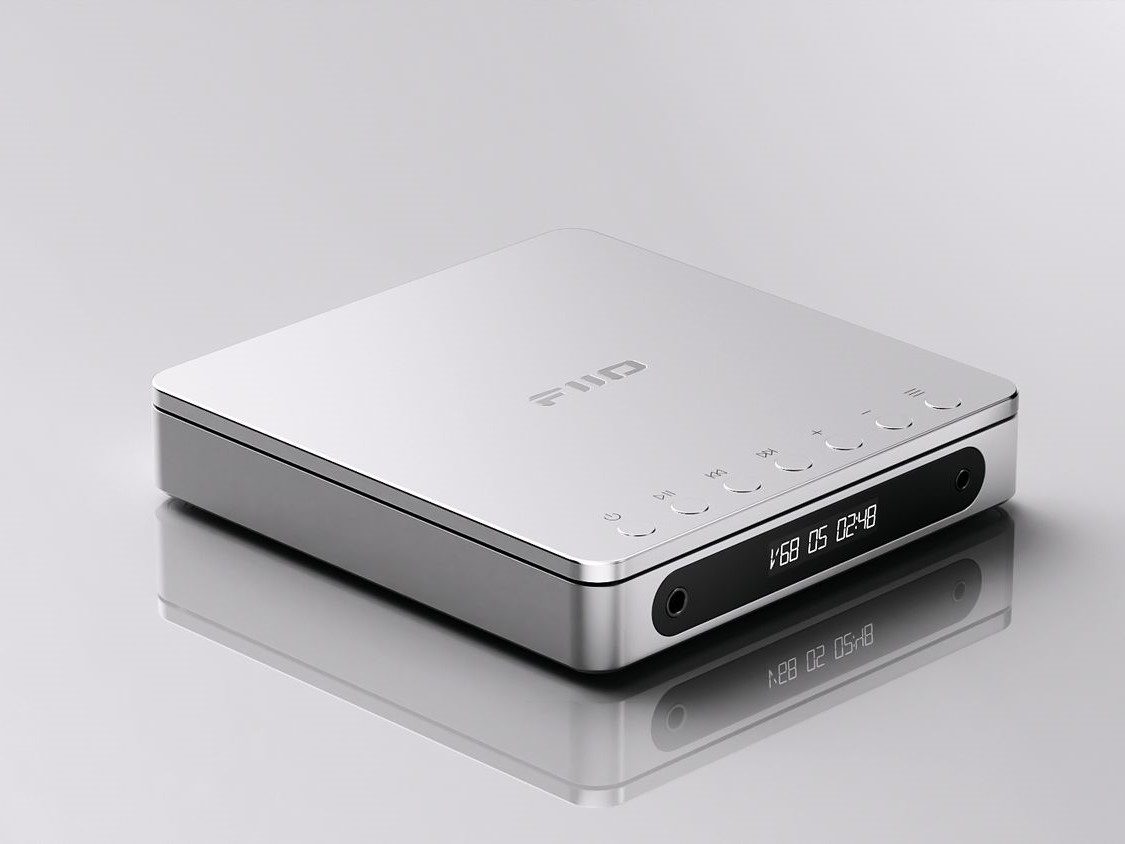

| FiiO DM13 silver | Διαθεσιμότητα: 1-3 ημέρες | 183.00€ | |

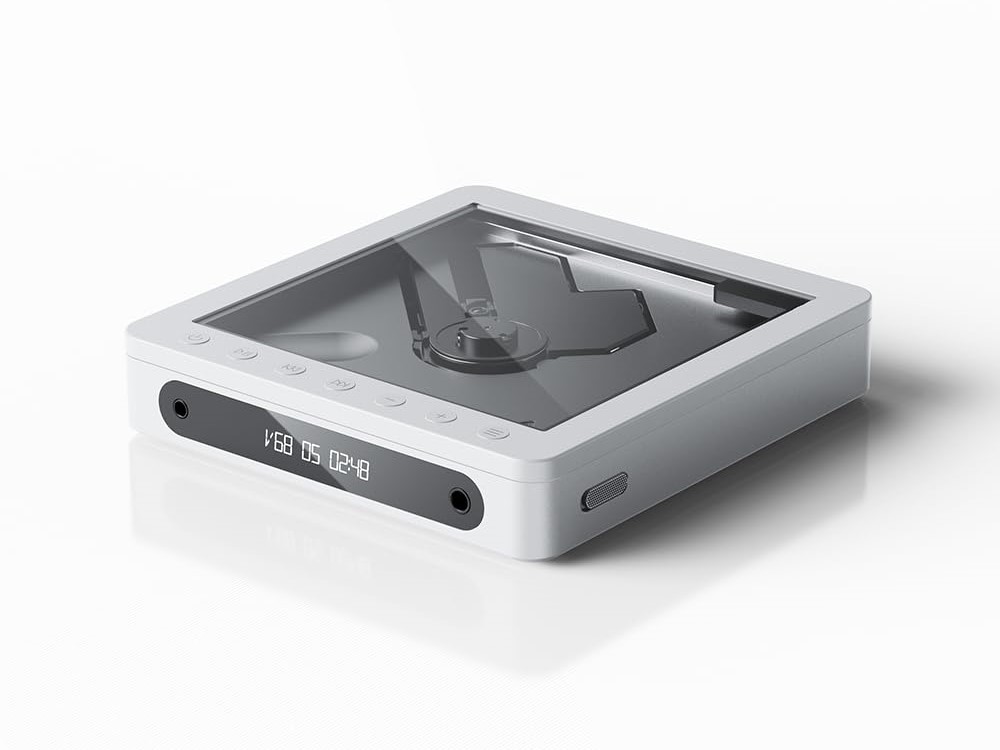

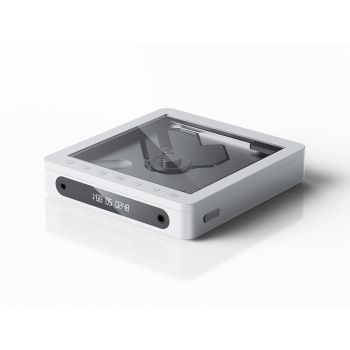

| FiiO DM13 Skyligt White | Άμεση Διαθεσιμότητα | 205.00€ |
ΚΟΣΤΟΣ ΑΠΟΣΤΟΛΗΣ ΟΠΟΥΔΗΠΟΤΕ ΣΤΗΝ ΕΛΛΑΔΑ: 3.50€
Το FiiO DM13 ειναι ενα φορητο cd player (discman) με ενσωματωμενη επαναφορτιζομενη μπαταρια, με Bluetooth transmitter για συνδεση με ακουστικα bluetooth. Ενσυρματοι εξοδοι ακουστικων 3.3mm και 4.4mm. Εξοδος USB-C για cd ripping σε laptop/pc. Εξοδος SPIDF coaxial/optical.
Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.
FIIO DM13 Portable Stereo CD Player Specifications
Main Features:
- Dual Cirrus Logic CS43198 DACs with low-noise HiFi SGM8262 headphone amps for high-quality audio.
- 99-level precision volume control directly handled by DAC.
- High power output: 180mW+180mW (32Ω, single-ended), 660mW+660mW (32Ω, balanced).
- Compact size: 144 x 137 x 27mm (excluding feet).
- ESP (Electronic Skip Protection) for stable playback during movement.
Display:
- Custom high-contrast LCD display showing volume, track number, and playback time.
Outputs & Connectivity:
- 3.5mm and 4.4mm headphone outputs (single-ended & balanced).
- Optical & Coaxial digital outputs for external DAC connection.
- Bluetooth (only available on Bluetooth version): Qualcomm platform supporting aptX, aptX LL, aptX HD, SBC.
USB CD Ripping:
- Supports ripping CDs to WAV files on external FAT32 storage (up to 32GB Type-C flash drive recommended).
CD Mechanism:
- Stable disc reading with reduced risk of scratches.
- Supports gapless playback, favorites, loop modes (single track, random, entire CD).
- Minor compatibility issues may occur with some CD-R/CD-RW discs due to media variations.
Power & Battery:
- 3750mAh, 3.8V pure cobalt lithium battery.
- Up to 10 hours continuous playback.
- Dual power modes: portable (battery), desktop (USB powered via D.MODE).
Materials & Build:
- Aluminum alloy body for durability and premium feel.
- Precision-machined hinge tested for 5000+ open/close cycles.
Available Colors:
- Silver, Black, Red, White, White Skylight.
Package Contents:
- DM13 unit x1
- Quick-start guide x1
- USB-A to Type-C charging & data cable x1
- 3.5mm coaxial adapter x1
- Warranty card x1
Notes: Bluetooth not available on standard version. Some playback limitations may apply for certain disc types.
| General Specifications | |||||||||
| Name/Model | DM13 | Hardware solution | SoC: CS6137, Op-amp: SGM8262*2, DAC: CS43198*2 | ||||||
| Output mode | PRE OUT/USB OUT/SPDIF OUT/BLUE OUT | Color | Silver, Black, White, Red, Transparent cover | ||||||
| Dimensions | About 137.5x144.7x28.7mm | Weight | About 450g | ||||||
| Display | 1.5-inch LCD | Volume control | Physical button | ||||||
| Bluetooth transmission | Supports SBC/aptX/aptX Low Latency/aptX HD | CD mechanism | Custom mechanism | ||||||
| Laser pickup | Custom laser pickup | Adaptive impedance | PO: 8~150Ω, BAL: 8~350Ω | ||||||
| Buttons and Ports | |||||||||
| Buttons and Ports | Physical buttons (Power on/off*1+ Play/Pause*1 + Previous track*1 + Next track*1 + Volume up*1 + Volume down*1 + Multifunction button*1) | USB | Type-C USB*2 (POWER IN*1+USB AUDIO*1, charging/data transfer) | ||||||
| Headphone output | Standard 3.5mm port | Single-ended line output | Standard 3.5mm port | ||||||
| Balanced headphone output | Standard 4.4mm port | Balanced line output | Standard 4.4mm port | ||||||
| Coaxial/Optical output | Standard 3.5mm port (shared LO) | Slide switch | ESP switch*1+D.MODE switch*1 | ||||||
| Power Supply Parameters | |||||||||
| Power supply | DC 5V/≥2A | Charging time | About 2.5h (5V 2A adapter) | ||||||
| Battery life and test conditions | |||||||||
| 3.5mm headphone out: ≥10h | |||||||||
| Audio input | Local CD playback | ESP switch | OFF | ||||||
| Volume level | 32 | D.MODE switch | OFF | ||||||
| Display status | OFF | Load | 32Ω | ||||||
| 4.4mm headphone out: ≥10h | |||||||||
| Audio input | Local CD playback | ESP | OFF | ||||||
| Volume level | 26 | D.MODE switch | OFF | ||||||
| Display status | OFF | Load | 32Ω | ||||||
| Audio Parameters | |||||||||
| Parts of performance and parameters of headphone output | |||||||||
| Output power | L+R≥270mW+270mW (16Ω, THD+N?1%) | Output impedance | <1Ω | ||||||
| L+R≥180mW+180mW (32Ω, THD+N?1%) | THD+N | ≤0.0025% (1kHz/0dB@32Ω) | |||||||
| L+R≥20mW+20mW (300Ω, THD+N?1%) | SNR | ≥120dB (A-weighted) | |||||||
| Crosstalk | ≥77dB (1kHz@32Ω) | Noise floor | ≤2.4μV (A-weighted) | ||||||
| Frequency response | 20Hz~20kHz: attenuation<2.3dB | Peak output voltage | 7Vp-p | ||||||
| Parts of performance and parameters of line output | |||||||||
| THD+N | ≤0.0026% (1kHz/0dB@10kΩ) | SNR | ≥113dB (A-weighted) | ||||||
| Crosstalk | ≥105dB (1kHz@10kΩ) | Noise floor | ≤4.3μV (A-weighted) | ||||||
| Frequency response | 20Hz~20kHz: attenuation<2.3dB | Line output level | 2.5Vrms | ||||||
| Parts of performance and parameters of balanced headphone output | |||||||||
| Output power | L+R≥620mW+620mW (16Ω , THD+N?1%) | Output impedance | <1.5Ω | ||||||
| L+R≥660mW+660mW (32Ω, THD+N?1%) | THD+N | ≤0.0024% (1kHz/0dB@32Ω) | |||||||
| L+R≥80mW+80mW (300Ω, THD+N?1%) | SNR | ≥124dB (A-weighted) | |||||||
| Crosstalk | ≥120dB (1kHz@32Ω) | Noise floor | ≤2.8μV (A-weighted) | ||||||
| Frequency response | 20Hz~20kHz: attenuation<2.3dB | Peak output voltage | 14 Vp-p | ||||||
| Parts of performance and parameters of balanced line output | |||||||||
| THD+N | ≤0.0022% (1kHz/0dB@10kΩ) | SNR | ≥124dB (A-weighted) | ||||||
| Crosstalk | ≥106dB (1kHz@10kΩ) | Noise floor | ≤3μV (A-weighted) | ||||||
| Frequency response | 20Hz~20kHz: attenuation<2.3dB | Line output level | 5Vrms | ||||||
