Οι Tsakiridis Devices Achilles ειναι ζευγος τριοδικων  τελικων μονφωνικων ενισχυτων class A, ισχυος 2x8 Watts με 300B.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

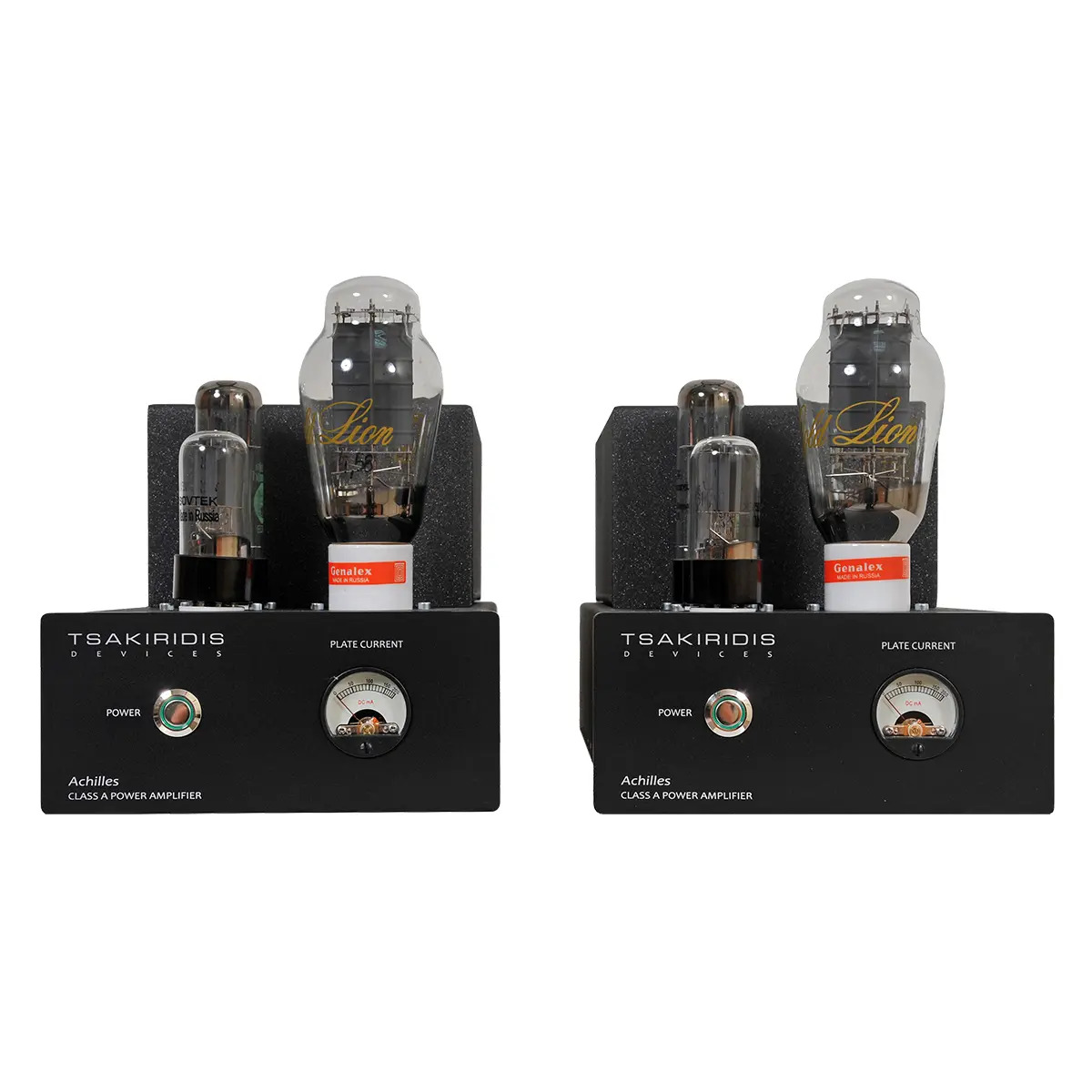

Achilles is a power amplifier in monoblock configuration. It’s design is a class A 300B triode amplifier with mu-stage driving circuit.
All electronic components are through hole type soldered by hand. Achilles utilizes our 8 layer handmade output transformers for superb sound quality.

The 8W of power per channel of Achilles requires high sensitivity loudspeakers to enjoy your music. The triode class A configuration of the 300B with the high linearity of the preamplification stage offer an unsurpassed audio experience to every audiophile.

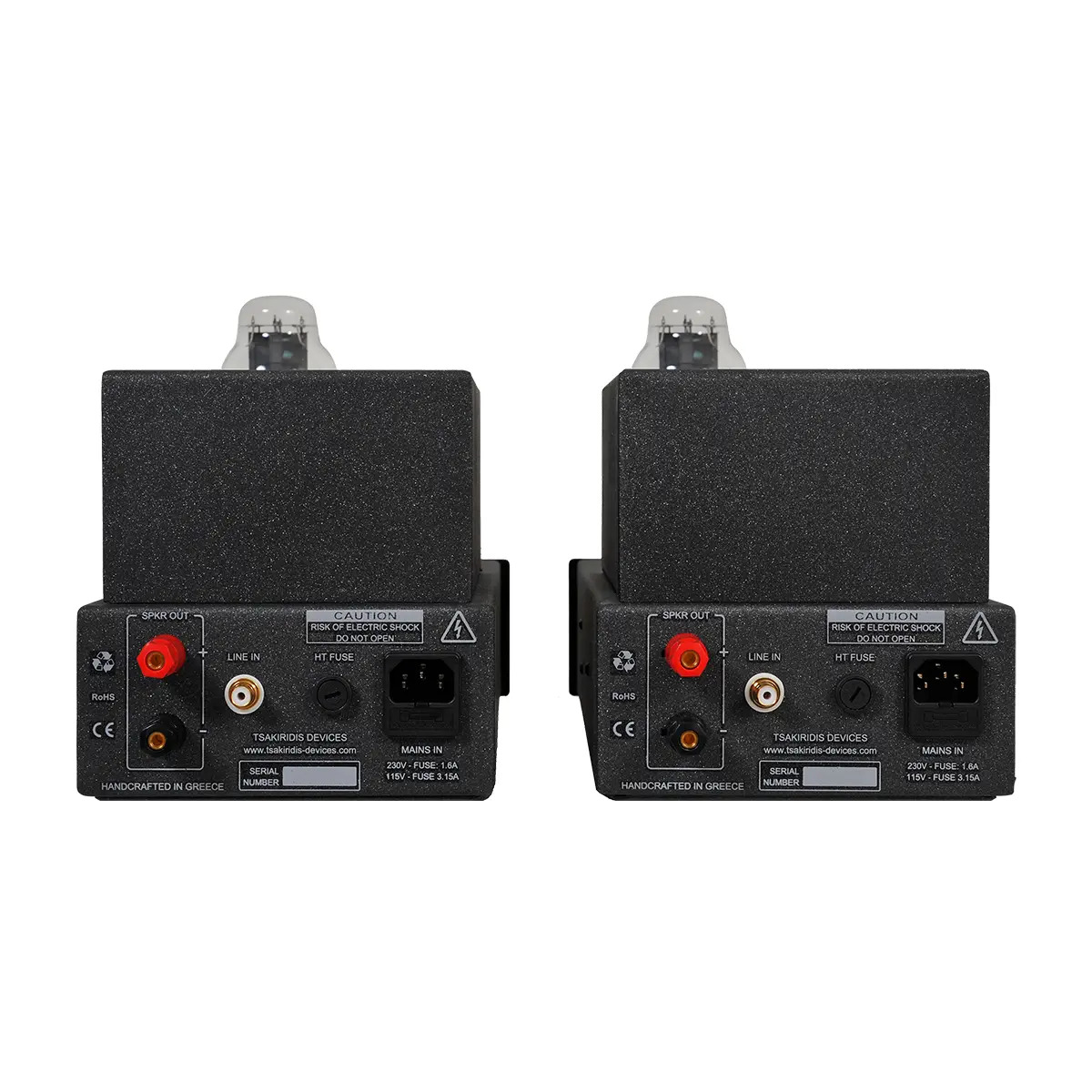

Gold plated RCA connectors are implemented for the signal input and high quality binding posts for the loudspeakers.
Carefully selected values and types of the electronic components contribute to the reliable circuits operation and the high sound quality of the amplifier. The meticulous PCB design ensures excellent behavior in SNR and distortion.
Inner signal wiring with high quality shielded signal cable. Power wiring uses high quality copper cables of more-than-needed AWG gauge, to achieve low impedance power transfer. All power cables are twisted in pairs to minimize the electromagnetic interference.

The handmade multilayer output transformers allow the amplifier to reveal the sound stage and all the music details through the entire audio spectrum. Made by us and tested thoroughly for quality and reliability. The same applies to the power transformer. The positioning of the transformers is such that minimizes the magnetic coupling between power and output transformers.

Features

• Inputs: 1 line input
• Input connectors: RCA gold plated
• Speaker connectors: Ultimax
• Power supply capacitors: High quality Long life Capacitors
• Signal capacitors: Non inductive polypropelene film capacitors
• Power resistors: Carbon film 5% tolerance
• Power transformer: Handmade 250W each unit
• Output transformer: Handmade 8 layer windings
• Driving stage tubes: 1x6SL7, 1x EL34 each unit
• Power tubes: 1x300B each unit

Specifications

• Output Power: 2x8W
• Input impedance: 100 kOhm
• Output impedance: 6 Ohm
• Input sensitivity: 1V
• Signal to Noise Ratio (SNR): 83db
• Rise time: 4us at 10kHz
• Harmonic distortion: 2W at 1kHz 0.40%
• Frequency response: -3db 14Hz-50000Hz
• Power supply energy: 80Joule each unit
• Power consumption: 95W each unit
• Weight: 4.5 kg each unit
• Dimensions (WxDxH): 17x43x22 cm
