Οι Tsakiridis Devices Apollon 6550 ειναι ζευγος μονοφωνικων τελικων ενισχυτων Class AB1, ισχυος 2x90 wrms στα 8ohms, με 4x 6550 ο καθενας.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων, ανταλλαγων.

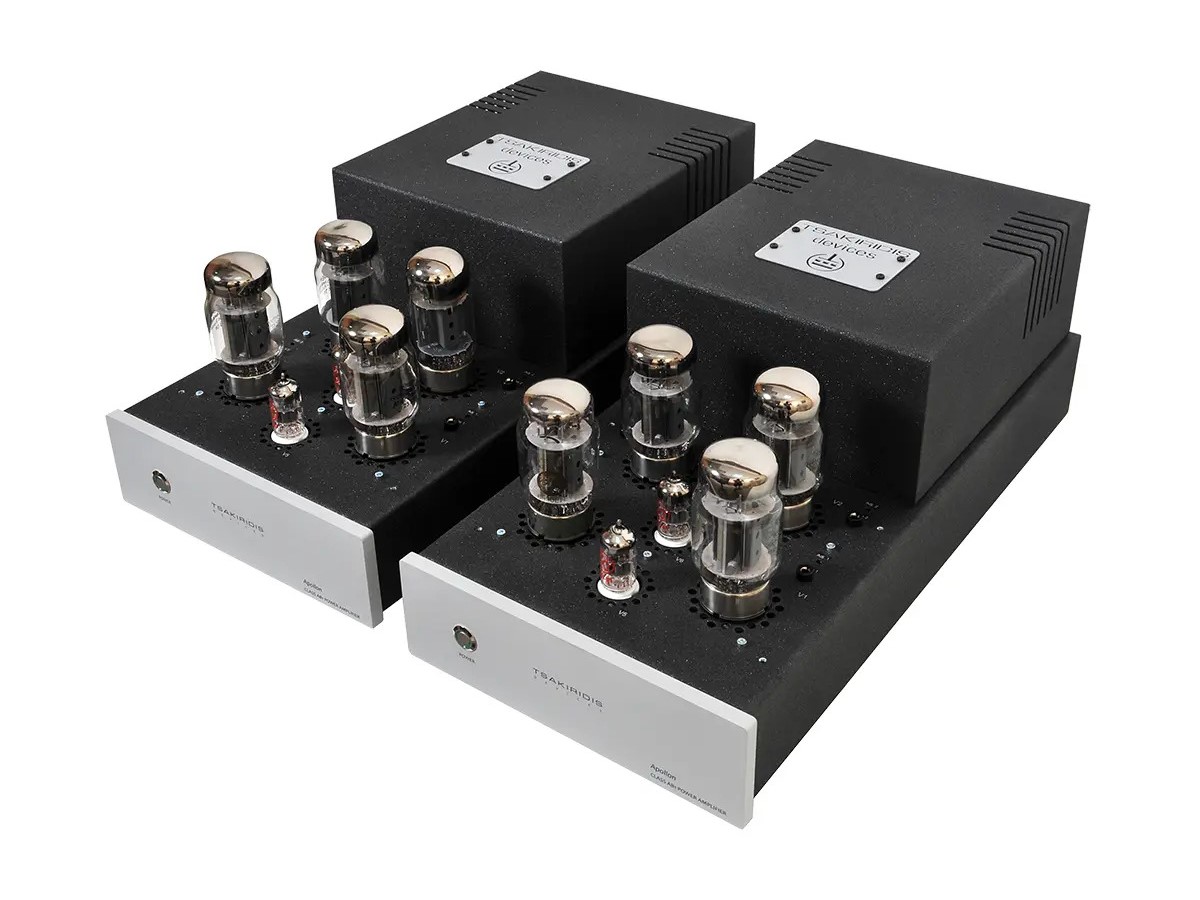

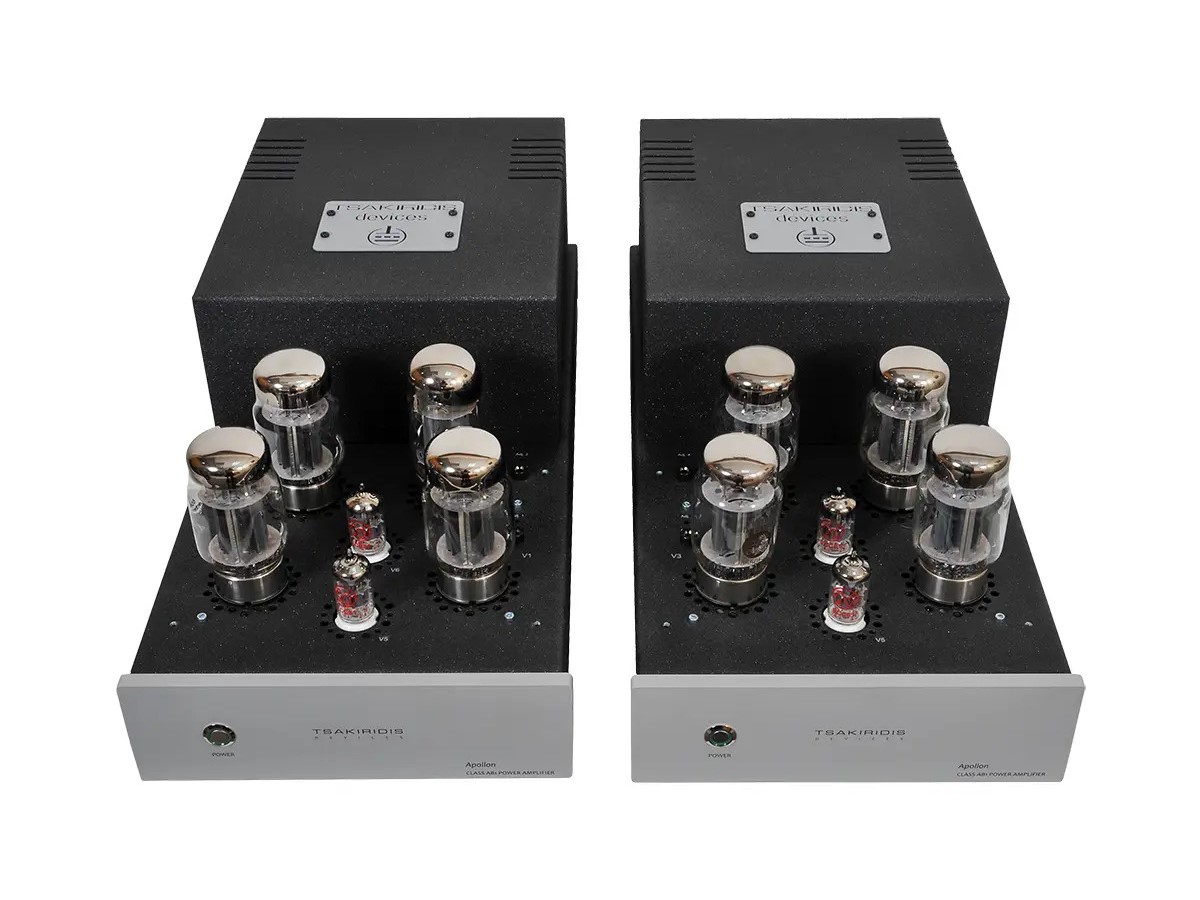

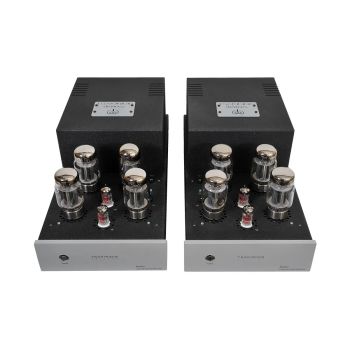

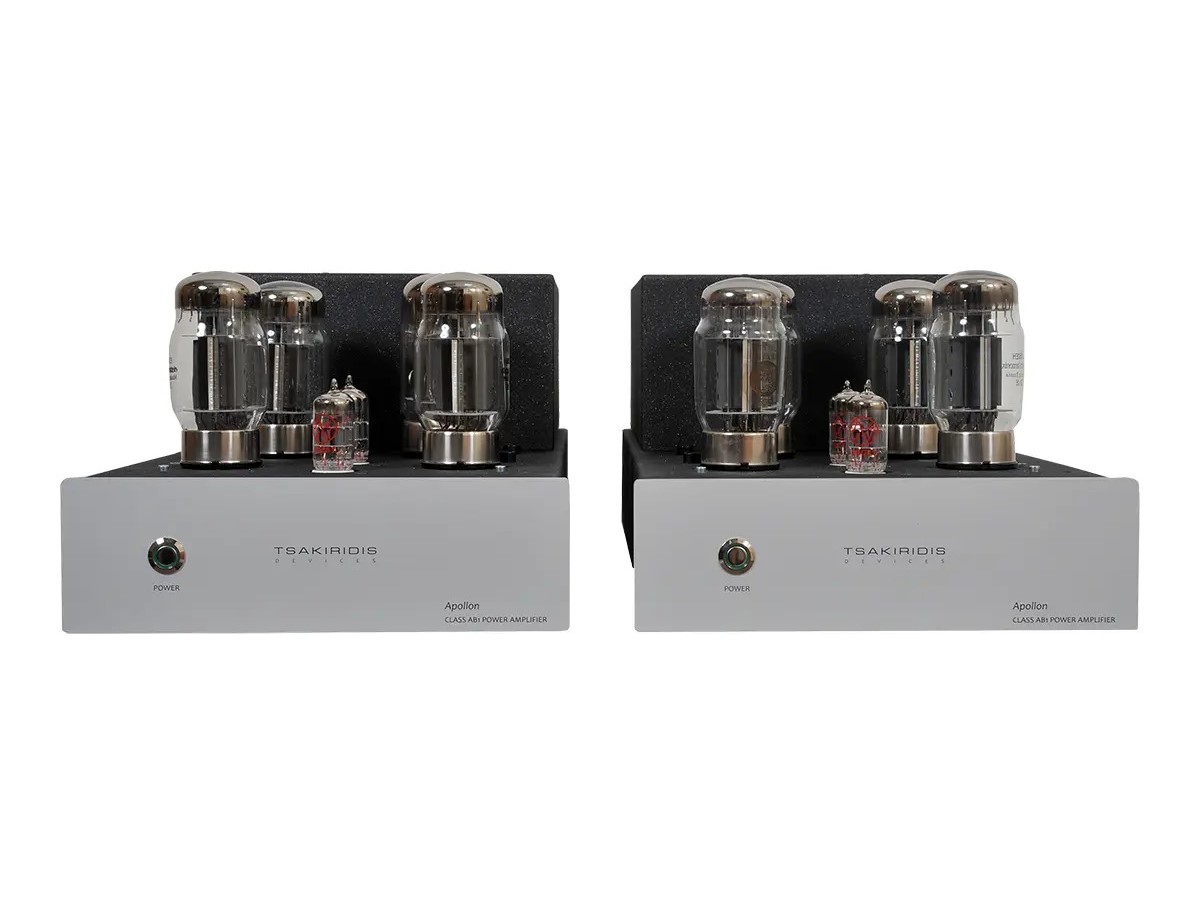

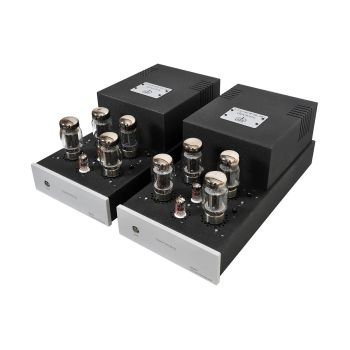

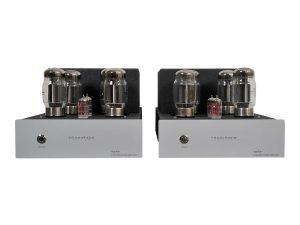

 Apollon Plus is a power amplifier in monoblock configuration. It’s design is a double push-pull implementing 4 power tubes per monoblock.
 All electronic components are through hole type soldered by hand.
Apollon Plus utilizes our 8 layer handmade output transformers for superb sound quality.

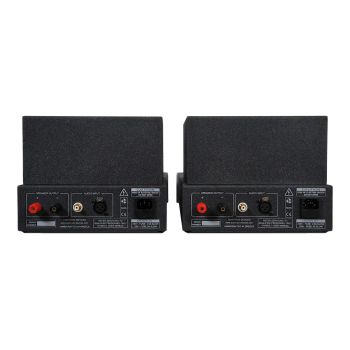

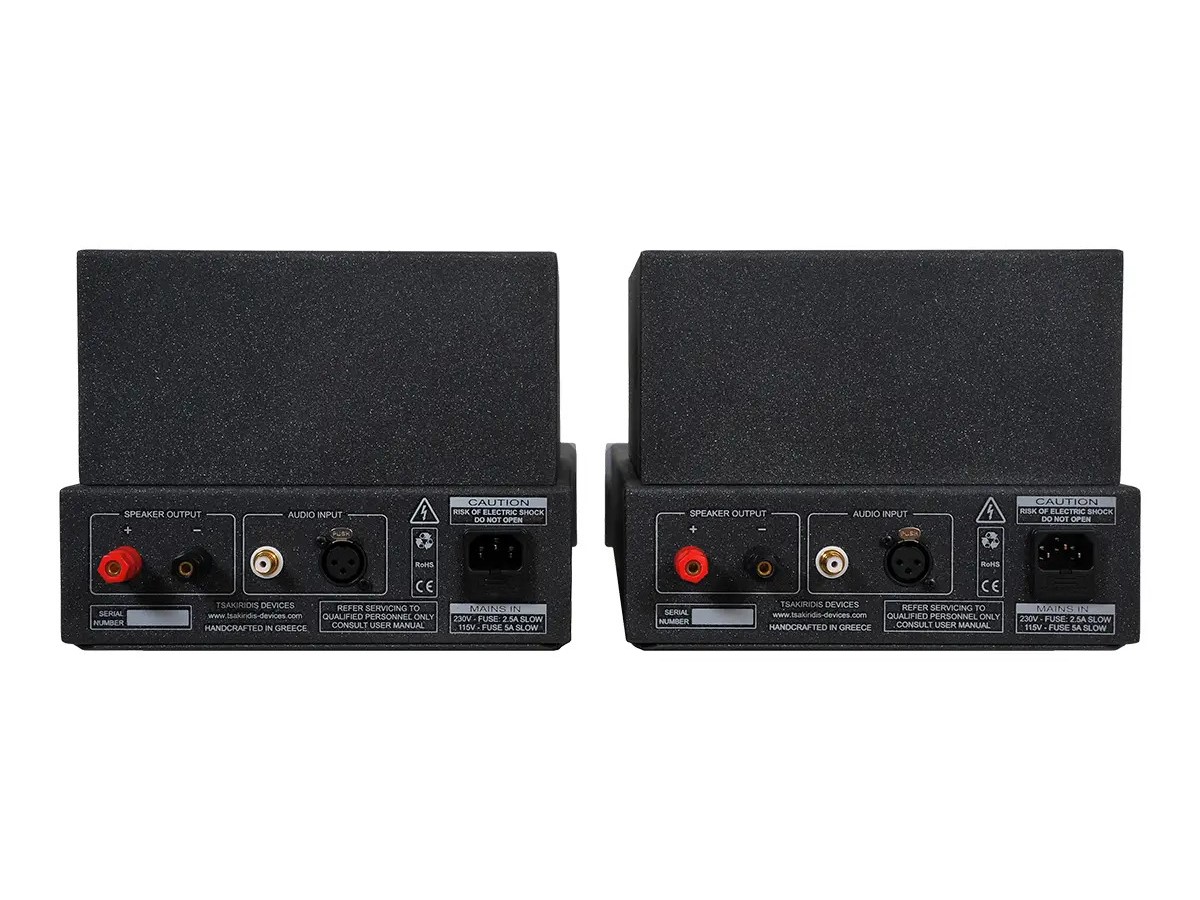

 Apollon implements a dual push-pull configuration for each channel allowing it to draw large amounts of power from the power tubes. So Apollon can drive easily power hungry loudspeakers. Gold plated RCA and XLR connectors are implemented for the signal input and high quality binding posts for the loudspeakers. The XLR balanced input is pseudo balanced. True balanced XLR input can be provided upon request. Carefully selected values and types of the electronic components contribute to the reliable circuits operation and the high sound quality of the amplifier.
 The meticulous PCB design ensures excellent behavior in SNR and distortion.
Inner signal wiring with high quality shielded signal cable. Power wiring uses high quality copper cables of more-than-needed AWG gauge, to achieve low impedance power transfer. All power cables are twisted in pairs to minimize the electromagnetic interference.

 The handmade multilayer output transformers allow the amplifier to reveal the sound stage and all the music details through the entire audio spectrum. Made by us and tested thoroughly for quality and reliability.
 The same applies to the power transformer. The positioning of the transformers is such that minimizes the magnetic coupling between power and output transformers.

Features

• Inputs: 1 line input
• Input connectors: RCA gold plated
• Speaker connectors: Ultimax
• Power supply capacitors: High quality Long life Capacitors
• Signal capacitors: Non inductive polypropelene film capacitors
• Power resistors: Carbon film 5% tolerance
• Low power resistors: Metal film 1% tolerance
• Power transformer: Handmade 300W each unit
• Output transformer: Handmade 8 layer windings
• Driving stage tubes: 2x12AT7 each unit
• Power tubes: 4×6550 each unit

Specifications

• Output Power: 2x90W
• Input impedance: 100 kOhm
• Output impedance: 6 Ohm
• Input sensitivity: 350mV
• Signal to Noise Ratio (SNR): 82db
• Rise time: 5us @ 10kHz
• Harmonic distortion: 10W @ 1kHz 0.40%
• Frequency response: -3db 8Hz-71000Hz
• Power supply energy: 300Joule each unit
• Power consumption: 180W each unit
• Weight: 20kgr each unit
• Dimensions (WxDxH): 24.5x53x23 cm
