Οι Tsakiridis Devices Apollon Ultima ειναι ζευγος μονοφωνικων τελικων ενισχυτων Class AB1, ισχυος 2x200 wrms στα 8ohms, με 4x KT170 ο καθενας. Διαθετει πυκνωτες Mundorf Supreme Silver Gold Oil, Rike Ausdio QCap4 Copper Oil, μεταχηματιστες 16 τυλιγματων απο χαλκο υπερυψηλης καθαροτητας 6Ν και ασημοκολληση WBT παντου.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων, ανταλλαγων.

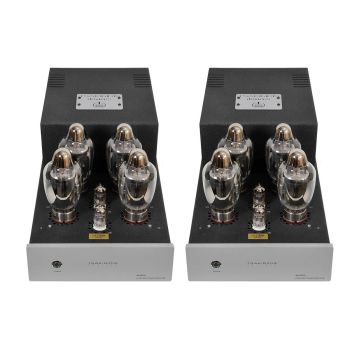

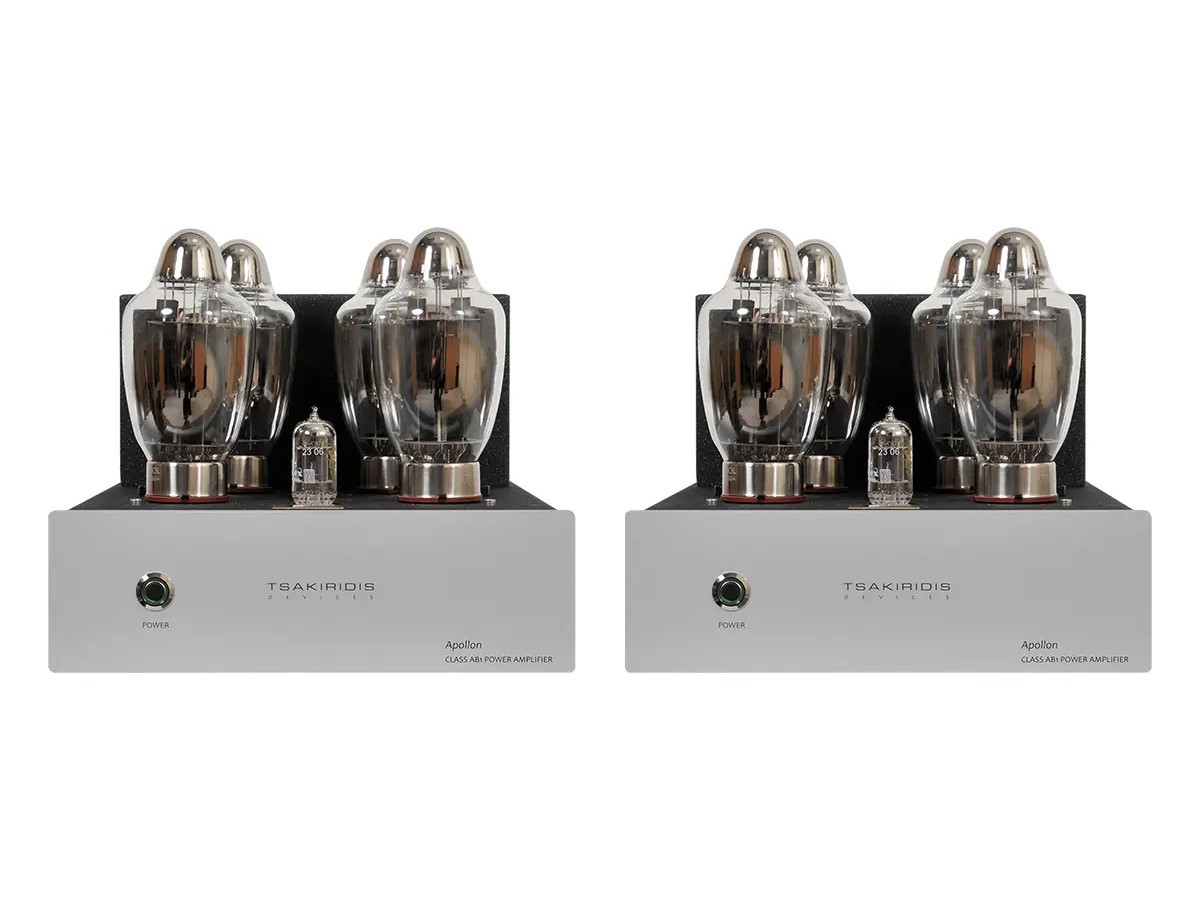

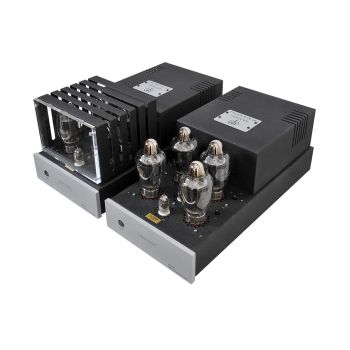

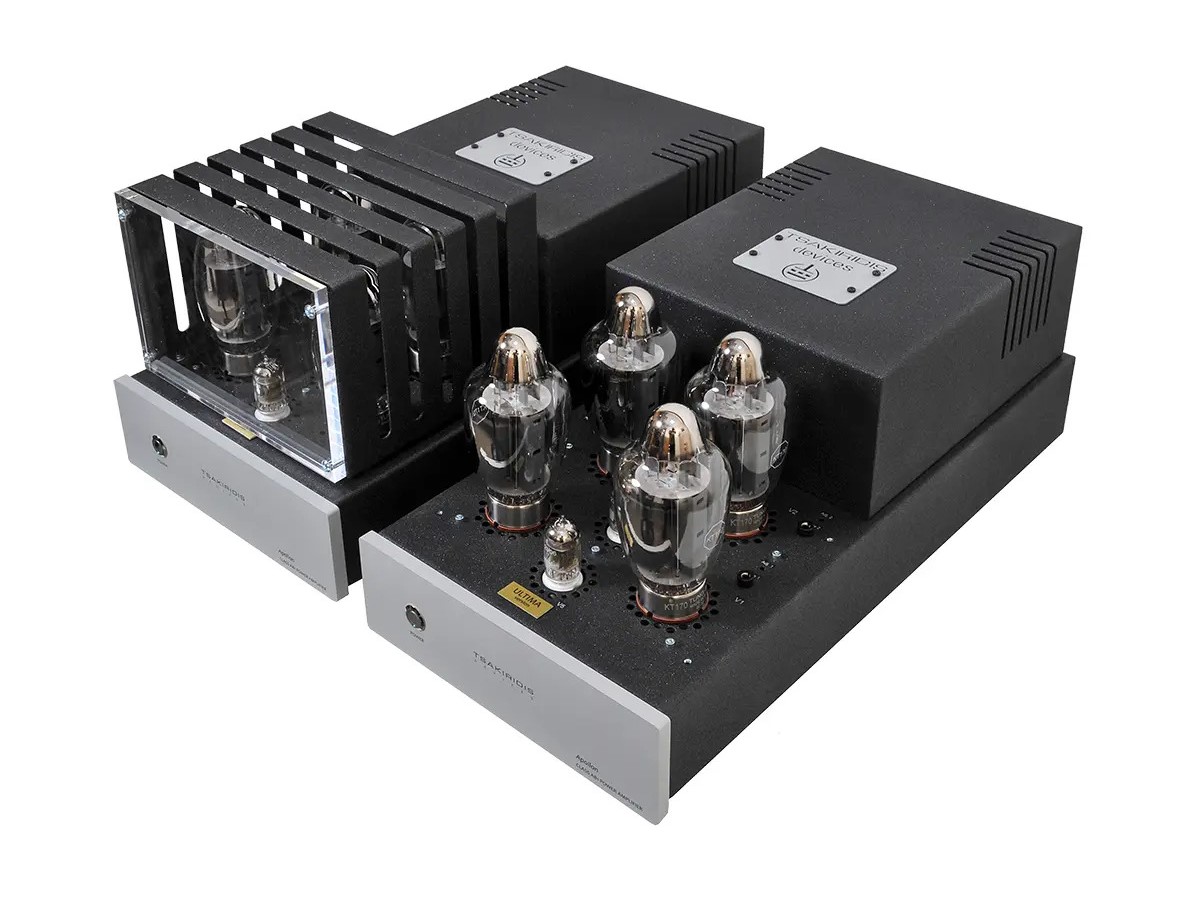

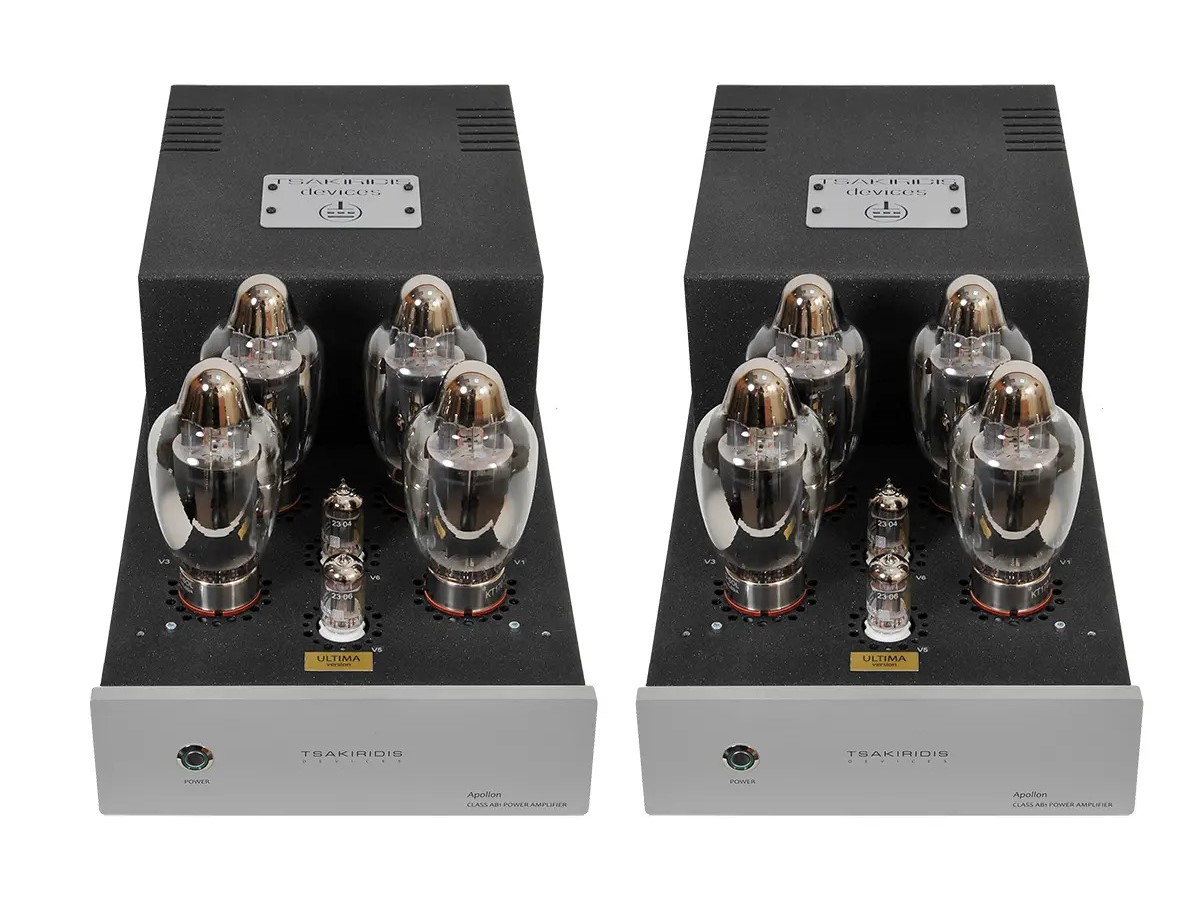

 Apollon Ultima is a power amplifier in monoblock configuration. It’s design is a double push-pull implementing 4 power tubes per monoblock.
 All electronic components are through hole type soldered by hand.
Apollon Ultima utilizes our top of the line 16 layer handmade output transformers with high quality core for superior sound quality.

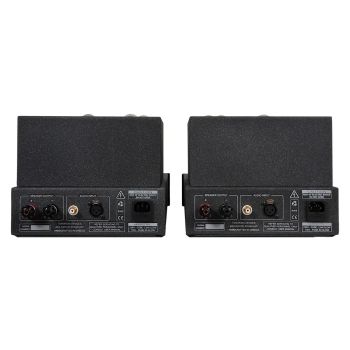

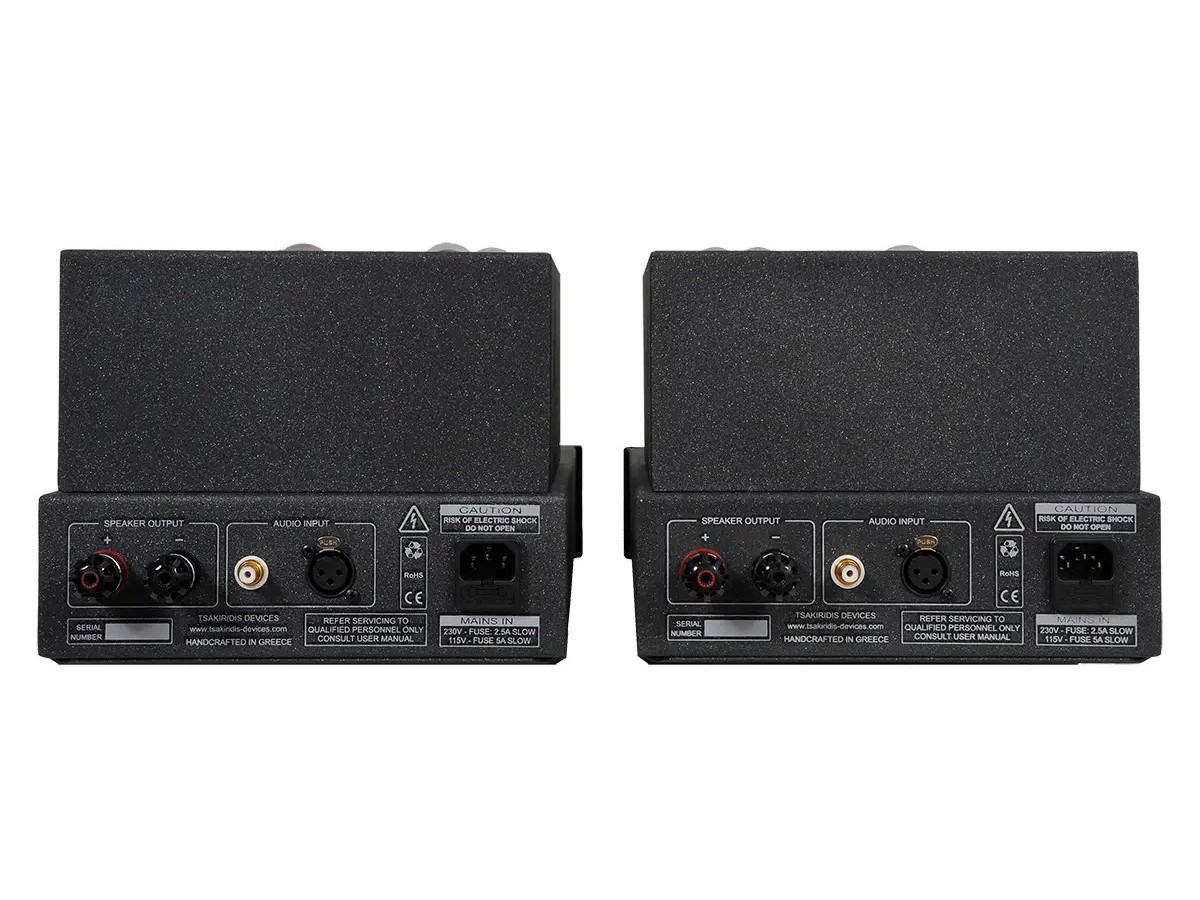

 Apollon Ultima implements a dual push-pull configuration for each channel allowing it to draw large amounts of power from the power tubes. So Apollon Ultima can drive easily power hungry loudspeakers. Gold plated RCA and XLR connectors are implemented for the signal input and WBT-0710 Next Gen binding posts for the loudspeakers. The XLR balanced input is pseudo balanced. True balanced XLR input can be provided upon request.

 Carefully selected values and types of the electronic components contribute to the reliable circuits operation and the high sound quality of the amplifier. Metal film power resistors and premium quality oil capacitors (Mundorf Supreme Silver Gold Oil – Rike Ausdio QCap4 Copper Oil) on the signal path are used in Apollon Ultima.

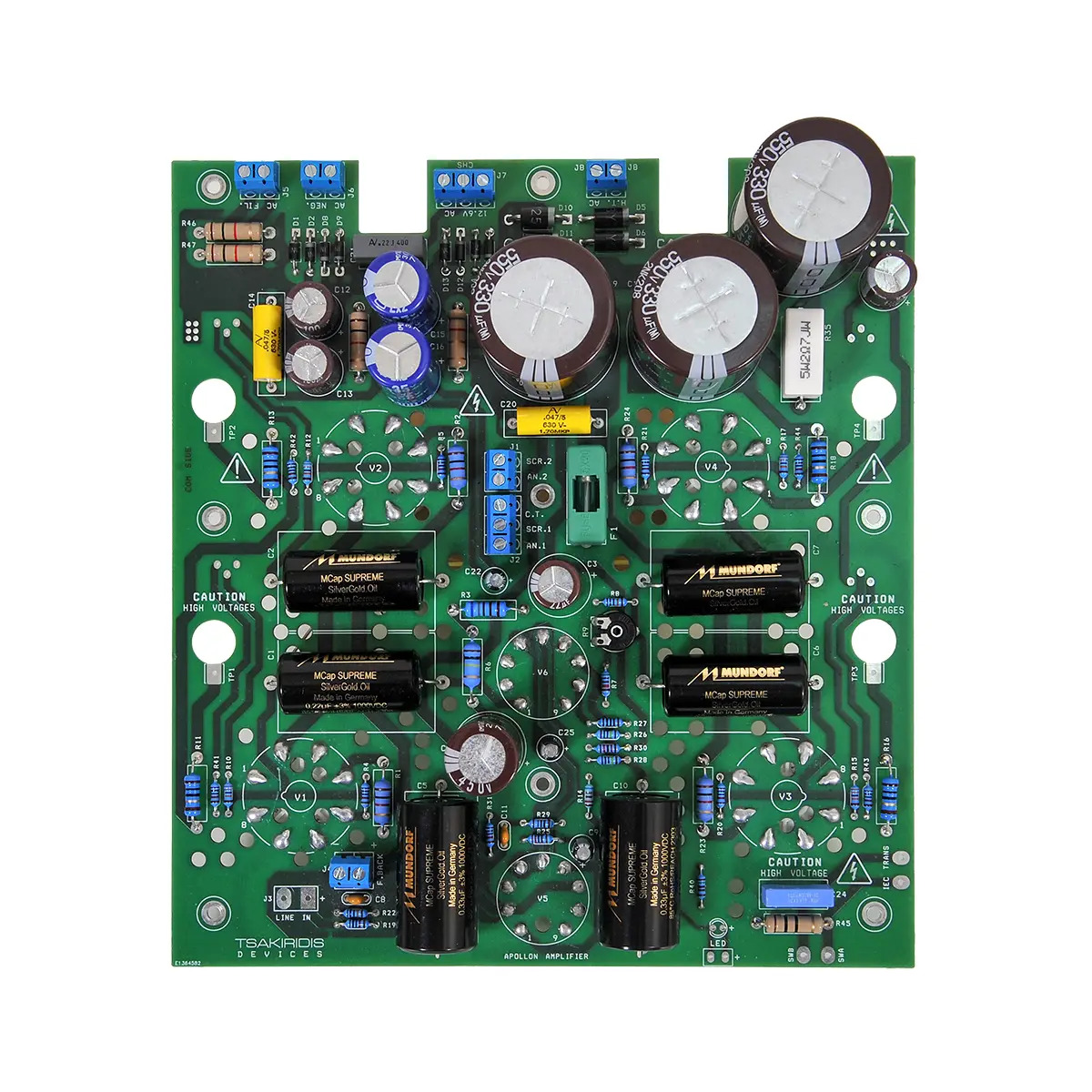

 The meticulous PCB design ensures excellent behavior in SNR and distortion.
 Inner signal wiring with high quality shielded signal cable. Power wiring uses high quality copper cables of more-than-needed AWG gauge, to achieve low impedance power transfer. All power cables are twisted in pairs to minimize the electromagnetic interference.

 The handmade 16 layer output transformers with high quality copper wire and core material enable the amplifier to reveal an excellent sound stage and the slightest music details through the entire audio spectrum to give you a unique audio experience. Made by us and tested thoroughly for quality and reliability.
 The same applies to the power transformer. The positioning of the transformers is such that minimizes the magnetic coupling between power and output transformers.

Features

• Inputs: 1 line input
• Input connectors: RCA gold plated
• Speaker connectors: WBT-0710 Next Gen
• Remote control: No
• Volume control: No
• Power supply capacitors: High quality Long life Capacitors
• Signal capacitors: High quality Oil Capacitors (Mundorf / Rike Audio)
• Power resistors: Metal film 5% tolerance
• Low power resistors: Metal film 1% tolerance
• Power transformer: Handmade 400W each unit
• Output transformer: Handmade 16 layer 6N copper with high quality core
• Driving stage tubes: premium quality 2x12AT7 each unit
• Power tubes: 4xKT170 each unit

Specifications

• Output Power: 2x200W
• Input impedance: 100 kOhm
• Output impedance: 6 Ohm
• Input sensitivity: 350mV
• Signal to Noise Ratio (SNR): 85db
• Channel separation: –
• Rise time: 6.2us @ 10kHz
• Harmonic distortion: 10W @ 1kHz 0.36%
• Frequency response: -3db 4Hz-78000Hz
• Power supply energy: 300Joule each unit
• Power consumption: 250W each unit
• Weight: 23 kg each unit
• Dimensions (WxDxH): (24.5x53x23 cm
