Οι Tsakiridis Devices Apollon Ultra ειναι ζευγος μονοφωνικων τελικων ενισχυτων Class AB1, ισχυος 2x140 wrms στα 8ohms, με 4x KT150 ο καθενας.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων, ανταλλαγων.

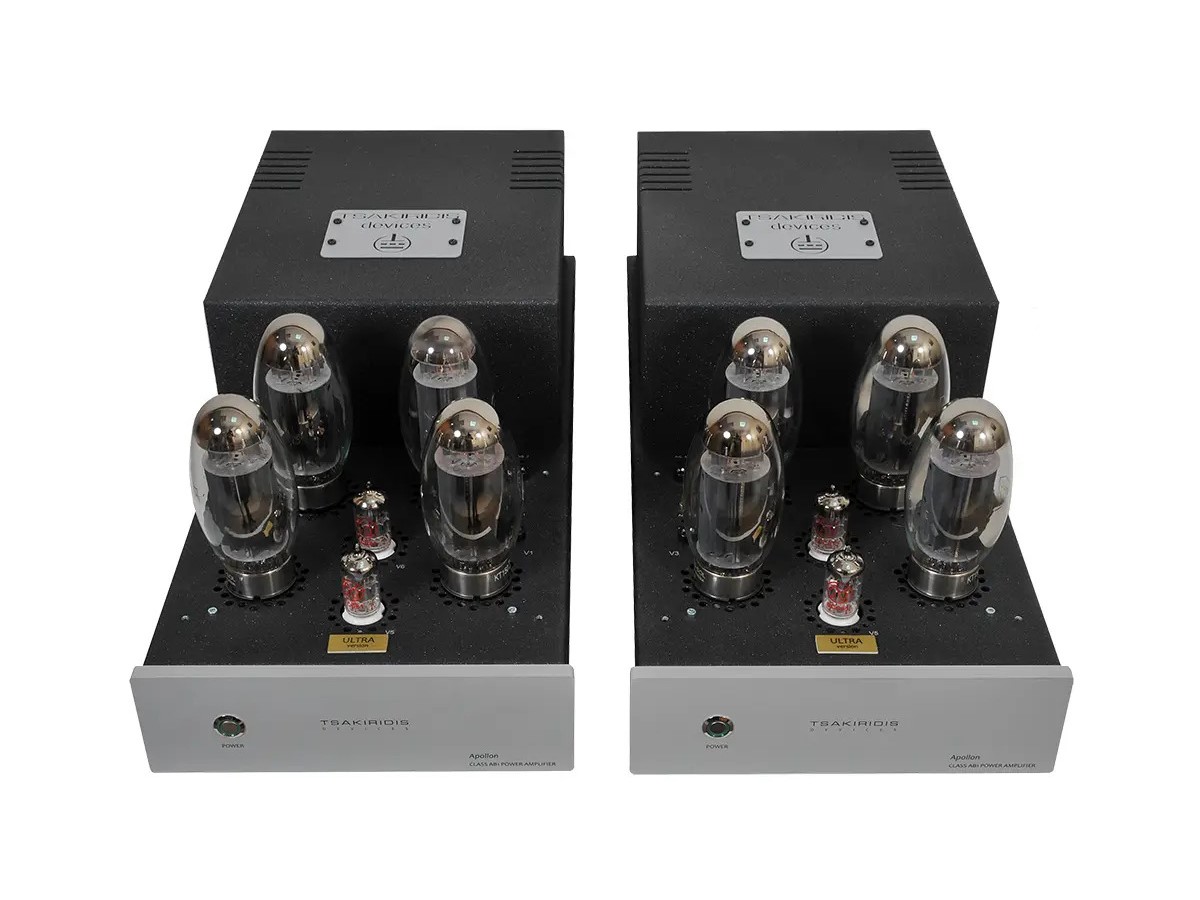

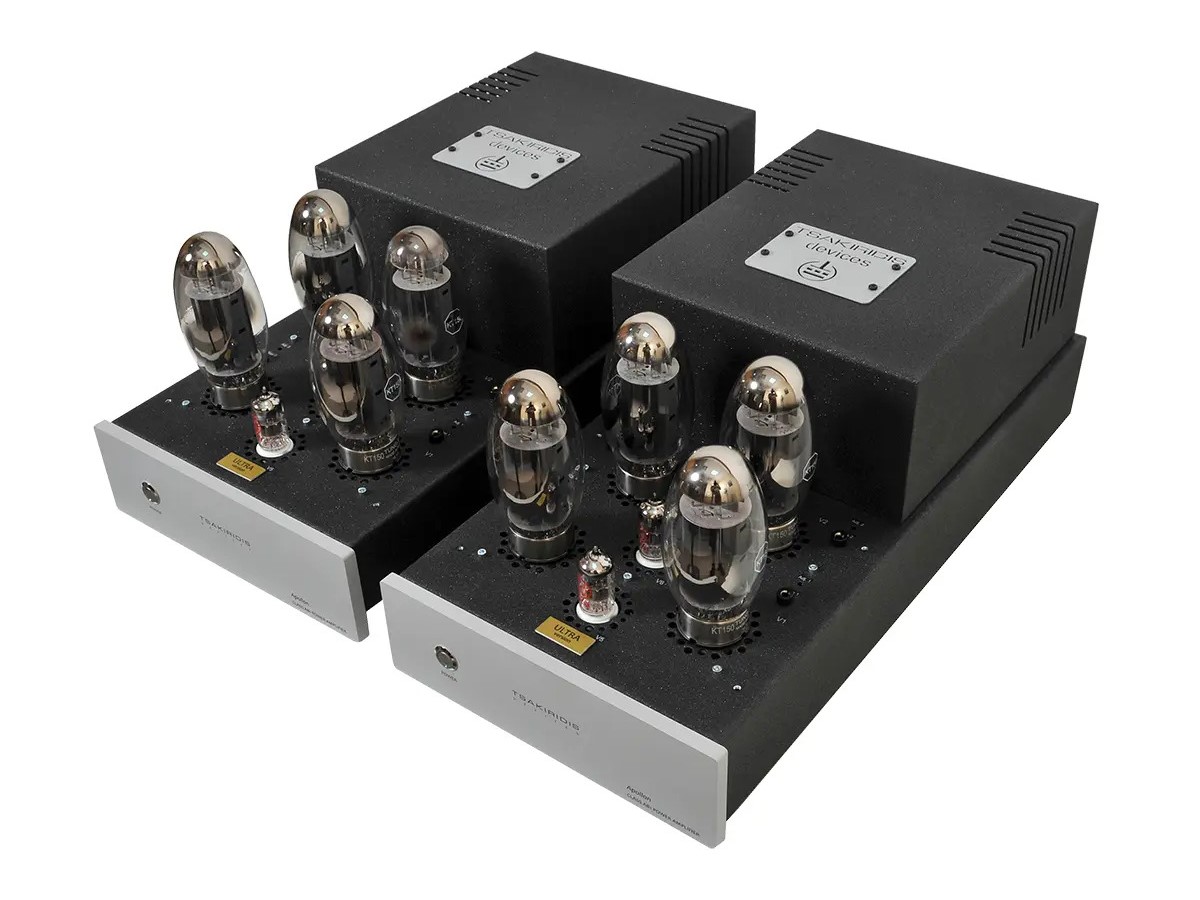

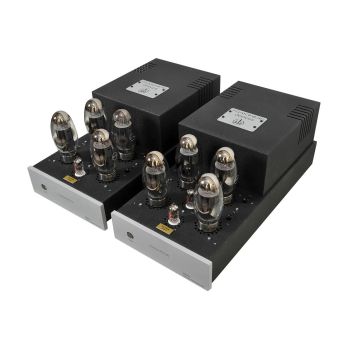

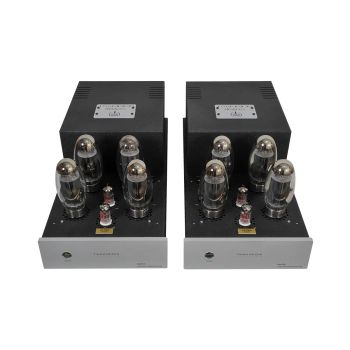

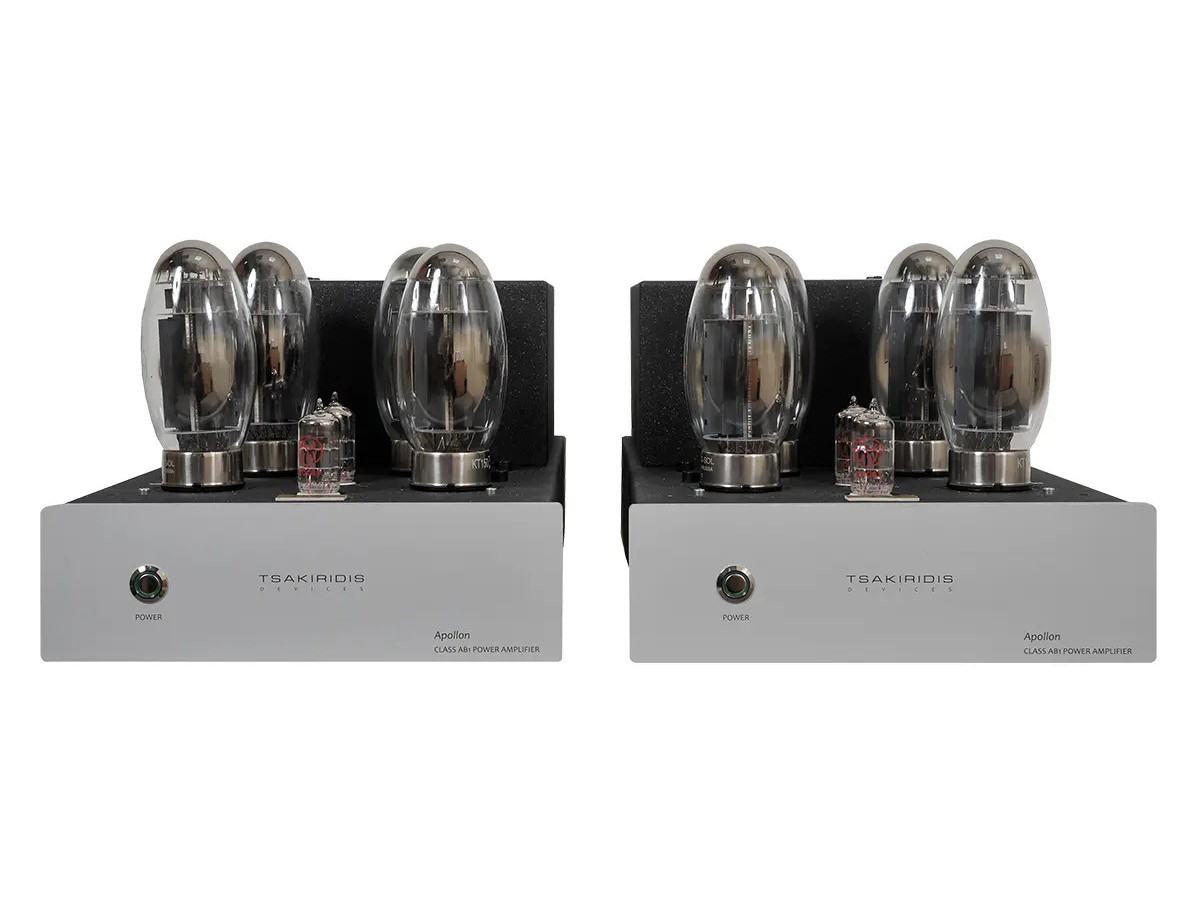

 Apollon Ultra is a power amplifier in monoblock configuration. It’s design is a double push-pull implementing 4 power tubes per monoblock.
 All electronic components are through hole type soldered by hand. Apollon Ultra utilizes our 8 layer handmade output transformers with high quality core for superb sound quality.

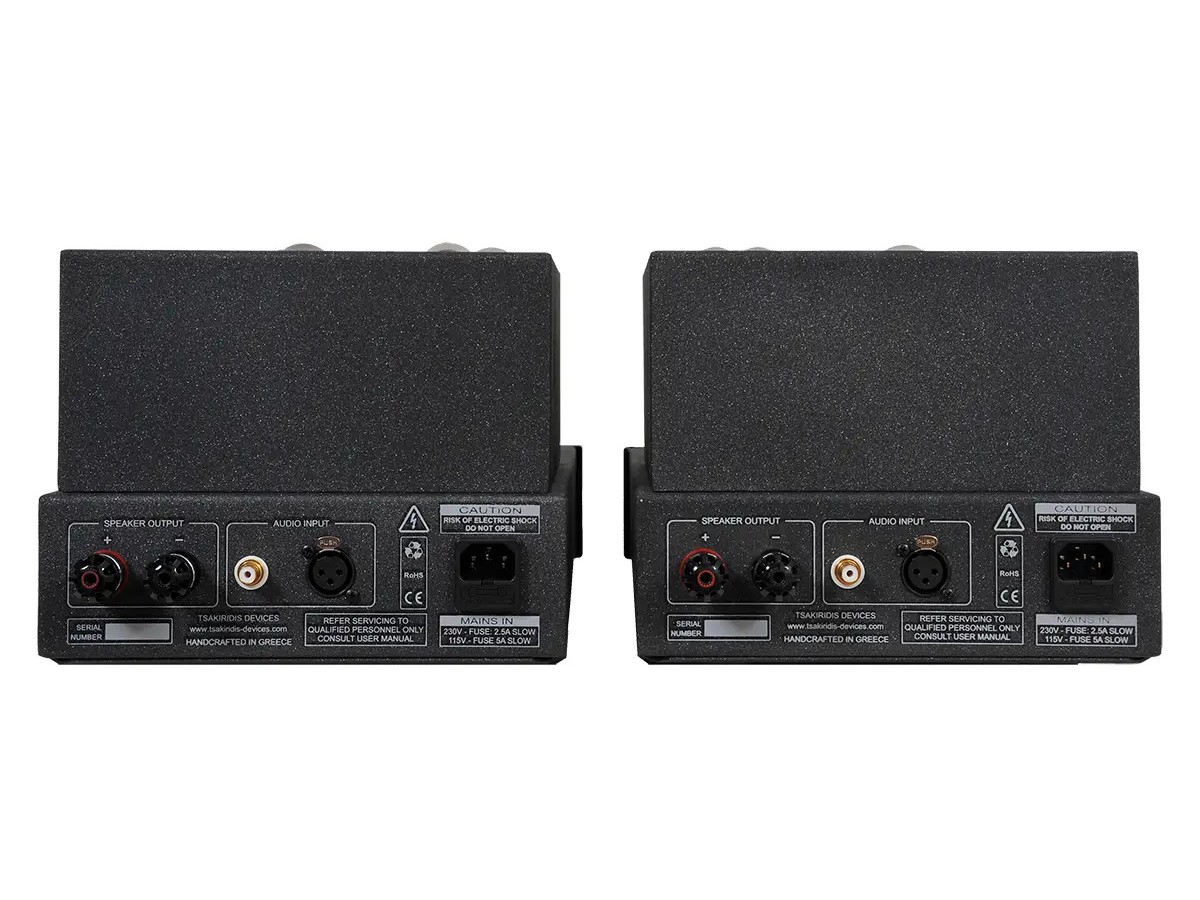

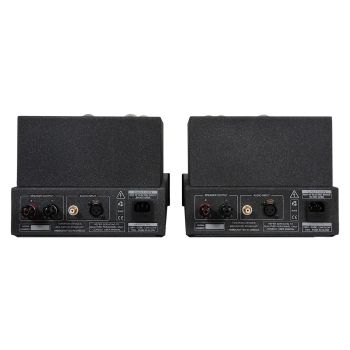

 Apollon Ultra implements a dual push-pull configuration for each channel allowing it to draw large amounts of power from the power tubes. So Apollon can drive easily power hungry loudspeakers. Gold plated RCA and XLR connectors are implemented for the signal input and WBT-0703 Next Gen binding posts for the loudspeakers. The XLR balanced input is pseudo balanced. True balanced XLR input can be provided upon request.
 Carefully selected values and types of the electronic components contribute to the reliable circuits operation and the high sound quality of the amplifier. Metal film power resistors and Jantzen superior-Z signal capacitors are used in Apollon Ultra. The meticulous PCB design ensures excellent behavior in SNR and distortion.
 Inner signal wiring with high quality shielded signal cable. Power wiring uses high quality copper cables of more-than-needed AWG gauge, to achieve low impedance power transfer. All power cables are twisted in pairs to minimize the electromagnetic interference.

 The handmade multilayer output transformers allow the amplifier to reveal the sound stage and all the music details through the entire audio spectrum. Made by us and tested thoroughly for quality and reliability.
 The same applies to the power transformer. The positioning of the transformers is such that minimizes the magnetic coupling between power and output transformers.

Features

• Inputs: 1 line input
• Input connectors: RCA gold plated
• Speaker connectors: WBT-0703 Next Gen
• Power supply capacitors: High quality Long life Capacitors
• Signal capacitors: Jantzen Audio Superior-Z capacitors
• Power resistors: Metal film 5% tolerance
• Low power resistors: Metal film 1% tolerance
• Power transformer: Handmade 400W each unit
• Output transformer: Handmade 8 layer windings with high quality core
• Driving stage tubes: 2x12AT7 each unit
• Power tubes: 4xKT150 each unit

Specifications

• Output Power: 2x140W
• Input impedance: 100 kOhm
• Output impedance: 6 Ohm
• Input sensitivity: 350mV
• Signal to Noise Ratio (SNR): 83db
• Rise time: 5.4us at 10kHz
• Harmonic distortion: 10W at 1kHz 0.40%
• Frequency response: -3db 8Hz-71000Hz
• Power supply energy: 300Joule each unit
• Power consumption: 210W each unit
• Weight: 22 kg each unit
• Dimensions (WxDxH): 24.5x53x23 cm
