Ο Tsakiridis Devices Artemis Ultima ειναι τελικος ενισχυτης ισχυος 2x70 wrms στα 8ohms, με 4x KT150. Διαθετει πυκνωτες Mundorf Supreme Silver Gold Oil, Rike Ausdio QCap4 Copper Oil, μεταχηματιστες 16 τυλιγματων απο χαλκο υπερυψηλης καθαροτητας 6Ν και ασημοκολληση WBT παντου.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων, ανταλλαγων.

 Artemis Ultima is a power amplifier in dual-mono configuration. It’s design is a push-pull configuration implementing 2 power tubes per channel in class AB1 operation.
 All electronic components are through hole type silver soldered by hand.
Artemis Ultima utilizes our top of the line 16 layer handmade output transformers with high quality core for superior sound quality.

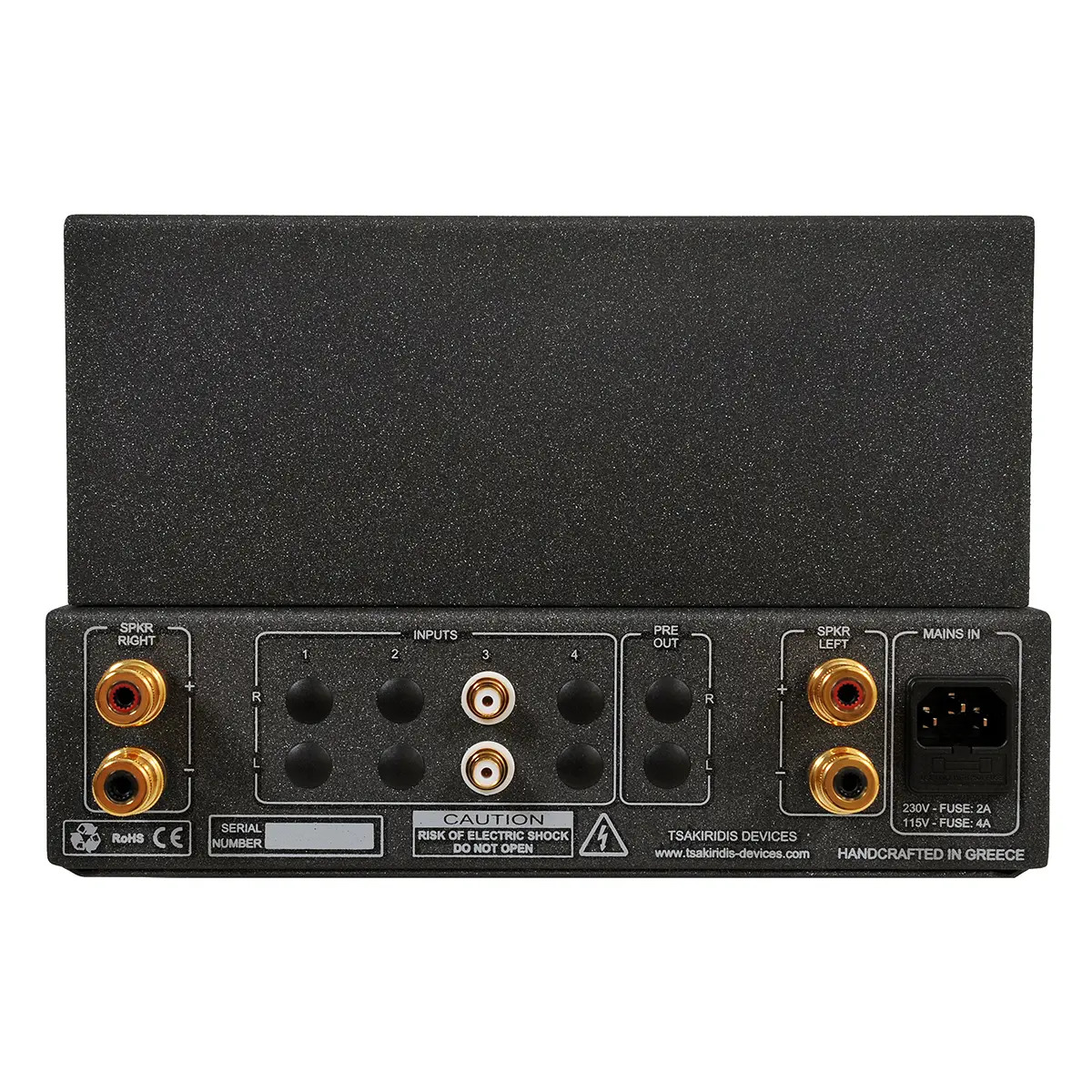

 The push – pull configuration of Artemis Ultima draws enough power from the output tubes to drive a wide range of loudspeakers. Gold plated RCA connectors are implemented for the signal input and WBT-710 Next Gen binding posts for the loudspeakers.

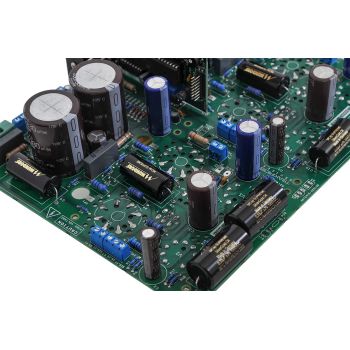

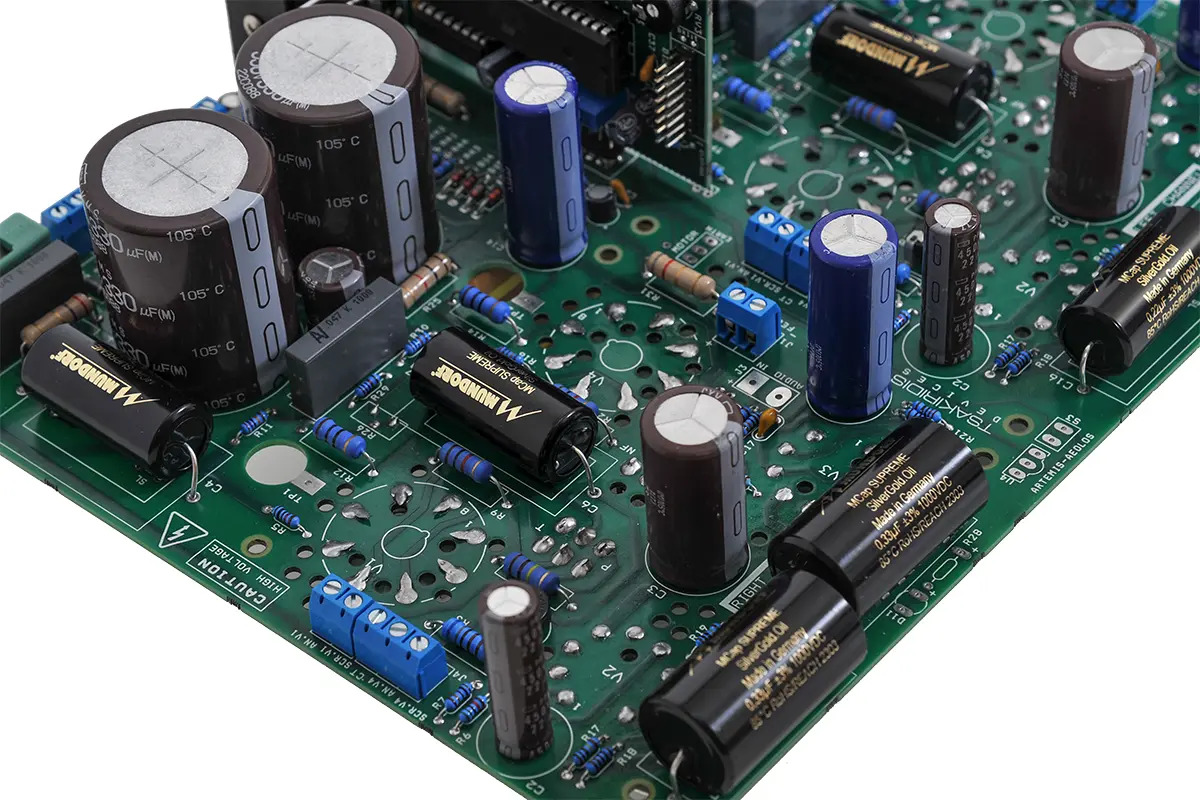

 Carefully selected values and types of the electronic components contribute to the reliable circuits operation and the high sound quality of the amplifier. Metal film power resistors and premium quality oil capacitors (Mundorf Supreme Silver Gold Oil – Rike Ausdio QCap4 Copper Oil) on the signal path are used in Artemis Ultima. The meticulous PCB design ensures excellent behavior in SNR, distortion and channel separation.

 Inner signal wiring with high quality shielded signal cable. Power wiring uses high quality copper cables of more-than-needed AWG gauge, to achieve low impedance power transfer. All power cables are twisted in pairs to minimize the electromagnetic interference.

 The handmade 16 layer output transformers with high quality copper wire and core material enable the amplifier to reveal an excellent sound stage and the slightest music details through the entire audio spectrum to give you a unique audio experience.
 Made by us and tested thoroughly for quality and reliability.
The same applies to the power transformer. The positioning of the transformers is such that minimizes the magnetic coupling between power and output transformers.

Features

• Inputs: 1 line input
• Input connectors: RCA gold plated
• Speaker connectors: WBT-0710 Next Gen
• Power supply capacitors: High quality Long life Capacitors
• Signal capacitors: High quality Oil Capacitors (Mundorf / Rike Audio)
• Power resistors: Metal film 5% tolerance
• Low power resistors: Metal film 1% tolerance
• Power transformer: Handmade 400W
• Output transformer: Handmade 16 layer 6N copper high quality core
• Driving stage tubes: Premium quality 4x12AT7
• Power tubes: 4xKT150

Specifications

• Output Power: 2x70W
• Input impedance: 100 kOhm
• Output impedance: 6 Ohm
• Input sensitivity: 350mV
• Signal to Noise Ratio (SNR): 87db
• Channel separation: 68db
• Rise time: 4.5us at 10kHz
• Harmonic distortion: 10W at 1kHz 0.35%
• Frequency response: -3db 3Hz-84000Hz
• Power supply energy: 200Joule
• Power consumption: 220W
• Weight: 23kgr
• Dimensions (WxDxH): 29x46x23 cm
