Ο Tsakiridis Devices Artemis ειναι τελικος ενισχυτης ισχυος 2x35 wrms στα 8ohms, με 4x EL34.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων, ανταλλαγων.

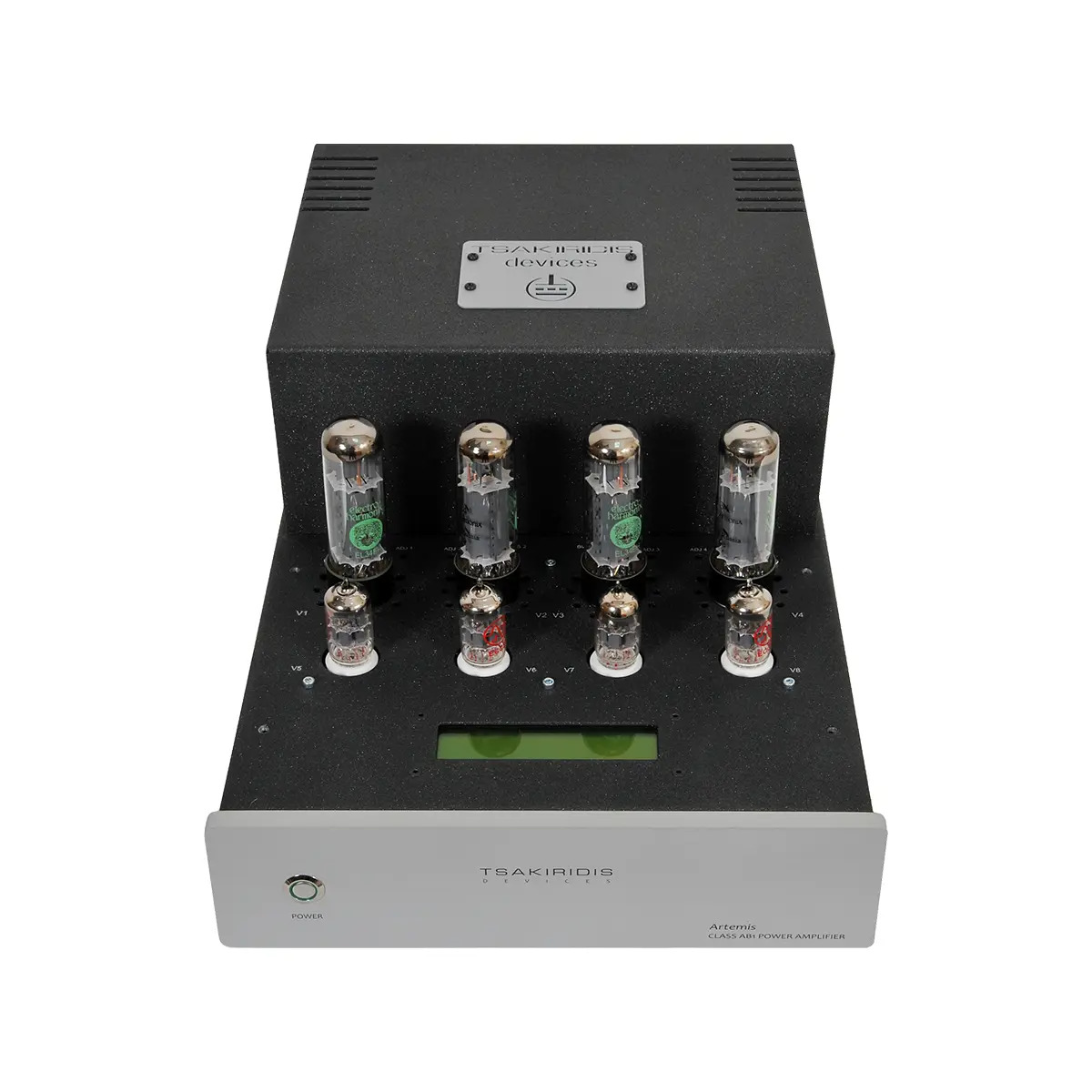

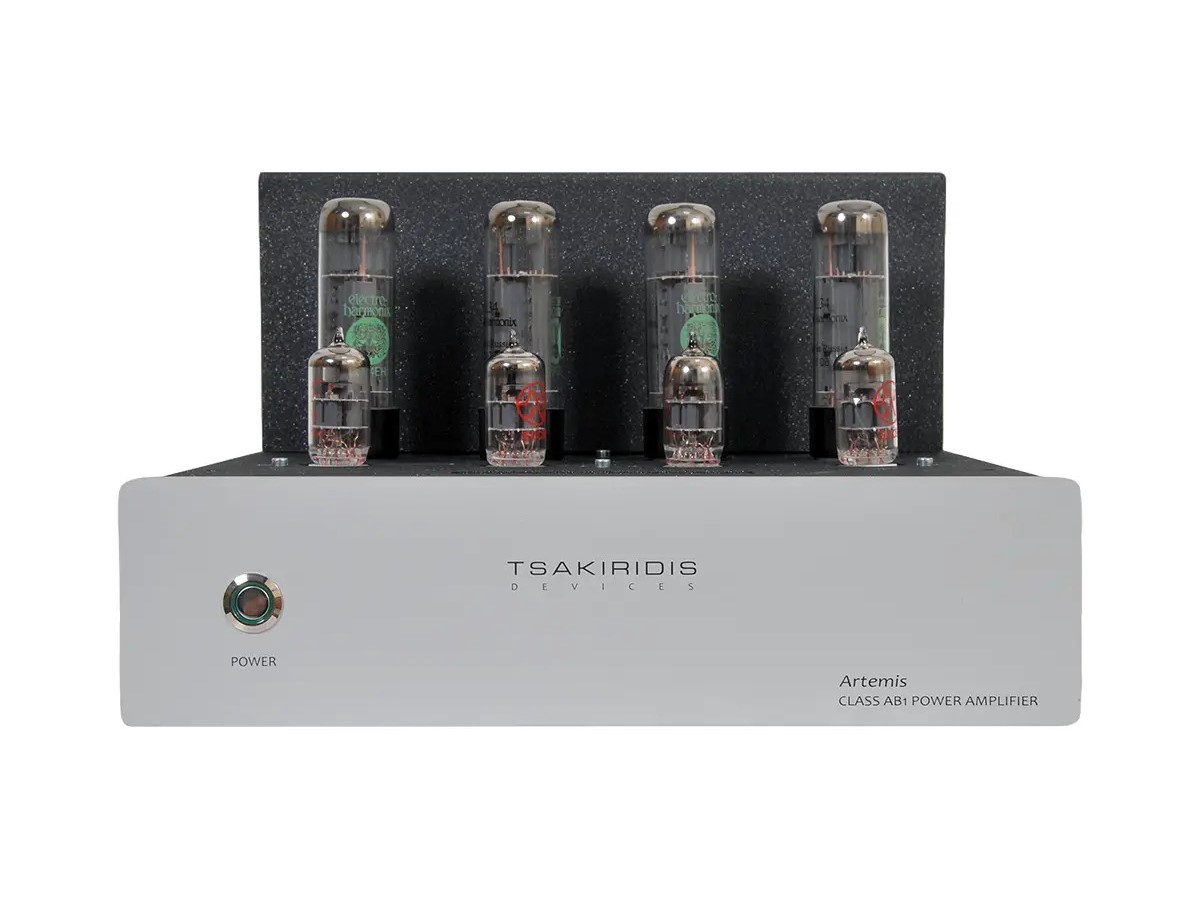

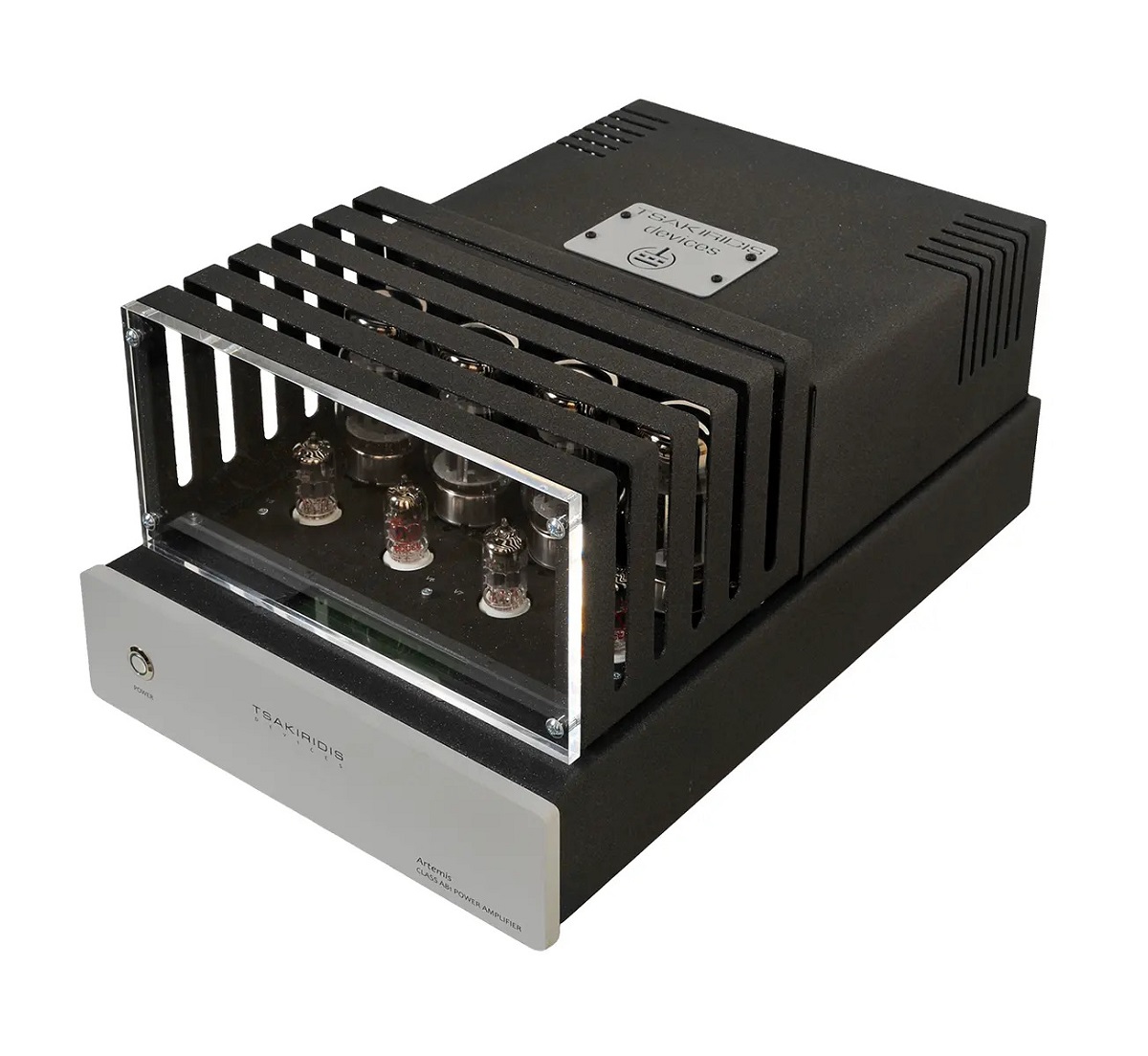

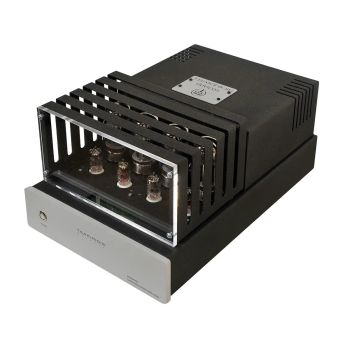

 Artemis is a power amplifier in dual-mono configuration. It’s design is a push-pull configuration implementing 2 power tubes per channel in class AB1 operation.
 All electronic components are through hole type soldered by hand. Artemis utilizes our 8 layer handmade output transformers for superb sound quality.

 The push – pull configuration of Artemis draws enough power from the output tubes to drive a wide range of loudspeakers. Gold plated RCA connectors are implemented for the signal input and high quality binding posts for the loudspeakers.

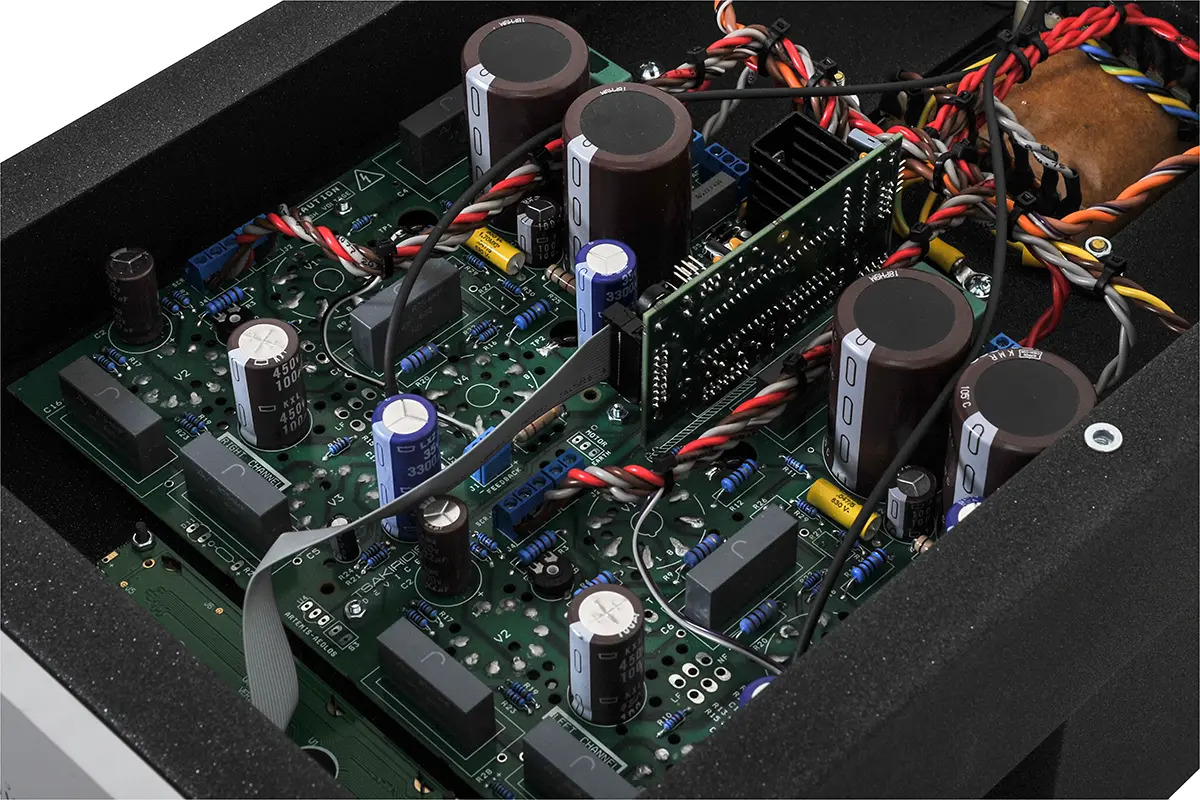

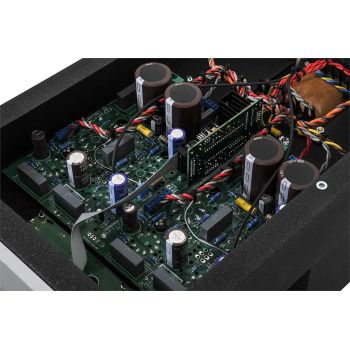

 Carefully selected values and types of the electronic components contribute to the reliable circuits operation and the high sound quality of the amplifier. The meticulous PCB design ensures excellent behavior in SNR, distortion and channel separation.
 Inner signal wiring with high quality shielded signal cable. Power wiring uses high quality copper cables of more-than-needed AWG gauge, to achieve low impedance power transfer. All power cables are twisted in pairs to minimize the electromagnetic interference.

 The handmade multilayer output transformers allow the amplifier to reveal the sound stage and all the music details through the entire audio spectrum. Made by us and tested thoroughly for quality and reliability.
The same applies to the power transformer. The positioning of the transformers is such that minimizes the magnetic coupling between power and output transformers.

Features

• Inputs: 1 line input
• Input connectors: RCA gold plated
• Speaker connectors: Ultimax
• Power supply capacitors: High quality Long life Capacitors
• Signal capacitors: Non inductive polypropelene film capacitors
• Power resistors: Carbon film 5% tolerance
• Low power resistors: Metal film 1% tolerance
• Power transformer: Handmade 300W
• Output transformer: Handmade 8 layer windings
• Driving stage tubes: 4x12AT7
• Power tubes: 4xEL34

Specifications

• Output Power: 2x35W
• Input impedance: 100 kOhm
• Output impedance: 6 Ohm
• Input sensitivity: 350mV
• Signal to Noise Ratio (SNR): 82db
• Channel separation: 68db
• Rise time: 4us at 10kHz
• Harmonic distortion: 10W at 1kHz 0.40%
• Frequency response: -3db 15Hz-72000Hz
• Power supply energy: 150Joule
• Power consumption: 110W
• Weight: 20kgr
• Dimensions (WxDxH): 29x46x23 cm
