Ο Tsakiridis Aeolos Ultima 6550 ειναι ολοκληρωμενος ενισχυτης  2x45 wrms με 4x6550. Κατασκευασμενος με τα καλυτερα υλικα, ΔΙΑΦΟΡΕΤΙΚΟΥΣ μετασχηματιστες εξοδου, δινει ηχο ασυγκριτα καθαρο χωρις να χανει ουτε στο ελαχιστο τα ηχοχρωματα της λαμπατης σχεδιασης.

Δυνατοτητα ακροασης, ανταλλαγης και δοσεων.

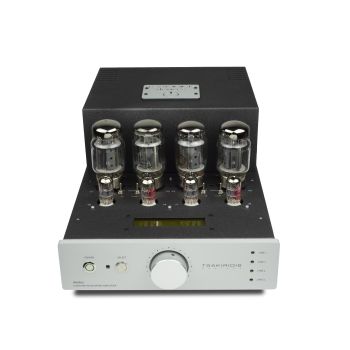

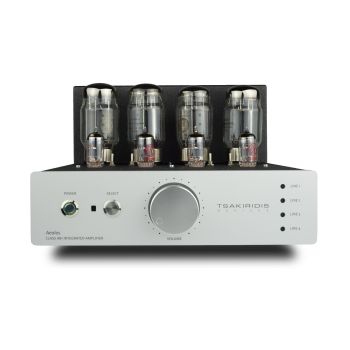

Aeolos is our best selling integrated amplifier. It offers everything the user needs in a compact and classic design. The push – pull configuration draws enough power from the output tubes to drive most loudspeakers. Gold plated RCA connectors are implemented for the signal inputs/output and WBT-0710 Next Gen binding posts for the loudspeakers.
For the volume control the classic blue Alps is used. An elegant remote control in aluminum case offers you control over all the functions of Aeolos integrated amplifier. Volume control, input selection, mute and power tubes bias mode.

Carefully selected values and types for the electronic components contribute to the reliable circuits operation and the high sound quality of the amplifier. Metal film power resistors and premium quality oil capacitors (Mundorf Supreme Silver Gold Oil – Rike Ausdio QCap4 Copper Oil) on the signal path are used in Aeolos Ultima. Along with premium quality tubes Aeolos Ultima achives a high-end sound quality. The meticulous PCB design ensures excellent behavior in SNR, distortion and channel separation. Inner signal wiring with high quality shielded signal cable. Power wiring uses high quality copper cables of more-than-needed AWG gauge, to achieve low impedance power transfer. All power cables are twisted in pairs to minimize the electromagnetic interference.

The handmade 16 layer output transformers with high quality copper wire and core material enable the amplifier to reveal an excellent sound stage and the slightest music details through the entire audio spectrum to give you a unique audio experience.
Made by us and tested thoroughly for quality and reliability. The same applies to the power transformer. The positioning of the transformers is such that minimizes the magnetic coupling between power and output transformers.

Features

• All Transformers are Hand Made with Ultralinear Multi 16-Layer Output.
• All Transformers have ideal aspect ratio (32:60)
• Ultra High Grade SilverGold Oil Mundorf Signal Capacitors.
• Silver soldered.
• Top quality cathode and grid resistors.
• Four (4) Inputs Rele's Line Selector with Tape Out.
• High Grade Selection Rele's.
• Matched Input & Output Tubes.
• Porcelain Tube Bases.
• Double Face Printing Circuit with Separate Signal & Power Path.
• Metal Film Resistors with Low Tolerance 1%.
• WBT-0710 Nextgen speaker connectors
• Five Years Guarantee.

Specifications

• Output Power: 2x45W
• Input impedance: 50 kOhm
• Output impedance: 6 Ohm
• Input sensitivity: 350mV
• Signal to Noise Ratio (SNR): 87db
• Channel separation: 68db
• Rise time: 4.5us at 10kHz
• Harmonic distortion: 10W at 1kHz 0.35%
• Frequency response: -3db 3Hz-84000Hz
• Power supply energy: 200Joule
• Power consumption: 220W
• Weight: 23kgr
• Dimensions (WxDxH): 29x46x23 cm
