Τα ATC SCM20SL ειναι ζευγος ηχειων 2 δρομων, με 1x 6" και 1x soft tweeter 1". Ευαισθησια 85db, διαχειριση ισχυος 75-300 Watts.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων, ανταλλαγων.

The SCM20PSL represents ATCs highest performing 2-way, stand-mount, passive loudspeaker. The model has been in continuous production since 1990 and has evolved through four driver/crossover revisions into its current form. Music and audio afficionados worldwide enjoy its special combination of clarity, balance, mid-range detail in combination with classic styling.

Its' 2-way crossover network is hand-made by ATC using very high-quality film capacitors and ATC's own air-cored inductors, employed for their lack of hysteresis and lower distortion. Input to the crossover is made via heavy duty bi-wire terminals.

The loudspeaker is ideally paired with ATC pre/power/integrated amplifiers. However, their neutral fidelity, outstanding resolution and modest load impedance also ensures excellent compatibility with a very wide range of quality electronics.

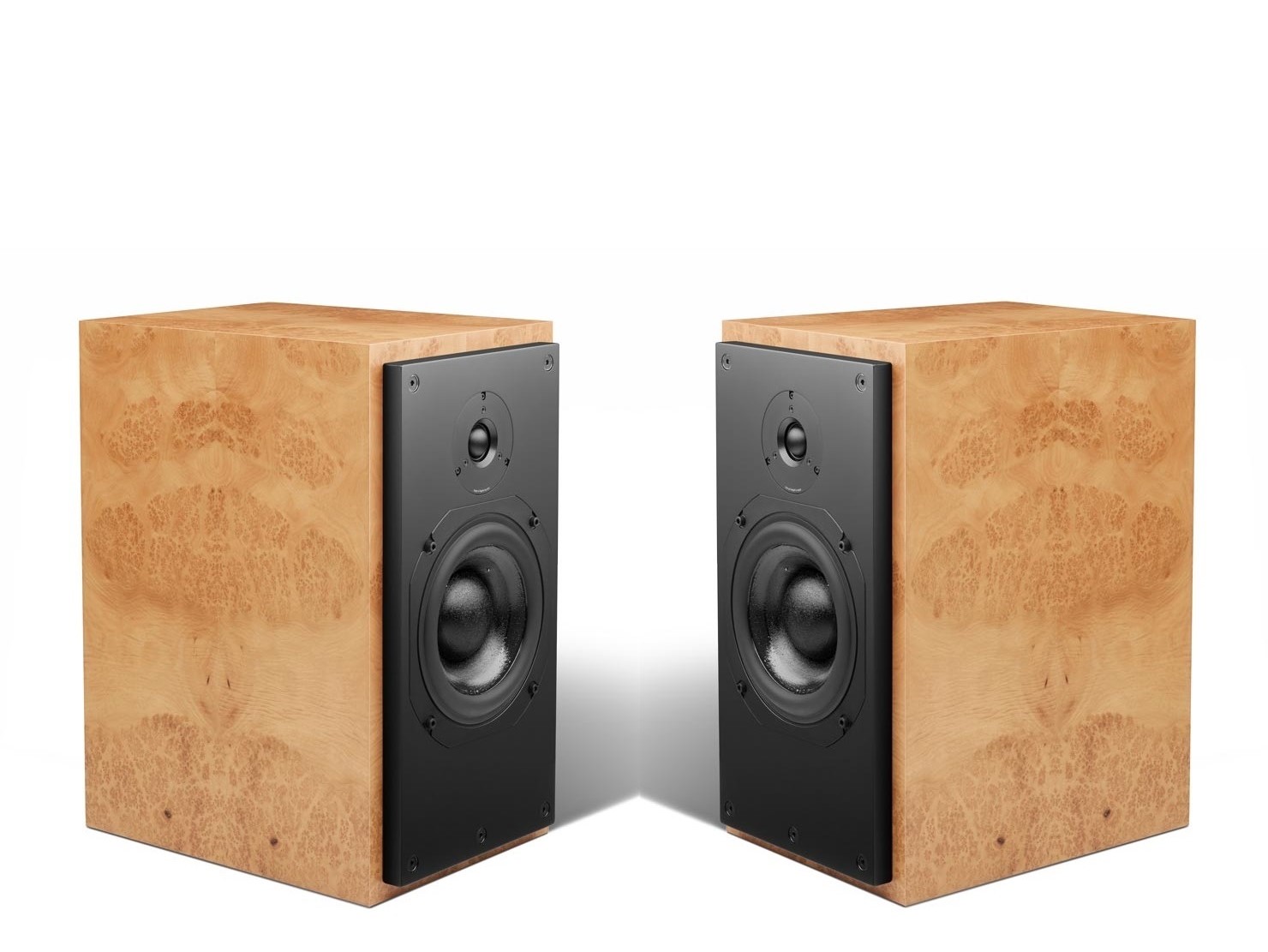

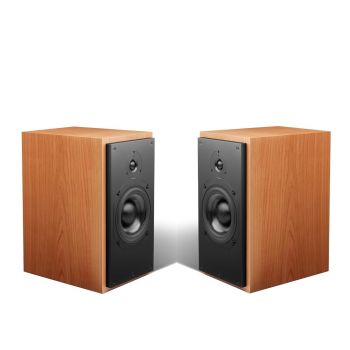

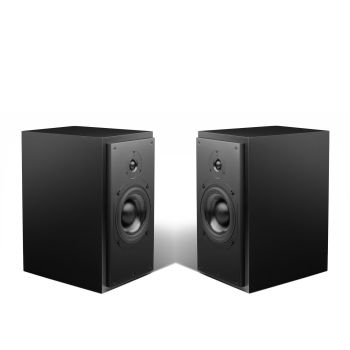

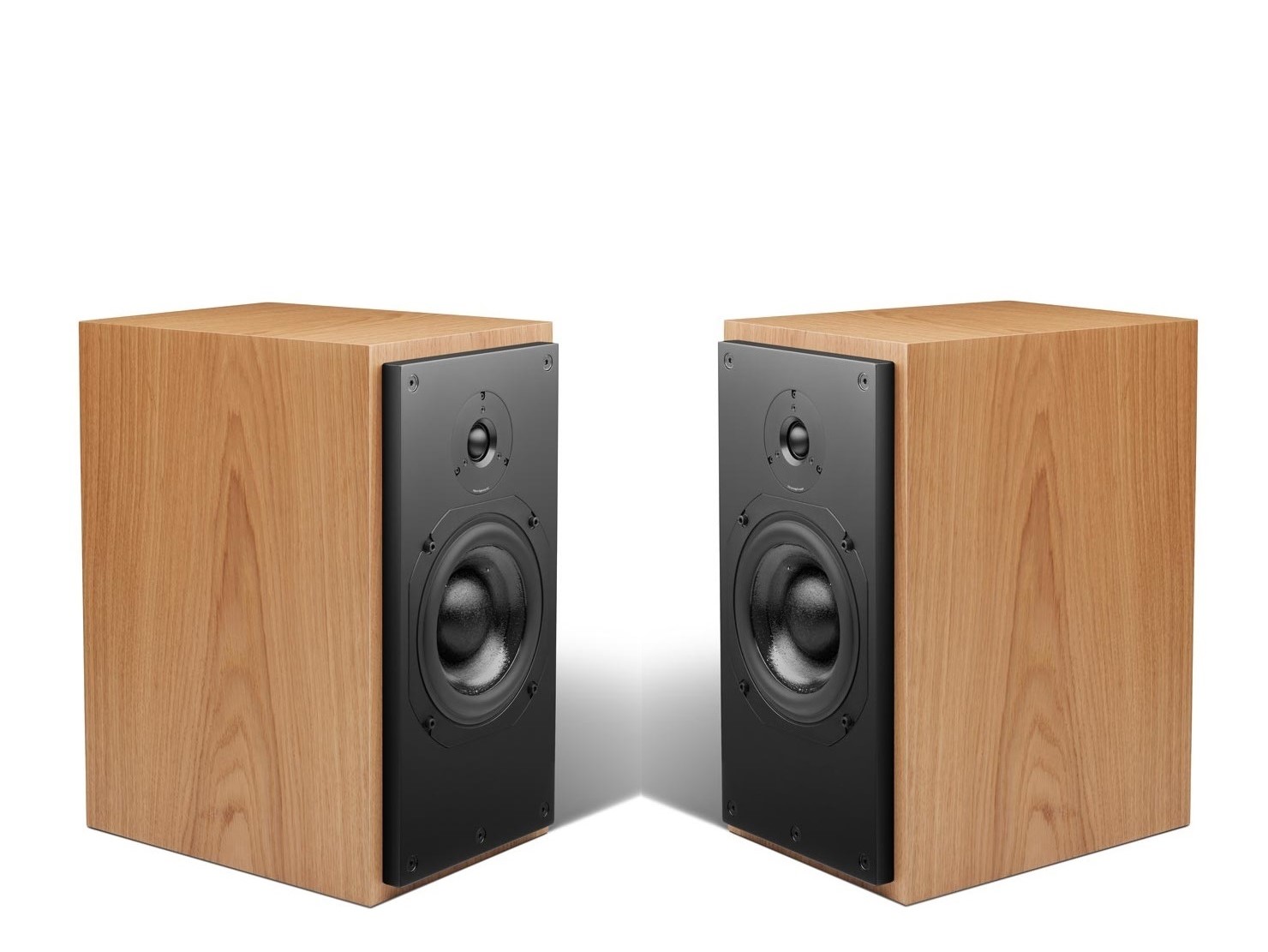

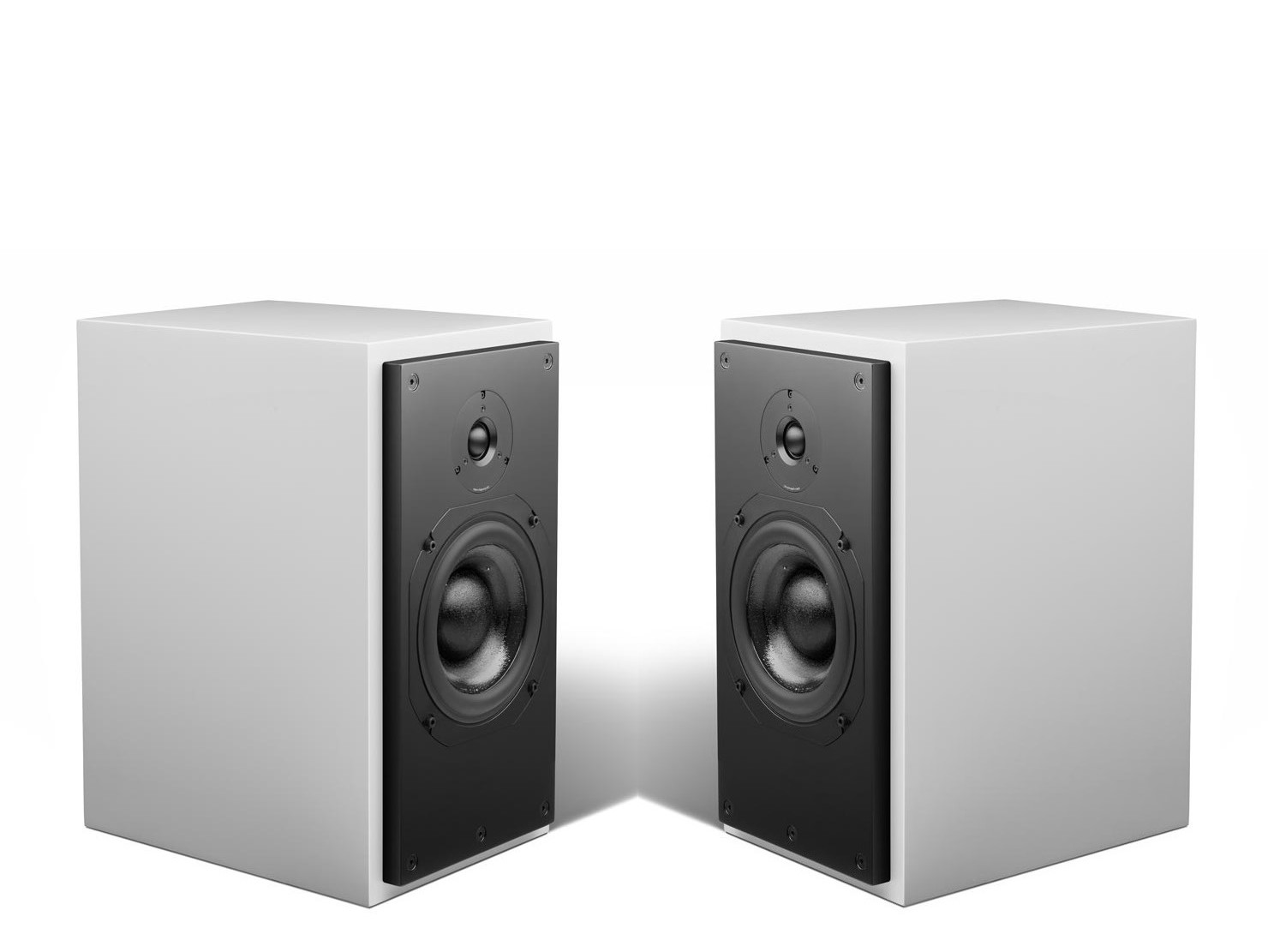

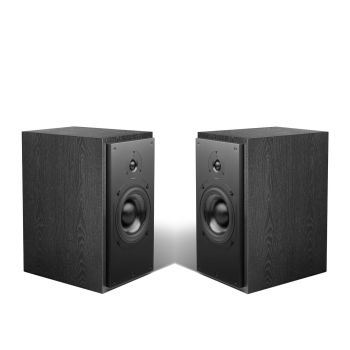

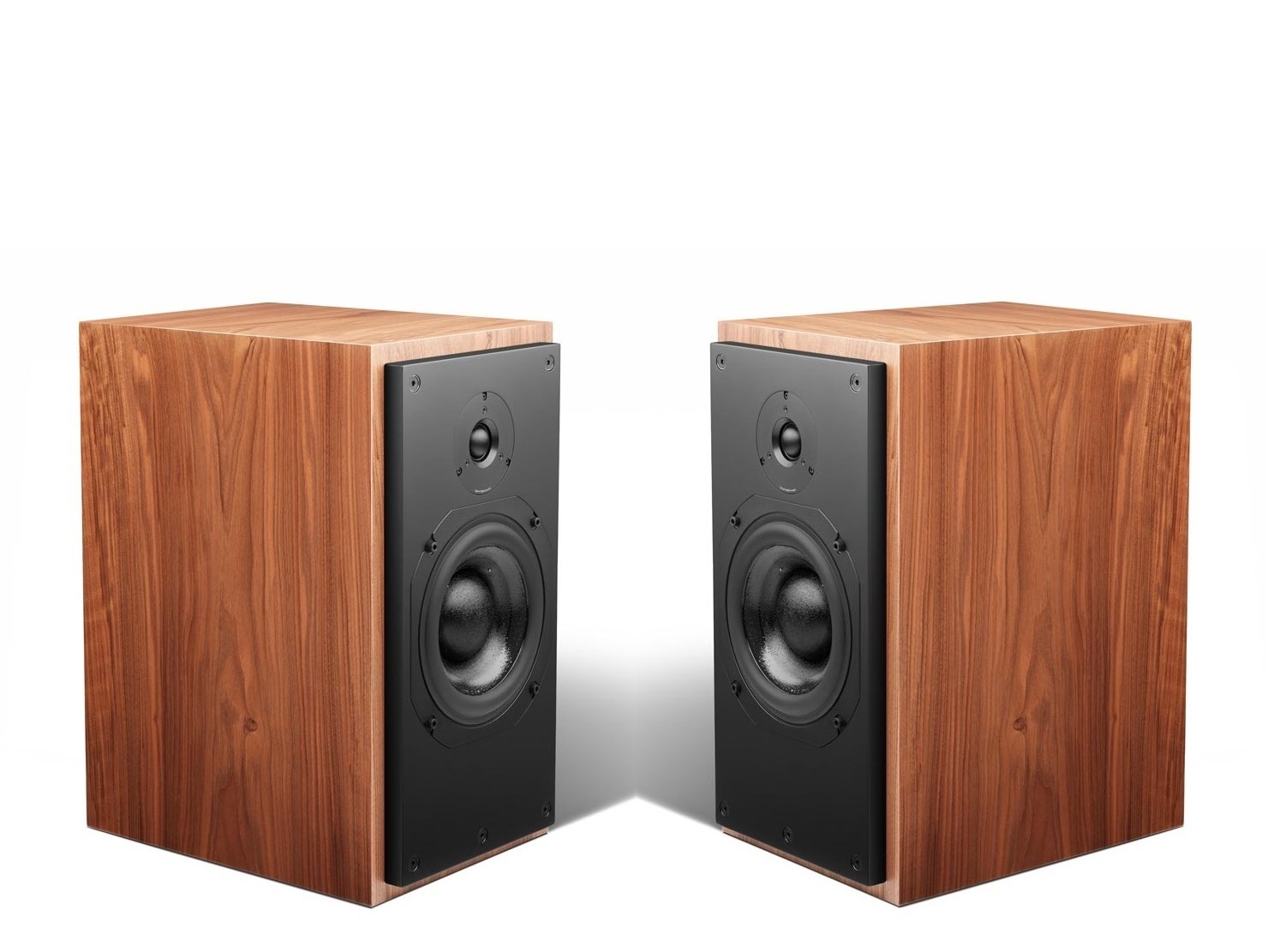

The cabinet is constructed to be heavy and inert with a combination of bracing for stiffness and damping to supress resonance. Bitumastic damping panels are deployed at critical positions to minimise cabinet colouration. It is available in a wide range of finishes.

Features

• 150mm/6" ATC 'Super Linear mid/bass driver loaded in a compact sealed cabinet.
• 25mm/1" ATC 'S-Spec' soft-dome dual-suspension HF driver.
• 2nd order crossover network employing film capacitors and air-cored inductors.
• Bi-wire inputs.
• Hand-built in England.
• 6 year warranty.

Specifications

• Mid/Bass Driver: 1 × 150 mm (6″), SB75-150SL, 8 Ω
• High Frequency Driver: 1 × 25 mm (1″), SH25-76S, 6 Ω
• Low Frequency Cut-off: 55 Hz (-6 dB, anechoic)
• High Frequency Cut-off: 25 kHz (-6 dB)
• Matched Response: ±0.5 dB
• Crossover Point: 2.2 kHz
• Max SPL
• 108 dB continuous
• 114 dB peak (per pair, IEC weighted pink noise, 1 m, anechoic)
• System Sensitivity: 85 dB (1 W @ 1 m)
• Electronic Specifications
• Recommended Power Amplifier: 75 – 300 W
• Impedance: 8 Ω nominal / 5.5 Ω minimum
• Net Weight: 16.9 kg
• Dimensions (H × W × D): 440 × 239 × 325.5 mm
